Cannon type connectors

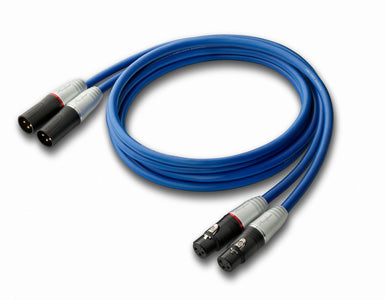

To accommodate equipment with Cannon (XLR) type connectors, Accuphase offers these cables with 3-pin Cannon type XLR connectors. In compliance with the BTS standard, pin is connected to the shield.
The Accuphase Oxygen-Free Copper Series cables use a densely braided outer conductor of oxygen-free copper, reliably shielding the two twisted internal conductors also made of highly pure copper. The result is a high-quality cable with negligible transfer losses and excellent resistance to induced noise. The superb performance of these cables ensures that the sonic character of top-quality audio components connected in a system is fully preserved. Listeners are able to enjoy utterly natural, well-balanced sound that gives free expression to the full musical spectrum.
- Center conductor core wires are a combination of highly pure oxygen-free copper wires and silver-plated soft copper wires, providing excellent transfer characteristics.
- Center conductors are formed by a combination of two types of highly pure oxygen-free copper wires of different diameter and a silver-plated soft copper wire type with low resistance. The insulation layer consists of polyethylene with high dielectric resistance and foamed polyethylene, resulting in a triple layer configuration, implemented in a dual-core design. Transfer losses as well as DC resistance are minimal.
- Shielding is provided by 192 ultra-fine 0.1 mm high-purity copper wires braided to a high density, plus a layer of aluminum foil tape. This dual approach results in low capacitance and gives extra protection against any form of externally induced noise.
OFC Series Cable Cross-section View
- 1.Center conductors
- 2.Dielectric (white)
- 3.Dielectric (red)
- 4.Interstitial core
- 5.Paper taping
- 6.Shielded conductor (Braided shield)
- 7.Jacket
Available in 1.0m, 1.5m, 3.0m, 5.0m, 7.5m, 10.0m (Please call for price of 5.0m, 7.0m or 10.0m)
