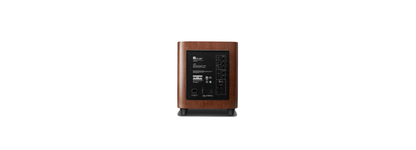

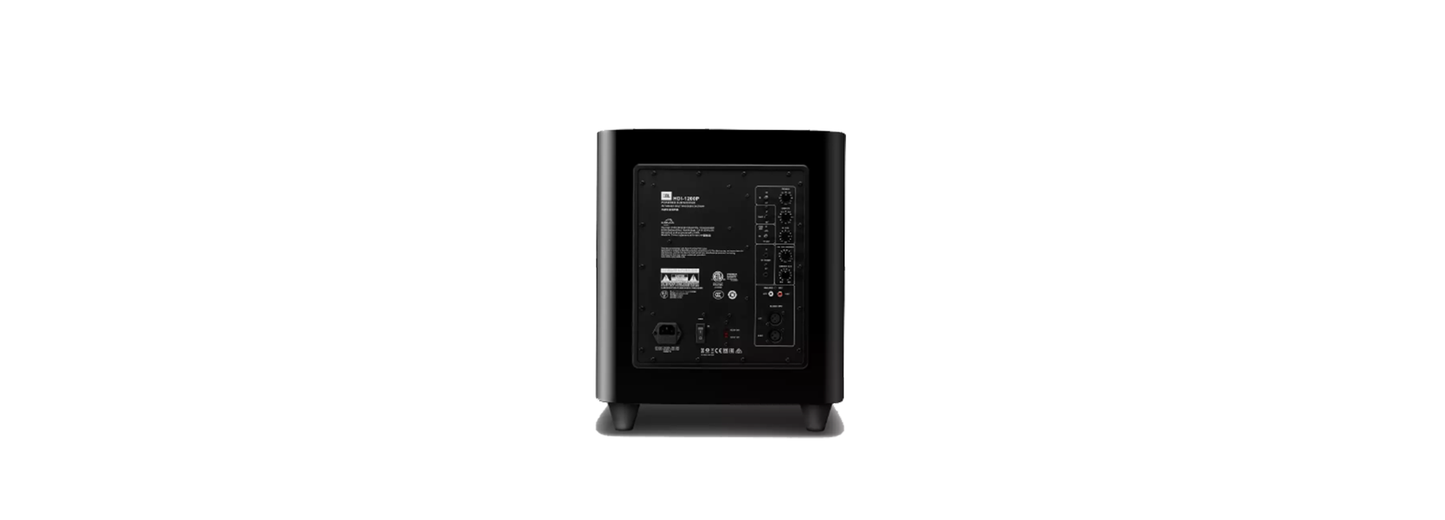

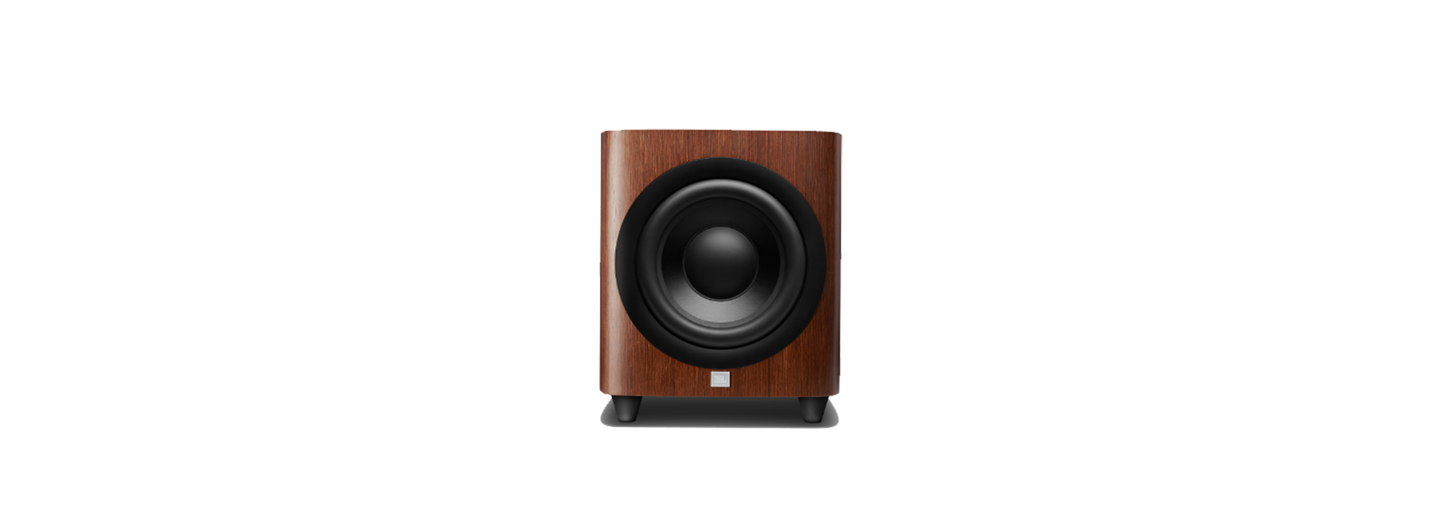

JBL HDI 1200P 12" POWERED SUBWOOFER
JBL HDI 1200P 12" POWERED SUBWOOFER
Couldn't load pickup availability
12" (300mm) 1000W Powered Subwoofer
Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1200P is the foundation of a complete HDI Series surround system. This powered subwoofer features a 12-inch (300mm) Poly-plas™ cone woofer driven by a 1,000 Watt amplifier for powerful dynamics and incredibly accurate sound reproduction. The HDI-1200P enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual down-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut. A black cloth, magnetically attached grille completes the elegant appearance.
HDI-1200P Highlights
-
1,000 Watt RMS Class D amplifier
-
Cast frame, Poly-plas™ cone woofer with 3-inch voice coil
-
Single-band Parametric EQ
-
Low Pass Crossover and Gain controls with selectable Phase switch
-
RCA & XLR line-level inputs
-
Contemporary design with premium finishes including high-gloss Black, and satin Walnut wood veneer
General Specifications
| Enclosure Type | Bass-reflex design with down-firing ports |
|---|---|
| Low Frequency Driver |
: 12-inch (300mm) black Poly-plas™ cone, cast-frame woofer |
| Amplifier Power | 1000W rms |
| Crossover Frequency | 50Hz – 150Hz (variable) 24dB/octave |
| Power Requirement |
100V – 240V 50/60Hz |
| Power Consumption (idle/max) | <0.5W (standby) 1180W/7.7A (max-230Vac) 1230W/12.87A (max-120Vac) 1190W/15.97A (max-100Vac) |
| Frequency Response | 28Hz – 150Hz (-6dB) |
| Dimensions (H x W x D) | 430.5 x 414 x 451.3mm |
| Net Weight | 31.79kg |
