Cannon type connectors

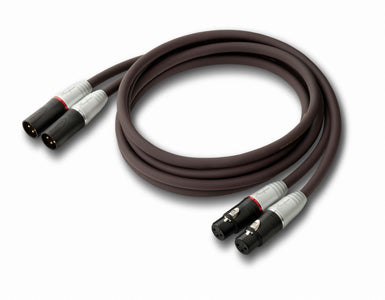

To accommodate equipment with Cannon (XLR) type connectors, Accuphase offers these cables with 3-pin Cannon type XLR connectors. In compliance with the BTS standard, pin is connected to the shield.
SR Series Cable Specifications
|Phono Plug||XLR Connector|
|Configuration||8-core multi-hybrid conductor|
|Jacket||Dark brown PVC (Polyvinyl chloride)|
|Center Conductors||7N, AgA, PCOCC, OFC|
|Shielded Conductor||Soft copper wire (0.1 mm diameter × 192)|
|Total DC loop resistance ［m ohm/m］||20||16|
|Interelectrode capacitance ［pF/m］||378||-|
|Capacitance between two center conductors ［pF/m］||-||218|
|Interelectrode inductance ［nH/m］||360||500|
|Insulation resistance ［M ohm/km||40||40|
- SR series cable features an 8-core multi-hybrid configuration. Center conductor consists of two sets of four different copper wires, including an extra thick 7N (99.99999%) ultra pure copper wire with 0.9 mm diameter.
- Center conductor dielectric employs polyethylene with low inductivity and high insulation resistance, to reduce stray capacitance between the conductors.
- Braided outer shield is a dual-shield type combining 192 ultra-fine 0.1 mm diameter soft copper wires with aluminum foil tape. This design reliably shuts out any external noise.
Available in 1.0m, 1.5m, 3.0m, 5.0m, 7.5m, 10.0m
