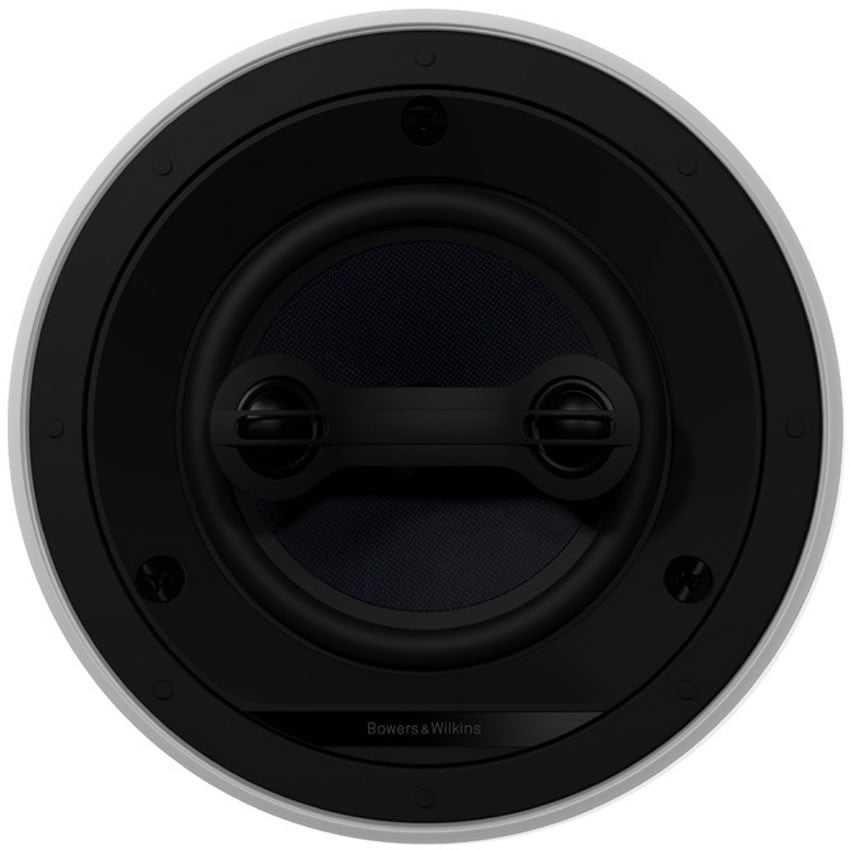

The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Kevlar® coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Kevlar® features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.
Drive Units 2x ø20mm (1in) soft dome tweeter, 1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 48Hz – 30kHz
Recommended Amp Power 25 – 80w (per channel)
Sensitivity SPL (2.83V, 1m) 82dB (per channel), 88dB (both channels driven)
Impedance Nominal (min) 8Ω (4Ω) (per channel)
Frame diameter 240mm (9.5in)
Cut-out diameter 202mm (8in)
Depth behind surface 133mm (5.2in)
Protrusion 4mm (0.2in)
