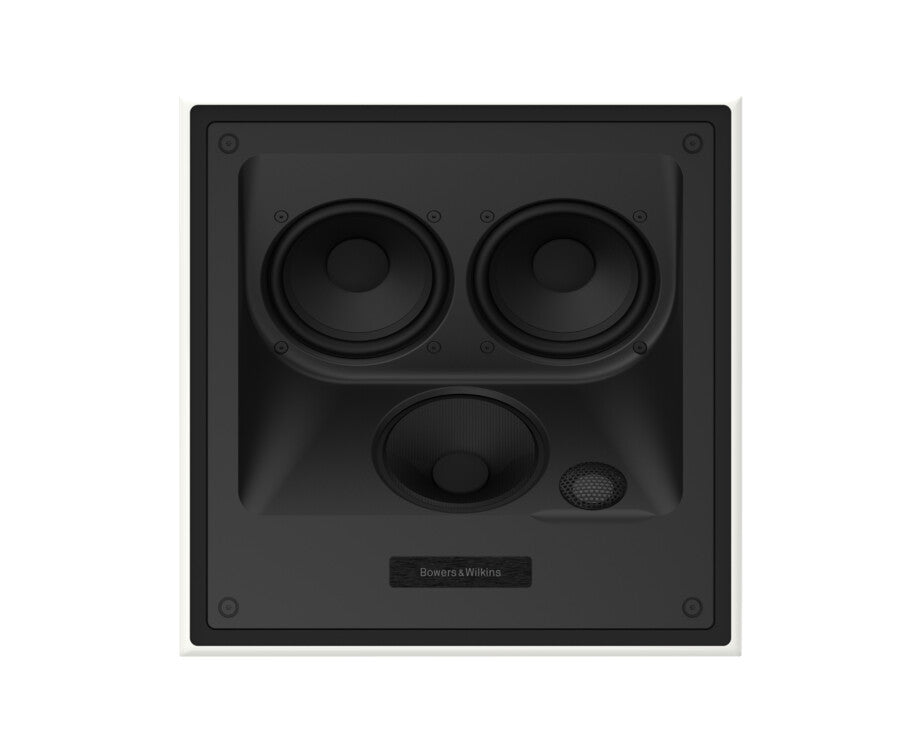

BOWERS & WILKINS CCM7.3 S2 PREMIUM 3-WAY IN-CEILING SPEAKERS

B&W

$1,999.00

( 5YRS AUSTRALIA WIDE WARRANTY )

** WE ARE NEGOTIABLE**

** WE WILL PRICE MATCH** (AUTHORISED DEALERS ONLY)





SOLD AS EACH

 The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.



Technical Specifications

Technical features - Carbon Dome tweeter Continuum cone FST midrange Aerofoil profile bass cones

Description- 3-way in-ceiling system

Drive units - 1x ø25mm (1in) Carbon Dome high-frequency 1x ø100mm (4in) Continuum cone FST midrange 2x ø130mm (5in) Aerofoil profile bass

Frequency range -  (-6dB) -6dB at 52Hz and 33kHz

Frequency Response -  -3dB55Hz - 28kHz ±3dBSensitivity90dB spl (2.83Vrms, 1m)Harmonic distortion2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz

Nominal impedance - 8Ω (minimum 3.1Ω)

Recommended amplifier power - 25W - 200W into 8Ω on unclipped programme

Frame height - 355mm (14in)

Frame width - 355mm (14in)

Depth - 194.5mm (7.66in)

Cut-out height - 332mm (13.1in)

Cut-out height w/PMK - 335mm (13.2in)

Cut-out width w/PMK - 335mm (13.2in)

Protrusion - 8mm (0.3in)

PMK -  7C

Net weight -  9kg (19.84lb) Inc accessories

Finishes - Back box: White

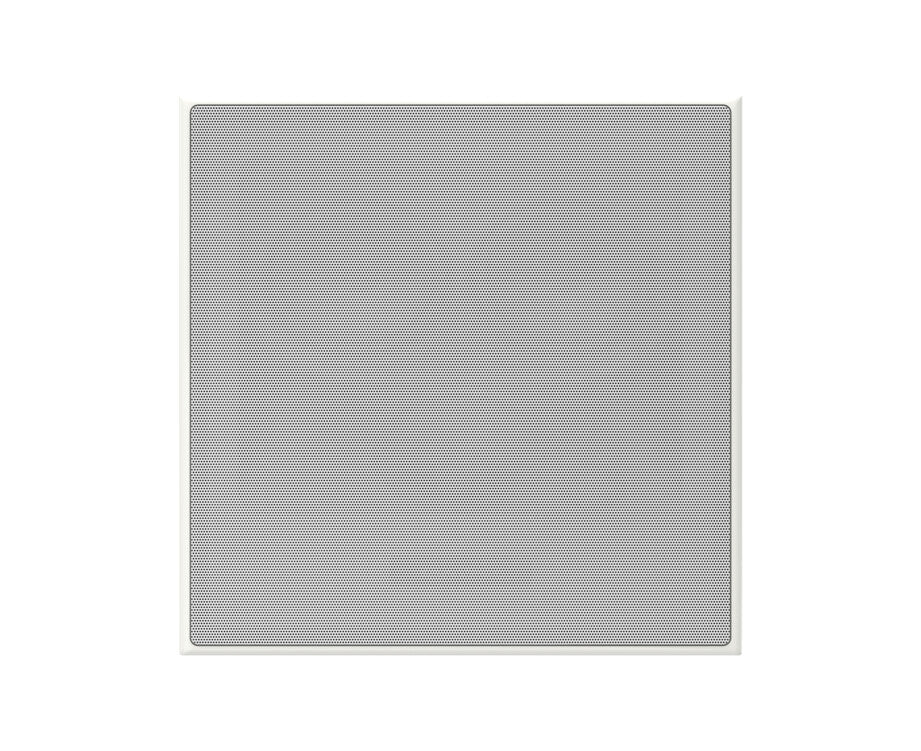

                Grille: White
