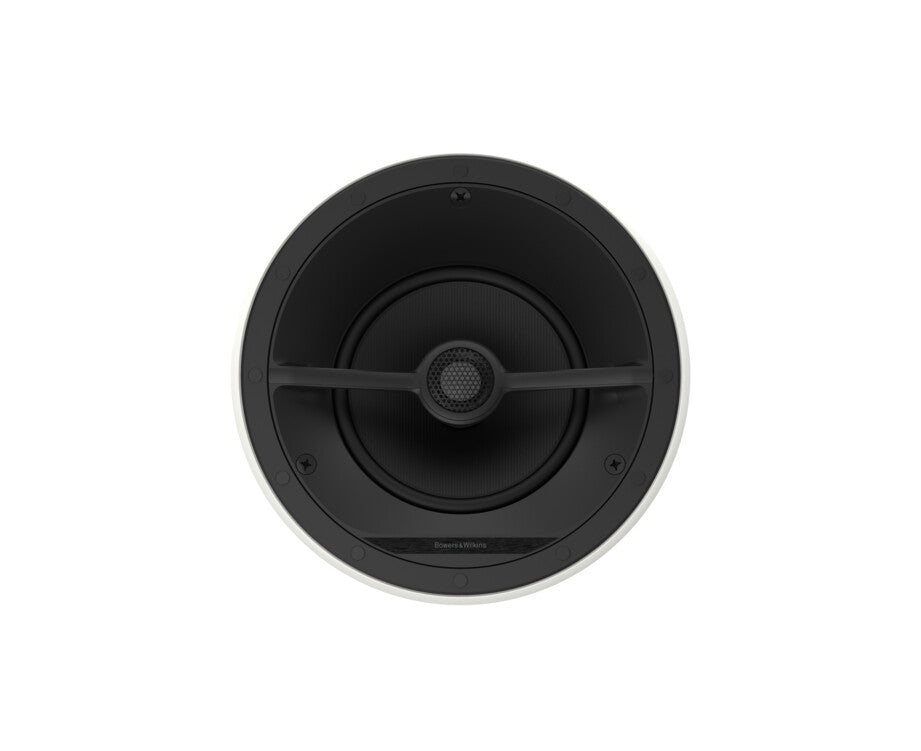

BOWERS & WILKINS CCM7.5 S2 PREMIUM 2-WAY IN-CEILING SPEAKERS

B&W

$999.00



( 5YRS AUSTRALIA WIDE WARRANTY )

** WE ARE CASH NEGOTIABLE**

** WE WILL ATTEMPT TO BEAT OR PRICE MATCH ANY AUTHORISED AUSTRALIAN RETAILER**

( AUSTRALIA RELEASED MODELS ONLY )




SOLD AS EACH



Designed for down-firing, in-ceiling use, CCM7.5 S2 can be used as the left, centre, right and rear-channel rear speakers in a discreet home cinema system. Its configuration includes a 25mm (1in) Carbon Dome tweeter and a 180mm (7in) Continuum cone mid/bass cone angled to the mounting surface, allowing for easy direction of the whole array towards the listener to ensure they hear the correct balance of sound. That way, dialogue is crystal clear and special effects come across accurately. Thanks to Bowers & Wilkins unique QuickDogsTM fixing method, installation is simple and if preferred, the supplied round grille can be replaced with an optional, square grille.



Technical Specifications

Technical features -  Carbon Dome tweeterContinuum mid/bass

Description -  2-way in-ceiling system

Drive units -  1x ø25mm (1in) Carbon Dome high-frequency1x ø180mm (7in) Continuum cone mid/bass

Frequency range -  (-6dB) -6dB at 25Hz - 33kHz

Frequency Response - -3dB32Hz - 28kHz ±3dB

Sensitivity - 90dB spl (2.83Vrms, 1m)

Harmonic distortion - 2nd and 3rd harmonics (90dB, 1m)<1% 70Hz - 33kHz<0.5% 100Hz - 28kHz

Nominal impedance - 8Ω (minimum 4.8Ω)

Recommended amplifier power - 25W - 150W into 8Ω on unclipped programme

Frame diameter - 290mm (11.4in)

Depth (behind surface) - 128mm (5in)

Cut-out diameter - 254mm (10in)

Protrusion - 8.5mm (0.33in)

PMK - PMK C8

Back box - BB 6C

Square grille option - GR68SQ

Net weight - 3.1kg (6.83 lb)

Finishes - Grille: White
