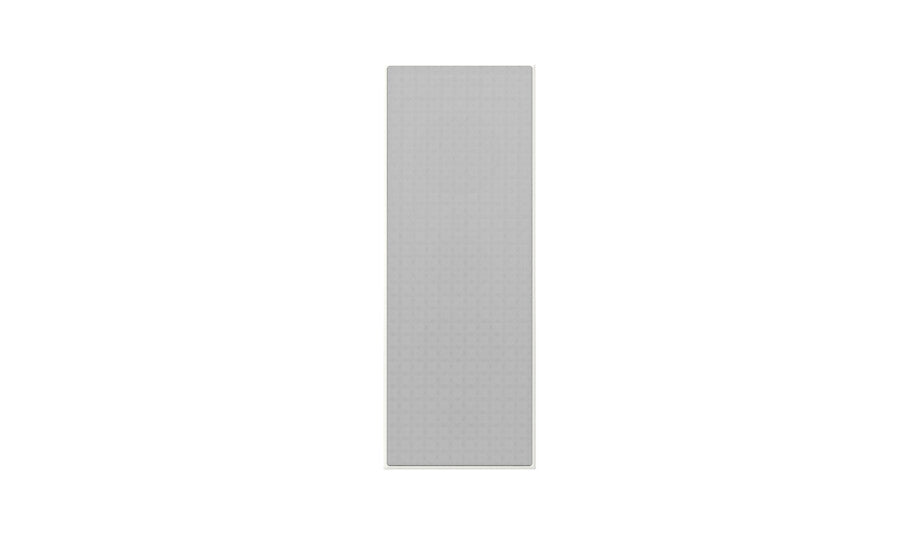

BOWERS & WILKINS CWM7.3 S2 3-WAY IN-WALL SYSTEM WITH 703 S2 PERFORMANCE LEVELS

B&W

$2,599.00

( 5YRS AUSTRALIA WIDE WARRANTY )

** WE ARE CASH NEGOTIABLE**

** WE WILL ATTEMPT TO BEAT OR PRICE MATCH ANY AUTHORISED AUSTRALIAN RETAILER**

( AUSTRALIA RELEASED MODELS ONLY )




SOLD AS EACH

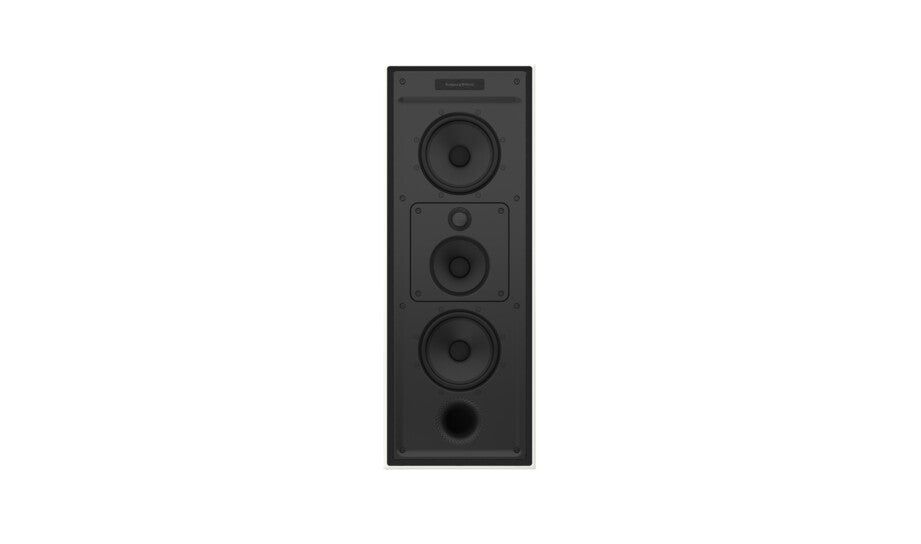

The CWM7.3 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding tranducers, when combined with high-quality, optimised, components on the crossover and a critically formed baffle constructed from glass reinforced ABS, produce a truly remarkable in-wall speaker.



Technical Specifications

Technical features - Carbon Dome tweeterContinuum cone FST midrange Aerofoil profile bass cones Flowport™

Description -  3-way in-wall system

Drive units - 1x ø25mm (1 in) Carbon Dome high-frequency1x ø100mm (4 in) Continuum cone FST midrange 2x ø150mm (6 in) Aerofoil profile bass

Frequency range -  (-6dB) -6dB at 43Hz and 33kHz

Frequency Response - -3dB45Hz - 28kHz ±3dB

Sensitivity - 90dB spl (2.83Vrms, 1m)

Harmonic distortion - 2nd and 3rd harmonics (90dB, 1m) <1% 80Hz - 33kHz <0.5% 120Hz - 33kHz

Nominal impedance - 8Ω (minimum 3.1Ω)

Recommended amplifier power - 25W - 200W into 8Ω on unclipped programme

Frame height - 736mm (29in)

Frame width - 276mm (11in)

Depth (behind surface) - 102mm (4.02in)

Cut-out height - 711mm (28in)

Cut-out width - 251mm (9.9in)

Cut-out height w/PMK - 715mm (28.1in

Cut-out width w/PMK - 256mm (10.1in)

Reservoir box height - 460mm (18.1in)

Reservoir box width - 220mm (8.7in)

Protrusion - 7mm (0.28in)

PMK -  7.3W

Net weight -  12.4kg (27.32lb)

Finishes - Back box: White

                Grille: White
