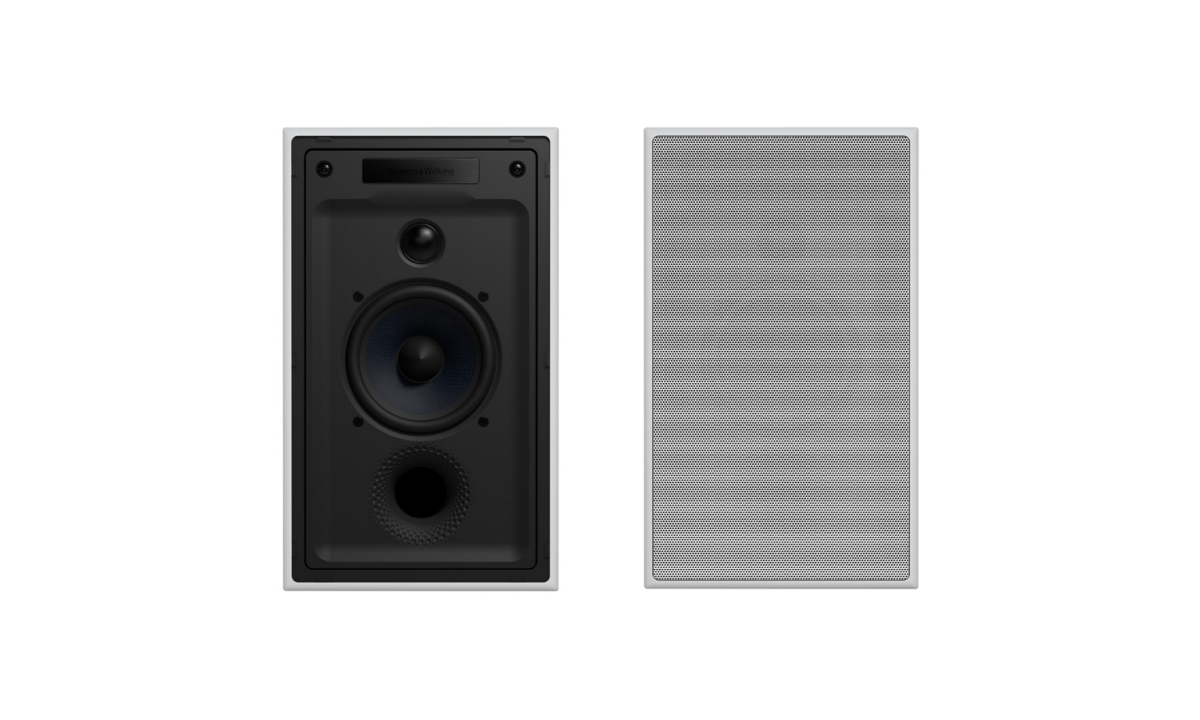

BOWERS & WILKINS CWM7.5 2-WAY IN-WALL SPEAKERS

B&W

$999.00

( 5YRS AUSTRALIA WIDE WARRANTY )

** WE ARE NEGOTIABLE**

** WE WILL PRICE MATCH** (AUTHORISED DEALERS ONLY)







SOLD AS EACH

 The CWM7.5 shares the acoustic configuration of the 707 S2 and like its sibling, it houses a 130mm (5in) bass/mid-range Continuum cone driver plus a 25mm (1in) Carbon Dome tweeter, coupled to a forward-firing FlowportTM for outstanding bass response from a relatively small footprint. It has a critically formed baffle constructed from glass reinforced ABS plus its own integrated backbox, ensuring retrofittable installation plus optimum performance. It’s an outstanding performer when used in stereo or multi-room installations, and is equally at home as the rear speaker in a larger theatre application.



Technical Specifications

Technical features -  Carbon Dome tweeterContinuum mid/bassFlowport™

Description -  2-way in-wall systemDrive units 1x ø25mm (1 in) Carbon Dome high-frequency1x ø130mm (5 in) Continuum cone mid/bassFrequency range (-6dB) -6dB at 43Hz and 33kHz

Frequency Response -  -3dB45Hz - 28kHz ±3dB

Sensitivity - 86dB spl (2.83Vrms, 1m)Harmonic distortion2nd and 3rd harmonics (90dB, 1m)<1% 90Hz - 33kHz<0.5% 120Hz - 33kHz

Nominal impedance - 8Ω (minimum 3.8Ω)

Recommended amplifier power - 25W - 150W into 8Ω on unclipped programme

Frame height - 356mm (14in)

Frame width - 212mm (8.5in)

Depth (behind surface) - 102mm (4in)

Cut-out height - 331mm (13in)

Cut-out width - 187mm (7.4in)

Cut-out height w/PMK - 336mm (13.2in)

Cut-out width w/PMK - 192mm (7.6in)

Reservoir box height - 385mm (15.2in)

Reservoir box width - 181mm (7.1in)

Protrusion - 8mm (0.32in)

PMK -  7.5W

Net weight -  3.8kg (8.38 lb)

Finishes - Back box: White

                Grille: White
