BenQ Home Cinema Projector
W5800|4K 2600lm BenQ Home Cinema Projector
W5800|4K 2600lm BenQ Home Cinema Projector
See Colours as Directors Envisioned in Your AV Sanctuary
Buy Now See the Reviews
Easy Upgrade to a 200” 4K Home Theater
Experience a 200” screen with laser-sharp clarity. Precision-calibrated for 100% DCI-P3 color coverage and Delta E <1 color accuracy, the W5800 leverages installation features to easily upgrade your entertainment.
Laser Precision, Unmatched Visuals
The W5800 features a groundbreaking laser array light source, presenting a breathtaking 4K image with an impressive brightness of 2,600 lumens for vivid color and clarity.
Colours as Directors Envisioned
Faithfully reproduce the image the way the artist intended. BenQ W5800 Home Cinema Projectors with CinematicColor super-wide 100% DCI-P3 and 100% Rec.709 color space deliver precise colors to perfectly preserve what the directors envisioned.
Discover
-

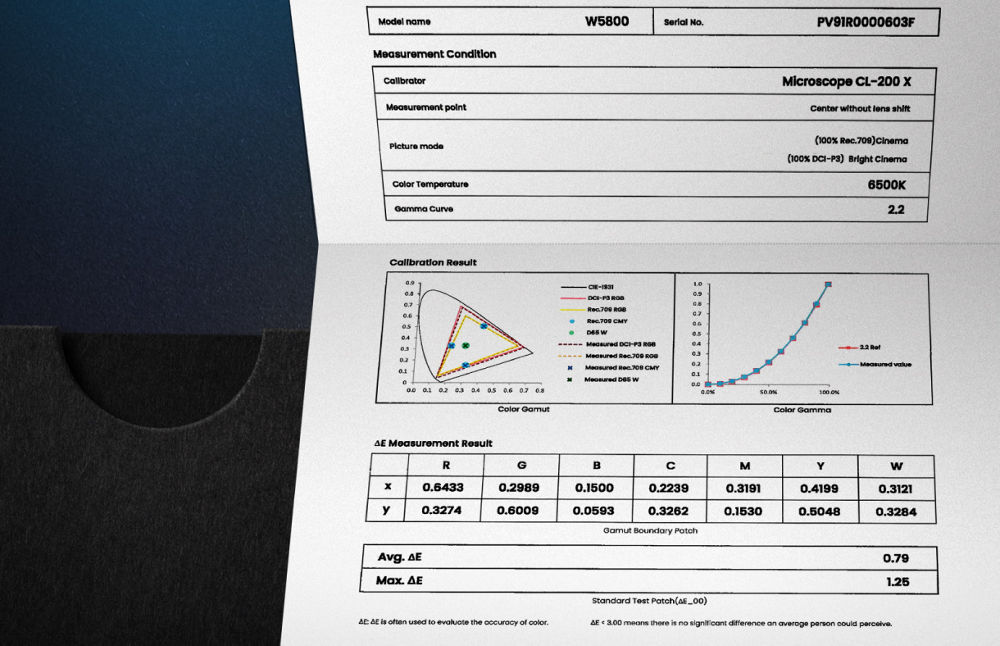

Out-of-Box Color Accuracy
Individual factory calibration reports assure 100% Rec.709 Delta E<2, grayscale tracking Delta E<2 and optimized DCI-P3 color table for true Hollywood colors.
-
ISFccc® Certified
Acclaimed ISFccc® calibration customizes image and color performance for any space, along with preset day/night light balance modes.

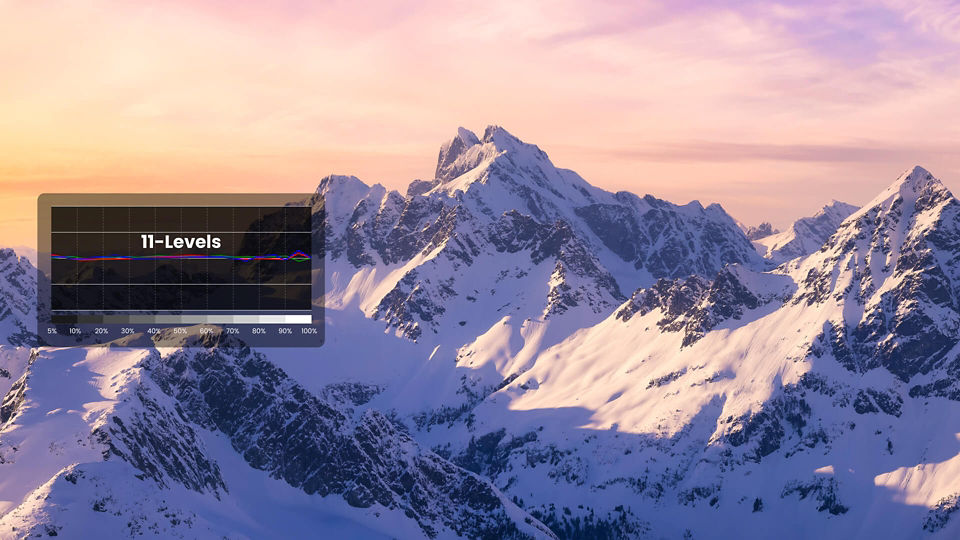

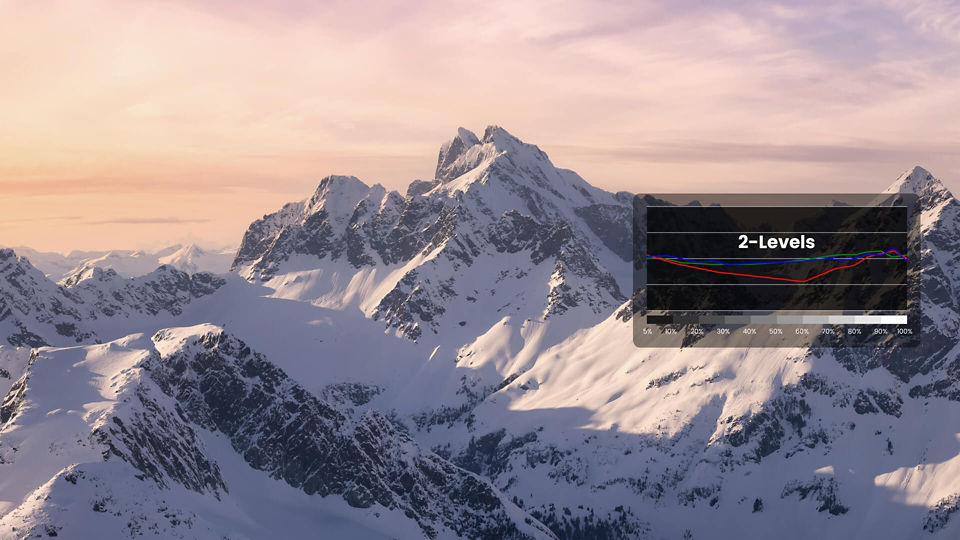

Exclusive Colour Temperature Tuning
BenQ high-end cinema projectors provide advanced color temperature tuning with leading 11 levels of white balance controls between high to low brightness, enabling content fanatics to adjust the most accurate colors in mid-tone colors.
Filmmaker Mode
Most movies are shot at 24 frames per second (fps). In order to display movies exactly as the director intended, the W5800 supports 24P playback that accepts high-definition sources at 24 fps without judder in HDR mode to preserve the purity of the original image.
4K Clarity Through All-Glass Lens
Utilizing an all-glass lens system featuring 14-element 7-group coated with low dispersion materials, the W5800 has superior transparency to greatly reduce color difference, fully displaying 4K image clarity.
HDR Tone Mapping
BenQ exclusive HDR-PRO technology heightens the 4K HDR viewing experience with two-step enhanced tone mapping, reproducing more balance between details in bright and dark scenes.
Learn More
Locally Enhanced Shadows and Highlights
Applying the industry-leading Local Contrast Enhancer (LCE) algorithm to divide images into 1,000+ zones, LCE analyzes each segment’s brightness and adjusts gamma independently for greater dark and bright detail definition and enriched image depth.
Comprehensive Image Optimization
BenQ Dynamic Black technology dynamically adjusts the projection light output by detecting imagery, ensuring optimal contrast and lifelike images. Laser projectors, equipped with fast dimming, promptly response to brightness changes, delivering 20% higher contrast than other SSI models.
HDR Video Optimization Frame by Frame
New HDR10+ technology adds dynamic metadata to HDR10 source files, which is used to optimize each frame of the HDR video to enhance details in both bright and dark areas of HDR10+ content.
Superior Acoustic Enjoyment
The W5800 connects you to all kinds of entertainment with universal ports including dual HDMI 2.0b (HDCP 2.2)*, two USB-Type A, SPDIF, and eARC allows 7.1 channel and Dolby Atmos audio pass through, transmitting the original-full resolution audio signal to your sound system via one HDMI cable.
*Only HDMI-1 supports eARC with multichannel audio output.
-
Plus, eARC enables 7.1-channel and Dolby Atmos audio, passing unaltered full-resolution signals to your sound system via a single HDMI cable.
Lossless Images Fit for Any Large Spaces
Immersive Silence
The W5800 is equipped with a low-noise multi-channel cooling system, that effectively reduces environmental noise to a quiet range of 27dB to 30dB.
-
Patterned Lens Ring
Elegantly patterned lens ring prevents stray light with rearward tilt to eliminate optical engine light leakage.
-

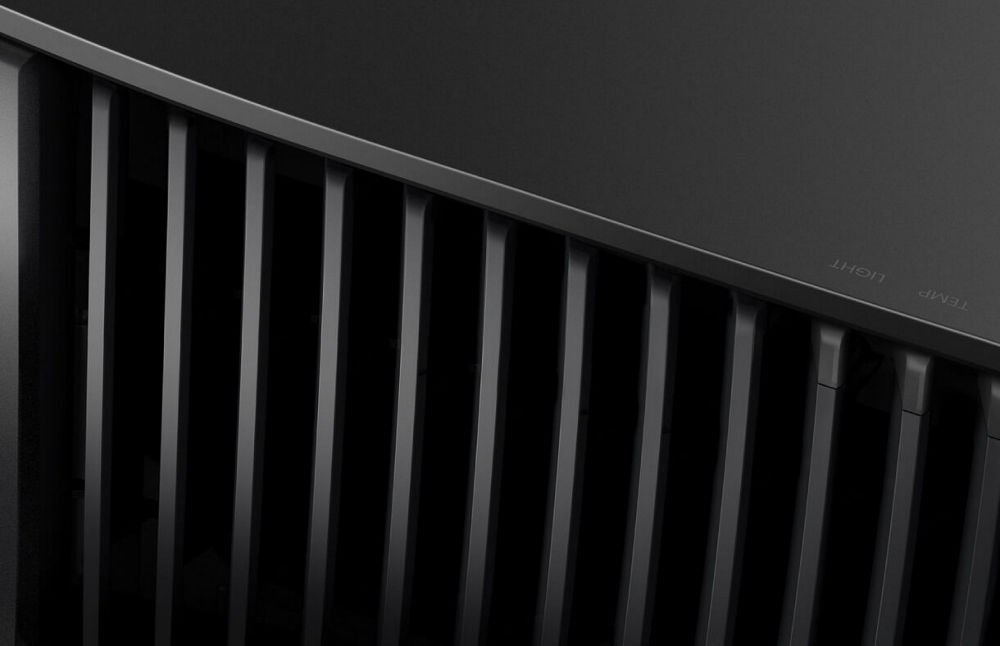

Anti-Dust Vertical Louver
Air intake vertical louvers reject dust from cooling system.
SPECIFICATIONS
Brightness (ANSI lumens)
2600
Resolution
4K UHD (3840×2160)
Native Aspect Ratio
16:9
Contrast Ratio (FOFO)
(w / Lightsource Dimming) 2,000,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Laser
Light Source Life
a. Normal 20000 hrs, , b. ECO 25000 hrs
Throw Ratio
1.52~2.45
Zoom Ratio
1.6x
Lens
F/# = 2.1 - 3.0, f = 16.0 (Wide) - 25.7 (Tele) mm
Projection Offset (Full-Height)
0%
Keystone Adjustment
2D, Vertical ± 35 degrees; Horizontal ± 35 degrees
Lens Shift Vertical
+50% (Motorized)
Rec. 709 Coverage
100%
Picture Modes
3D, Bright, Bright Cinema, Cinema, FILMMAKER MODE, FILMMAKER MODE HDR, HDR10, HDR10+, HLG, ISF Day, ISF Night, User
Input Lag
13ms (1080P @ 120Hz), 17.9ms (1080P 60Hz), 17.9ms (4K 60Hz)
Resolution Support
VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency
15K~135KHz
Vertical Scan Rate
23~240Hz
HDMI in
(x2)
LAN (RJ45)
(10 / 100 Mbps), (x1)
USB Type A
USB Type A-1 (2.0/Power Supply2.0A/Reader), USB Type A-2 (2.0/Power Supply1.5A/Reader)
USB Type B
(x1), USB Type B-1(service)
RS232 in (DB-9pin)
(x1)
DC 12V Trigger (3.5mm Jack)
(x1)
Speaker
No Speaker
HDMI Audio Return
eARC, 7.1 channel
S/PDIF
2-Channel, PCM, Multi-Channel, RAW
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
Max 450W / Normal 380W / ECO 240W
Stand-by Power Consumption
<0.5W
Network Stand-by Power Consumption
<2W
Acoustic Noise (Typ./Eco.)(dB)
30/27
Remote Control w/ Battery
RCV024
Power Cord (by region)
x1 (1.8M)
HDMI cable
3.0m
Quick Start Guide
(x1) 18L
Warranty Card (by region)
Yes
Lens cover
Yes
Dimensions (WxHxD) (mm)
525.2 x 145.7 x 392.2
Net Weight (kg)
10.5
