CSJ-05
Surprising power packed in compact BMB
Interior design that can be installed vertically or horizontally，Enjoy stereo sound in combination with CSJ-05.

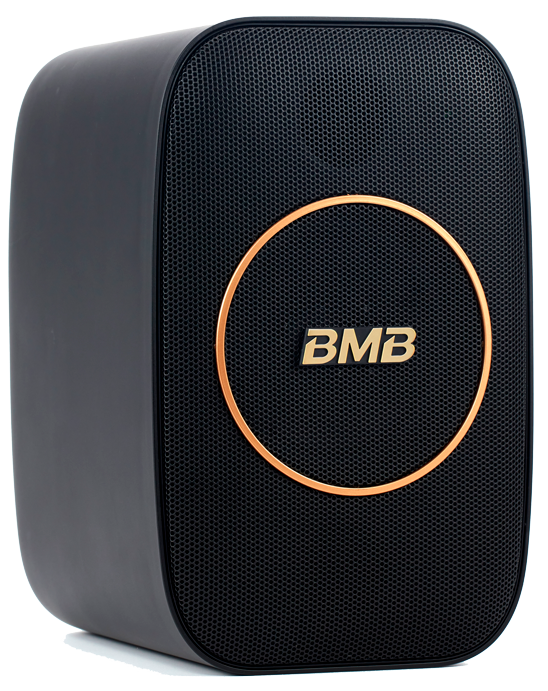

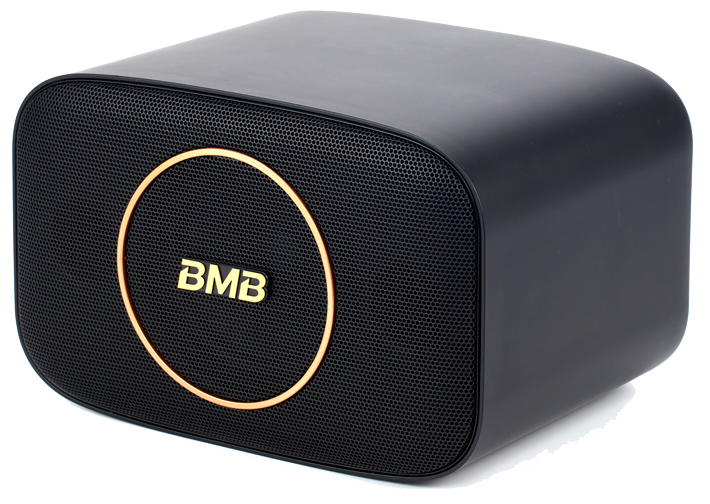

Multiple installation choices
Supports vertical and horizontal set up.
and can be rotated BMB Logo.
SPECIFICATIONS
| CSJ-05 [5"] | |
|---|---|
| System Type | Full range speaker |
| Frequency Range(-10dB) *1 | 62Hz-18kHz |
| Sound Pressure Level *2 | 82dB |
| Impedance | 8Ω |
| Power Capacity | Continuous 60W, Program 120W |
| Dimensions (WxHxD) | 247.5mm x 157mm x 188.6mm(9.7" x 6.2" x 7.4") |
| Shipping Dimensions (WxHxD) | 310mm x 225mm x 256mm(12.2" x 8.86" x 9.84") |
| Net Weight | 2.64kg (5.82lbs) |
| Shipping Weight | 3.34kg (7.36llbs) |
| Input Connectors | 12mm（spacing distance）terminal |
| LF Unit | 116mm(4.5") Cone, 25.5mm(1") Voice Coil x 1 |
| Enclosure Construction | 5mm（0.196"）ABS |
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
