CSJ SERIES
Evoke your inner passion with professional sound.
Any combination in different music spaces. (Living room/entertainment room/office/Bar/Coffee shop/KTV...)
The new 4 equal tweeter design, four directions of equal amplification, better balance and better hearing.
- Multi-scene use, Flexible combination，New Entertainment Speaker Series.
- Paper Cone made in Japan.
Multiple installation choices (CSJ-06/08)

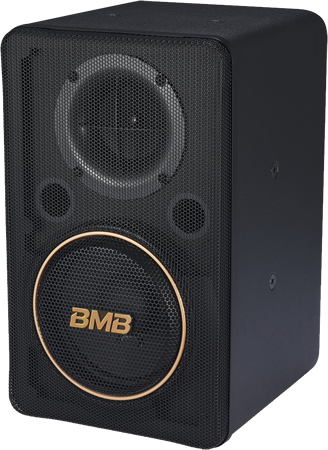

Supports vertical and horizontal orientation, ceiling mounting, and stand mounting, and rotatable BMB Logo.
Can adapt to both stereo and multi-channel setups with versatile installation options.
Uses a common "easy-to-sing" sound for all applications.
Sound spreads equally in four directions
CSJ Series use 4-directional New Tweeter Horn. Spread out Twitter sound more wide range. It can be u
sed as a center speaker
without distinguishing between left and right channels.
With various sizes
6 models, Woofer size 5 to 12 inch to adapt to any music space.
Utilizing a versatile (multi-channel) structural design.
Create a private Music and Karaoke space with CSJ series.
Paper Cone made in Japan
By using a woofer cone paper made in Japan,
Improves the low-frequency range from conventional karaoke speakers achieving a "enveloping sound“ can sing comfortably.
SPECIFICATIONS
| CSJ-06 [6"] | |
|---|---|
| System Type | Two-way two unit speaker system |
| Frequency Range(-10dB) *1 | 51Hz-20kHz |
| Frequency Response(±3dB) *1 | 110Hz-20kHz |
| Sound Pressure Level *2 | 87dB |
| Impedance | 8Ω |
| Max Sound Pressure Level *3 | 109dB |
| Power Capacity | Continuous 80W,Program 160W |
| Dimensions (WxHxD) | 215mm x 351mm x 235mm(8.5" x 13.8" x 9.3") |
| Shipping Dimensions (WxHxD) | 290mm x 425mm x 575mm(11.4" x 16.7" x 22.6") |
| Net Weight | 4.2kg (9.3lbs) for one |
| Shipping Weight | 12.5kg (27.5lbs) / Pair |

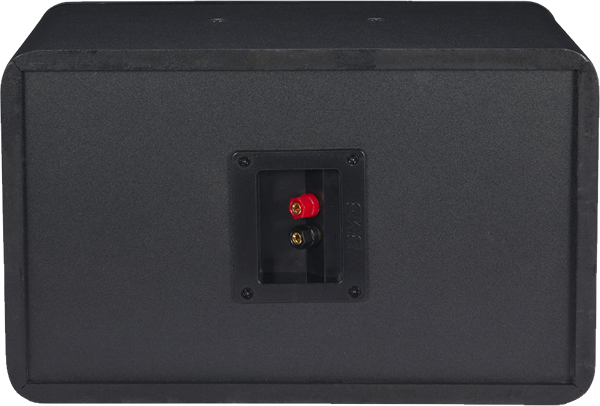

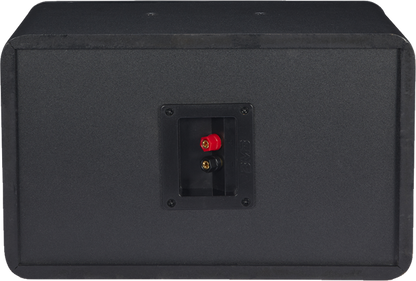

| Input Connectors | 19mm (spacing distance) terminal |
| LF Unit | 160mm（6.3"）Cone, 32.5mm（1.3"）Voice Coil x 1 |
| HF Unit | 70mm（2.8"） Cone, 13.5mm（0.5"）Voice Coil x 1 |
| Enclosure Construction | 12mm（0.5"）MDF |
*1 Full space (4π) conditions
*2 1w1m on-axis, swept-sine in anechoic environment
*3 Calculated
