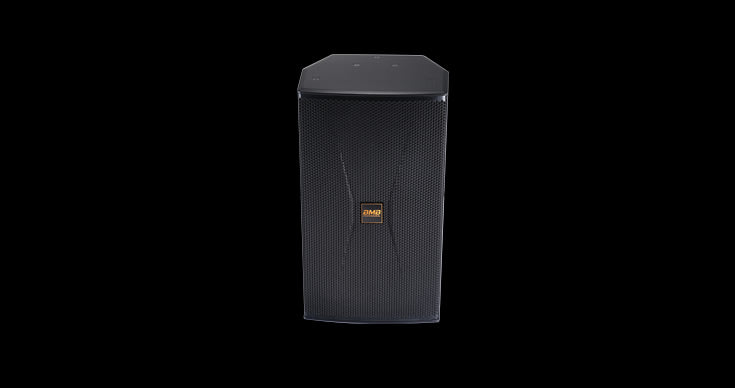

CSP SERIES
BMB Sound everywhere, PA type speaker Tuned for various scene use.
・Cabinet made of high quality birch plywood assembled by box joint.
The tough structure keeps outputting powerful sound stably.
・Clear high frequency sound by fine-tuned diaphragm
SPECIFICATIONS
| System | 2-way 2 Speakers Bass-Reflex |
|
|---|---|---|
| Woofer Unit |
300mm(12") Paper Cone Type x 1 75mm(2.95") Coil x 1 |
|
| Tweeter Unit |
25mm Tweeter, 44.4mm Coil Diaphragm Assembly Type x 1 |
|
| Frequency Response |
60Hz - 20,000Hz |
|
| Sensitivity | 98dB |
|
| Max SPL Peak |
133dB |
|
| Max SPL Continuous |
127dB |
|
| Max Input Power |
1600W |
|
| Rated Input Power |
400W (Public Addressing Speaker Type) |
|
| Recommended Amplifier |
500W (DAD-500SE) |
|
| HF Protections |
Poly Switch Circuit Breaker |
|
|---|---|---|
| Crossover Frequency |
2.6KHz |
|
| Horizontal Coverage |
90-degree |
|
| Vertical Coverage |
90-degree |
|
| Connector | 2 x SPK4 style |
|
| Impedance | 8 Ohms |
|
| Dimensions (W x H x D) | 378 x 625 x 408mm |
|
| Weight | 26.7kg/unit |
|
