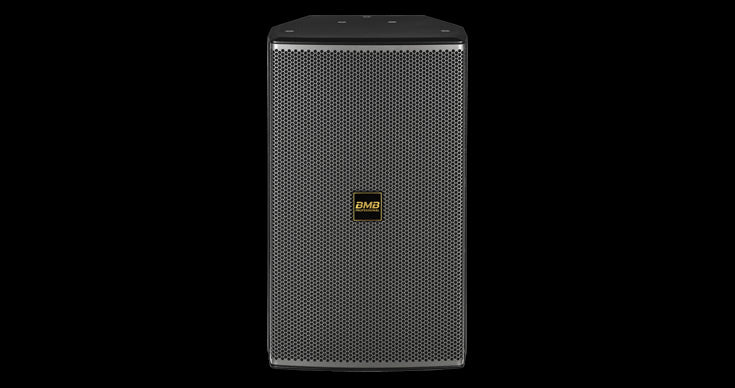

CSS-8000 SERIES
The flagship model of BMB Professional Series.
・BMB's traditional paper cone manufacturing process is a rigorous selection of high-strength textile materials.
・Compression driver uses "Neodymium magnet", it will make clear powerful high-sound.
・High-quality parts carefully selected for the network are used to achieve high stability and excellent durability.
The Woofer
Selected woofer unit for stable delivery of luxurious sound.
The network
Each parts uses high quality material, it is different from other model.
SPECIFICATIONS
System | 2-way Loudspeaker Bass-Reflex |
|
---|---|---|
Woofer Unit |
300mm(12") Paper Cone Type x 1 75mm(2.95") Coil x 1 |
|
Tweeter Unit |
26mm Tweeter, 44.4mm Coil Diaphragm Assembly Type x 1 |
|
Frequency Response |
50Hz - 20,000Hz |
|
Sensitivity | 98dB/W/m |
|
Max SPL Peak |
133dB/m |
|
Max SPL Continuous |
127dB/m |
|
Max Input Power |
1600W |
|
Rated Input Power |
400W (Public Addressing Speaker Type) |
|
Recommended Amplifier |
500W (DAD-500) |
|
HF Protections |
Poly Switch Circuit Breaker |
|
---|---|---|
Crossover Frequency | ||
Horizontal Coverage |
80-degree |
|
Vertical Coverage |
60-degree |
|
Connector | 2 x 4P |
|
Impedance | 8 Ohms |
|
Dimensions (W x H x D) | 377.5 x 620 x 409mm |
|
Weight | 22.6kg/unit |
|
