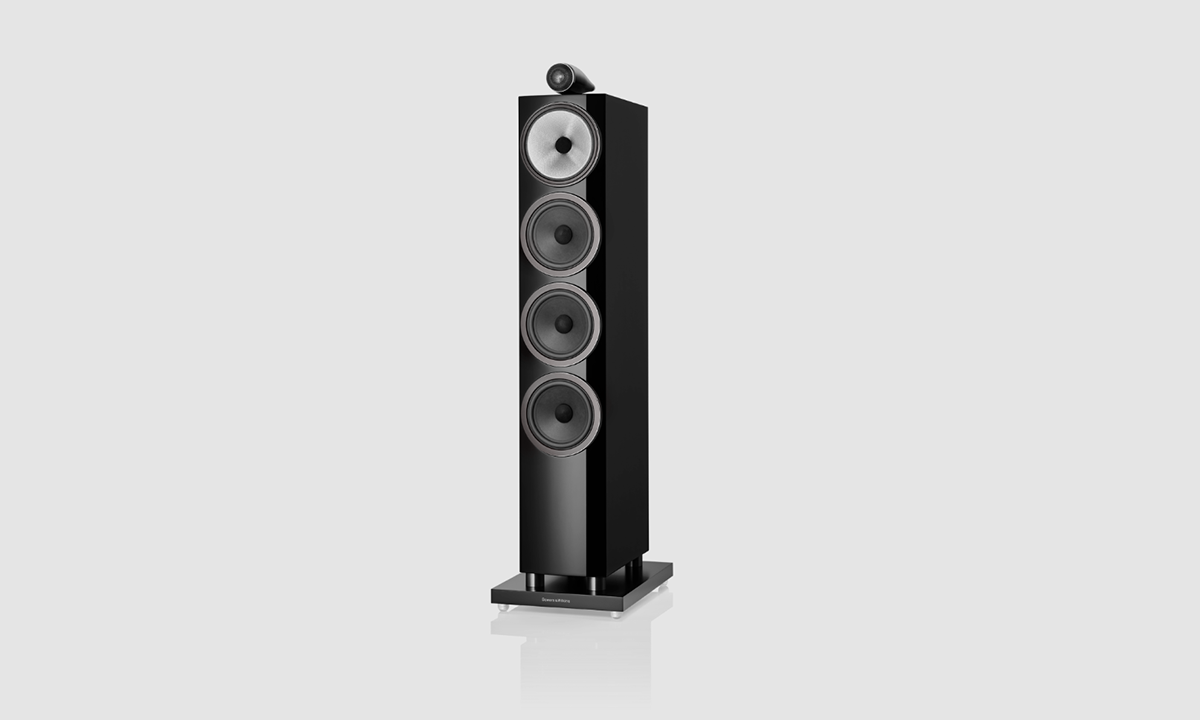

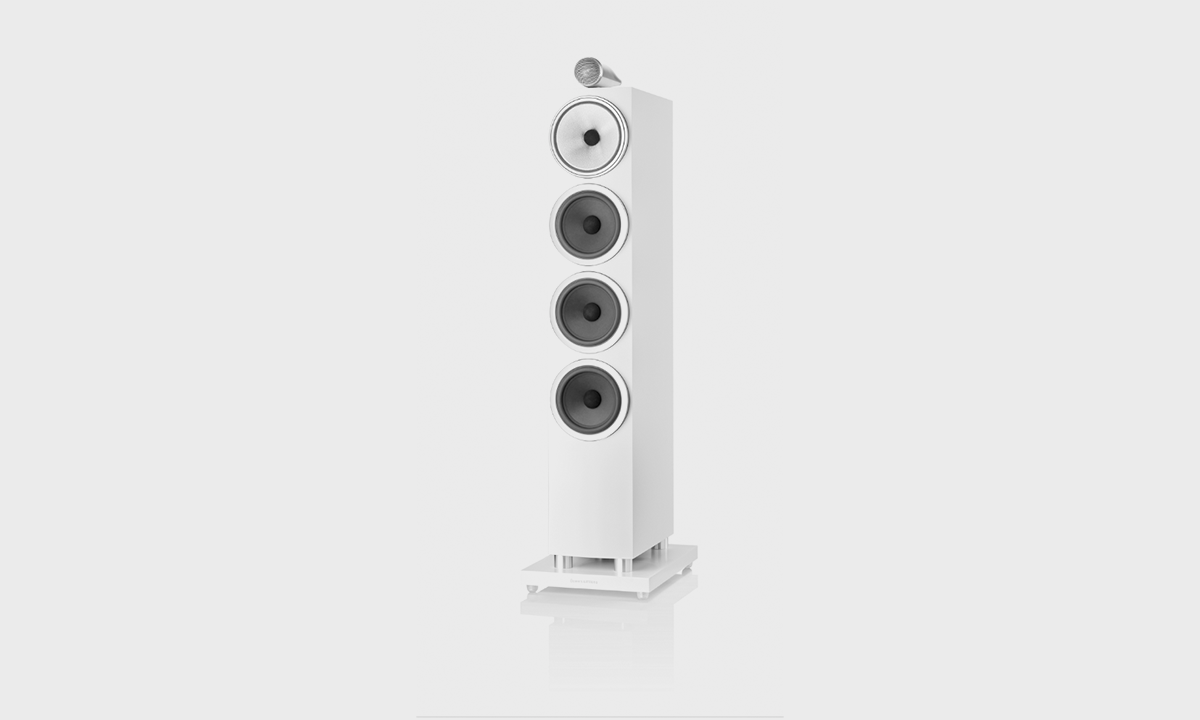

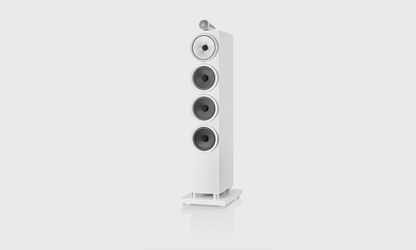

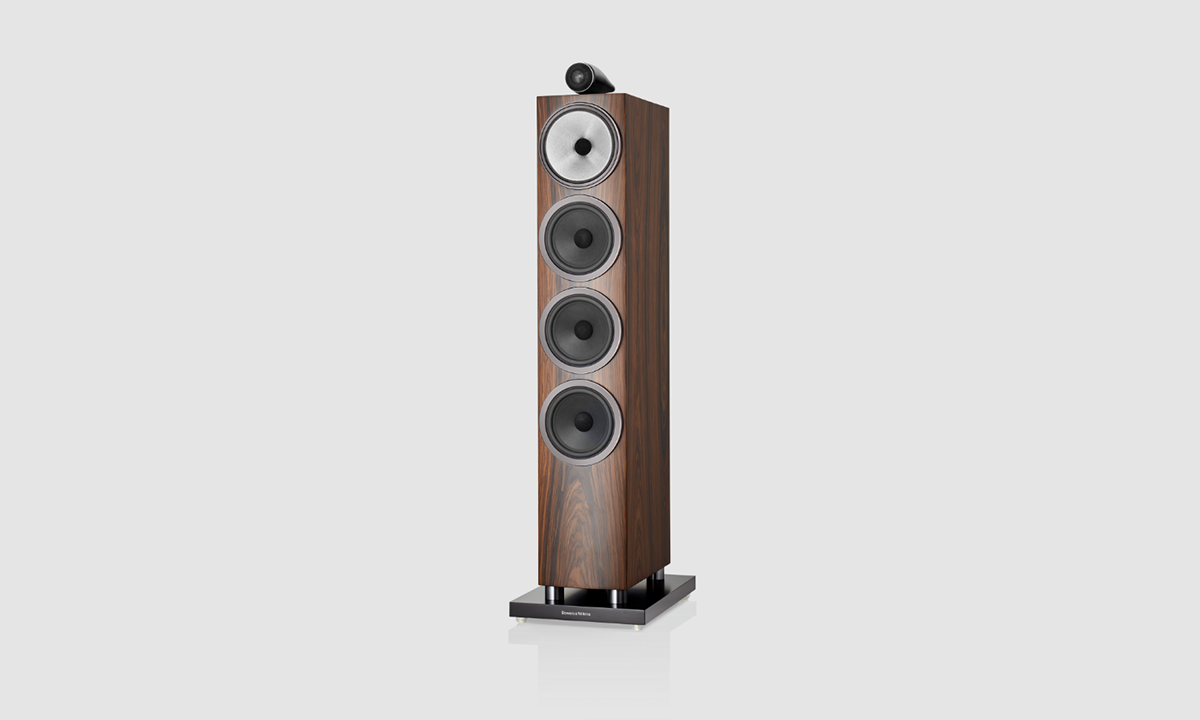

With three dedicated Aerofoil™-Profile bass drivers and a solid body tweeter housing on top, the 702 S2 brings the goosebump-inducing clarity and detail of studio-quality sound to your home audio set-up.
Milled from a solid block of aluminium, the solid body tweeter housing design creates an acoustically optimised housing for the tweeter – one that’s exceptionally inert and resistant to resonances.
Carbon Dome™ tweeter
Carbon Dome tweeters are a brand new technology purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
First introduced with the 800 Series Diamond, the Continuum cone represents the biggest step-change in midrange performance since Kevlar. Its woven, coated material provides highly controlled break-up, resulting in a more open, neutral midrange.
The midrange driver in the floor-standers feature a decoupled design, adapted from a similar system in the 800 Series Diamond. Decoupling reduces cabinet colouration, and boosts midrange clarity.
||Decoupled Carbon Dome tweeter
Solid Body Tweeter on top
Continuum cone FST midrange
Aerofoil profile bass cones
||3-way vented-box system
||1x ø25mm (1 in) Decoupled Carbon Dome high-frequency1x ø150mm (6 in) Continuum cone FST midrange3x ø165mm (6.5 in) Aerofoil profile bass
||-6dB at 28Hz and 33kHz
||45Hz - 28kHz ±3dB
||90dB spl (2.83Vrms, 1m)
||2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
8Ω (minimum 3.1Ω)
