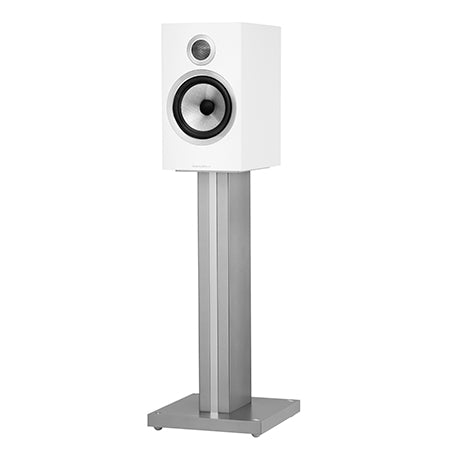

* STAND IS OPTIONAL
Carbon Dome™ tweeters are a brand new technology purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double-dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Continuum™ Cone
First introduced with the 800 Series Diamond, the Continuum™ cone represents the biggest step-change in midrange performance since Kevlar®. Its woven, coated material provides highly controlled break-up, resulting in a more open, neutral midrange.
Continuum™ Cone
First introduced with the 800 Series Diamond, the Continuum™ cone represents the biggest step-change in midrange performance since Kevlar®. Its woven, coated material provides highly controlled break-up, resulting in a more open, neutral midrange.
| Technical features | Decoupled Carbon Dome tweeter Continuum cone bass / midrange Flowport™ |
| Description | 2-way vented-box system |
| Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø165mm (6.5 in) Continuum cone bass / midrange |
| Frequency range | -6dB at 45Hz and 33kHz |
| Frequency response | 50Hz - 28kHz ±3dB |
| Sensitivity | 88dB spl (2.83Vrms, 1m) |
| Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m) <1% 100Hz - 22kHz <0.5% 150Hz - 20kHz |
| Nominal impedance | 8Ω (minimum 3.7Ω) |
| Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
| Dimensions | Height: 340mm (13.4 in) Width: 200mm (7.8 in) Depth: 285mm (11.2 in) cabinet only 301mm (11.9 in) including grille and terminals |
| Net weight | 8.0kg (17.7 lb) |
| Finishes Cabinet: | Rosenut Gloss Black Satin White |
| Grille: | Black Grey (Satin White only) |
