See nothing, hear everything

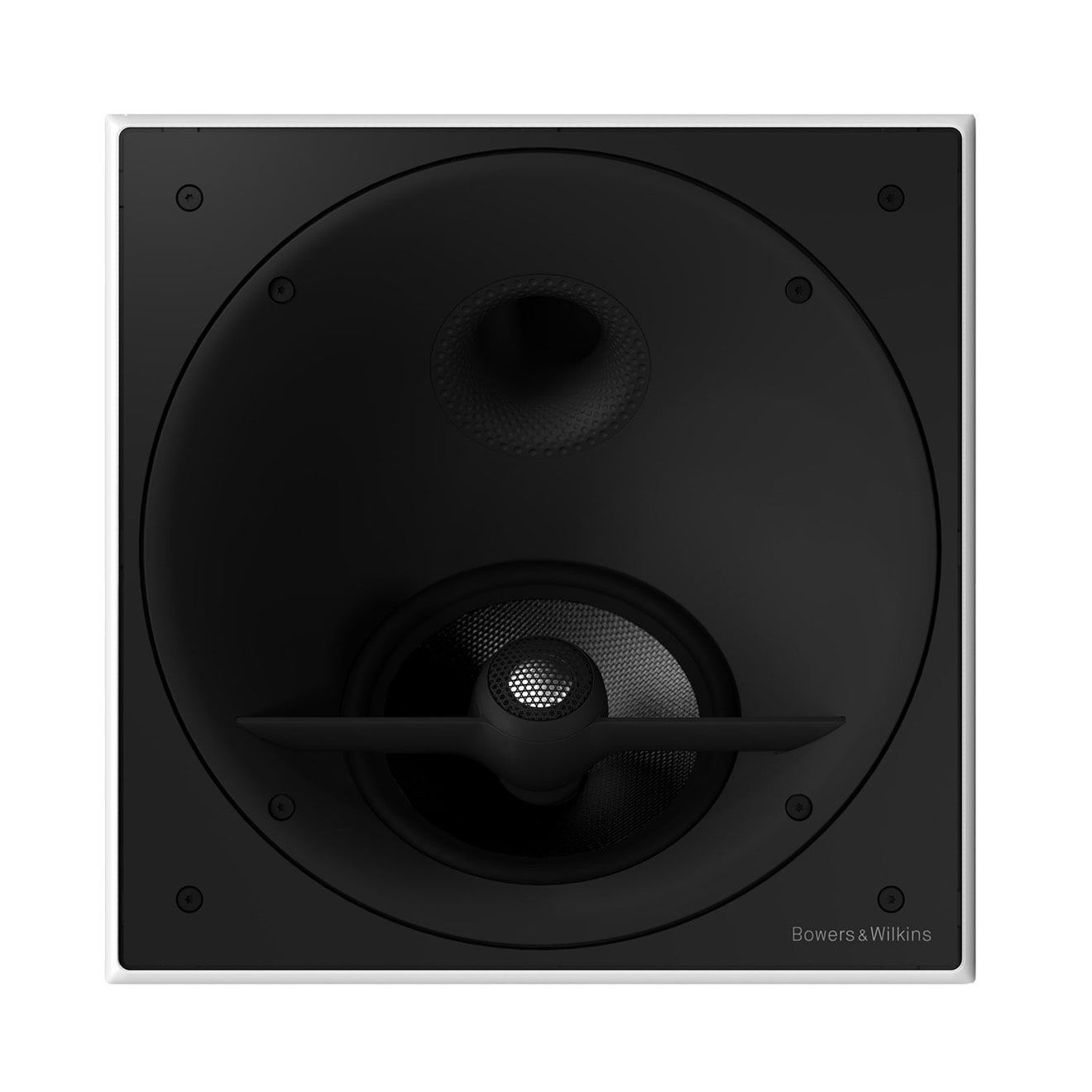

CCM8.5 D is a two-way in-ceiling loudspeaker which offers high-quality
acoustics in an incredibly discreet package.
It features a decoupled Diamond dome tweeter and a single 7inch
bass/midrange Continuum driver with anti-resonance plug. All the drive
units are located in a rotatable mini-baffle which allows the user to ‘toe
in’ the drive units of the loudspeaker for the best performance.
For optimum discretion when installed, the Continuum cone is given
a dark finish.
Technical Specifications
Description: 2-way in-ceiling loudspeaker
Technical features:
Aluminium Tweeter ‘wing’
Rotatable aluminium mini-baffle allows ‘toe-in’
Diamond Dome, Nautilus™tube-loaded tweeter
Anti-resonance plug Flowport™
Drive units:
1x ø25mm (1in) Diamond Dome, Nautilus™ tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/midrange driver with anti-resonance plug
Frequency range: (-6dB) 35Hz - 35kHz
Recommended Amplifier Power: 120W
Sensitivity: 88dB
Nominal Impedance: 8Ω
Frame (width/height): 351mm (13.8in)
Cut-out (width/height:) 331mm (13in)
Protrusion: 8mm (0.3in)
Net weight: 5kg
Back Box: BB CCM8.5
