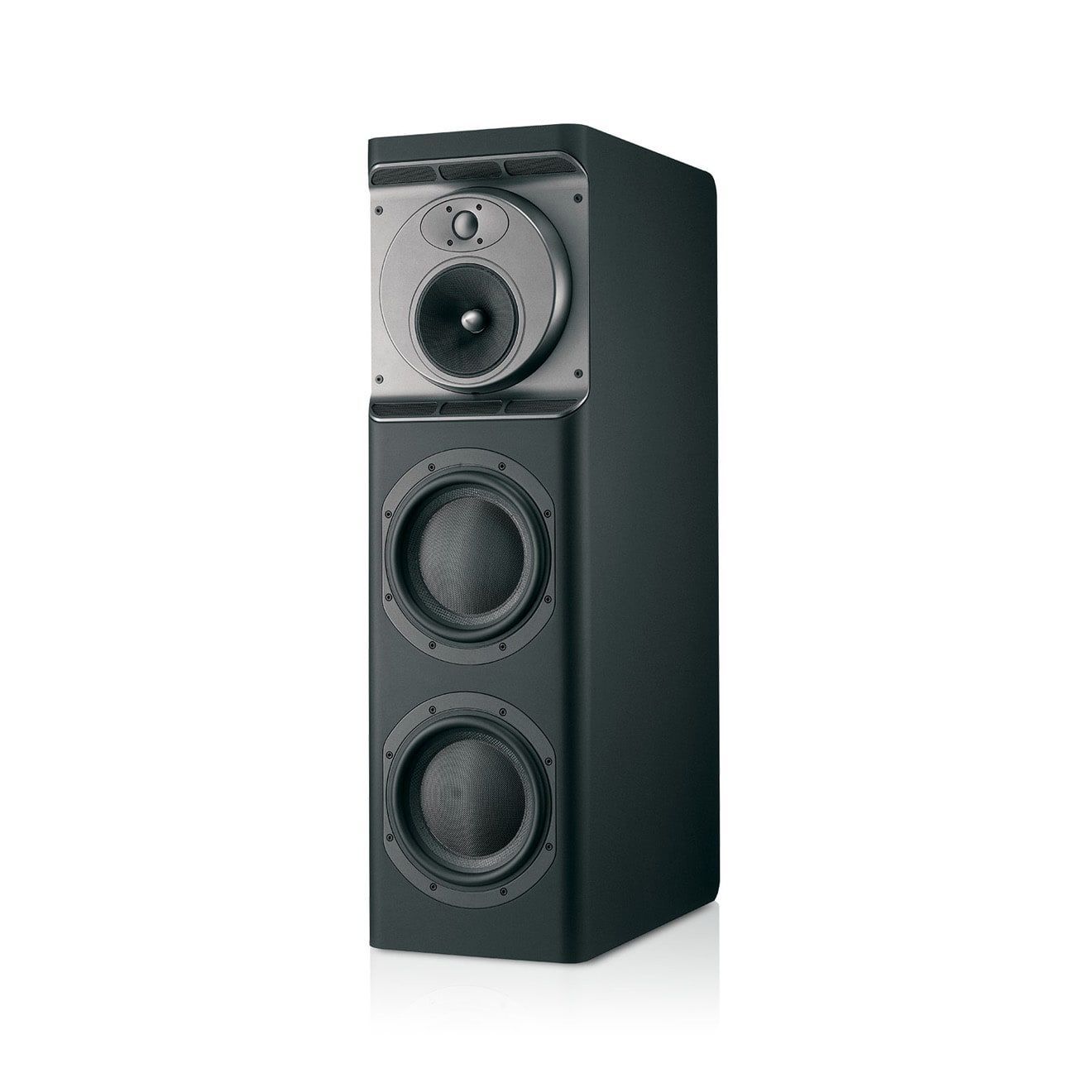

Front speaker: CT8 LR
Stationed to the left and right of the screen are two upright speakers. The CT8 LR features a spherical midrange/tweeter head that can be tilted towards the listener to retain a focused delivery, plus twin 10” bass units, as in the surround speaker.
Tweeter
For the Custom Theatre range we have taken our development of the Nautilus™-derived tube-loaded tweeter a stage further. Following the same principle as our adaptation of the midrange tube (see opposite), we’ve replaced the single, long tube with a whirl of tightly-packed, smaller channels contained in a shallow cup, each of which absorbs a portion of the unwanted sound energy from the back of the diaphragm. Even at frequencies well beyond human hearing, this tweeter sings like a bird.
Technical Specifications
Technical Features |
Adjustable midrange/tweeter head aramid fiber cone FST™ midrange Composite sandwich cone bass Matrix cabinet Active bass crossover Laser alignment device |
Description |
3-way closed-box system |
Drive units |
|
Frequency range | -6dB at 23Hz and 40kHz |
Frequency response | |
Dispersion |
|
Sensitivity | 93dB spl (2.83V, 1m) (mf/hf) |
Harmonic distortion | |
Nominal impedance |
8Ω (minimum 4Ω) |
Crossover frequency | 400Hz, 4.5kHz |
Recommended amplifier power |
50W – 1000W into 8Ω |
Max. recommended cable impedance | 0.1Ω |
Dimensions |
Height: 1100mm (43.3 in) |
Net Weight |
85kg (187 lb) |
Finishes |
Cabinet: Black |
