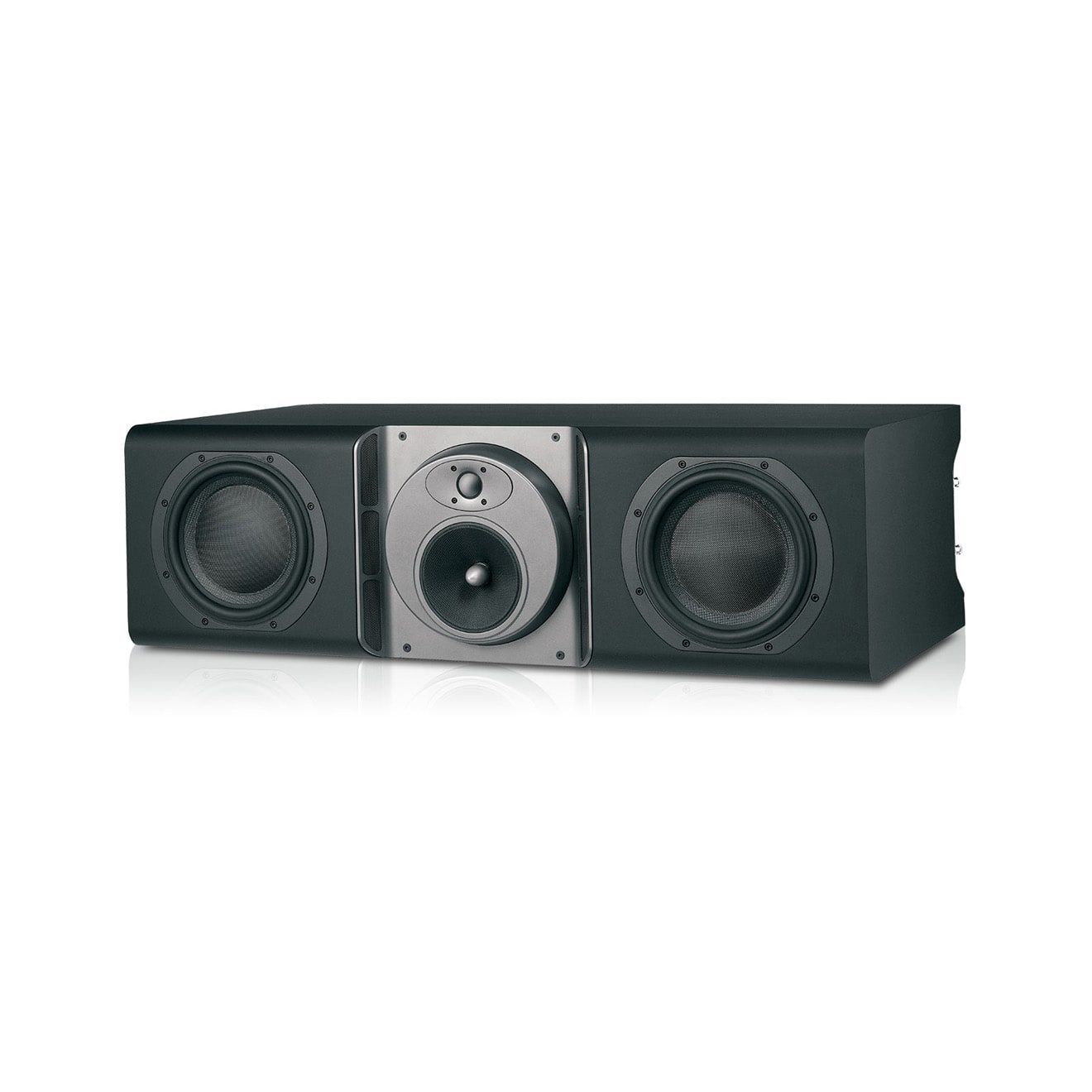

Centre speaker: CT8 CC
The centre speaker has the identical driver complement to the CT8 LR for precise timbre matching, but rearranged to suit its horizontal orientation. Shown here positioned below the screen, it could equally well be placed above,
thanks to the adjustable midrange/tweeter head.
Midrange
Some things don’t change. For 25 years ar amid fiber has been outperforming pretenders to its position as the number one material for midrange driver cones. Its woven structure resists the concentric standing waves that blur the sound from conventional cones, and presents the most immediate parts of the sound spectrum in all their
true colours. Lending support is B&W’s FST™ technology: a foamed polymer surround that mirrors the mechanical properties of the aramid fiber, absorbing residual resonances and bending waves in the cone. A formidable partnership.
Technical Specifications
| Technical Features |
Adjustable midrange/tweeter head aramid fiber® FST™ midrange Composite sandwich cone bass Matrix cabinet Active bass crossover Laser alignment device |
| Description |
3-way closed-box system |
| Drive units | 1 x ø25mm (1 in) cloth dome high-frequency 1 x ø150mm (6 in) woven Aramid Fibre FST™ mid-range 2 x ø200mm (8 in) Paper/Aramid Fibre bass units |
| Frequency range | -6dB at 23Hz and 40kHz |
| Frequency response | |
| Dispersion | |
| Sensitivity | 93dB spl (2.83V, 1m) (mf/hf) |
| Harmonic distortion | |
| Nominal impedance |
8Ω (minimum 4Ω) |
| Crossover frequency | |
| Recommended amplifier power |
50W – 1000W into 8Ω |
| Max. recommended cable impedance | 0.1Ω |
| Dimensions |
Height: 1100mm (43.3 in) |
| Net Weight |
85kg (187 lb) |
| Finishes |
Cabinet: Black |
