See nothing, hear everything

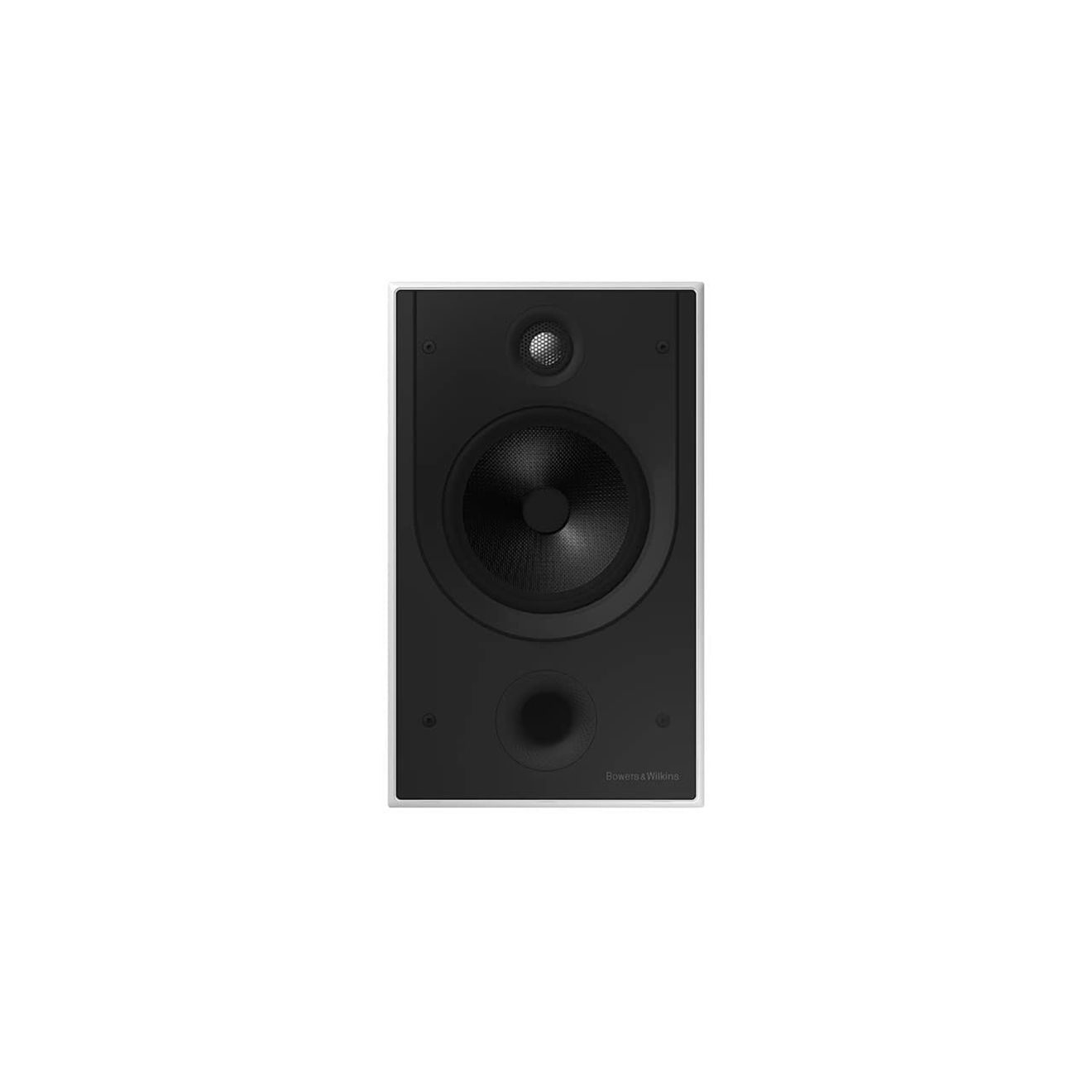

CWM8.5 D is a two-way in-wall loudspeaker. It offers exceptionally
high performance from a compact loudspeaker.
It features a decoupled Diamond dome tweeter and a single 7inch
bass/mid Continuum driver with anti-resonance plug.
For optimum discretion when installed, the Continuum cone is given
a dark finish.
Technical Specifications
Description: 2-way in-wall loudspeaker
Technical features:
Diamond Dome, Nautilus™ tube-loaded tweeter
Anti-resonance plug
Flowport™
Drive units:
1x ø25mm (1in) Diamond Dome, Nautilus™ tube-loaded tweeter
1x ø180mm (7in) Continuum cone bass/midrange driver with anti-resonance plug
Frequency range: (-6dB) 35Hz - 35kHz
Recommended Amplifier Power: 120W
Sensitivity: 89dB
Nominal Impedance: 8Ω
Frame height: 411mm (16.2in)
Frame width: 247mm (9.7in)
Cut-out height: 395mm (15.5in)
Cut-out width: 231mm (9.1in)
Protrusion: 8mm (0.3in)
Net weigh:t 3.5kg
Back Box: BB CWM8.5
