See nothing, hear everything

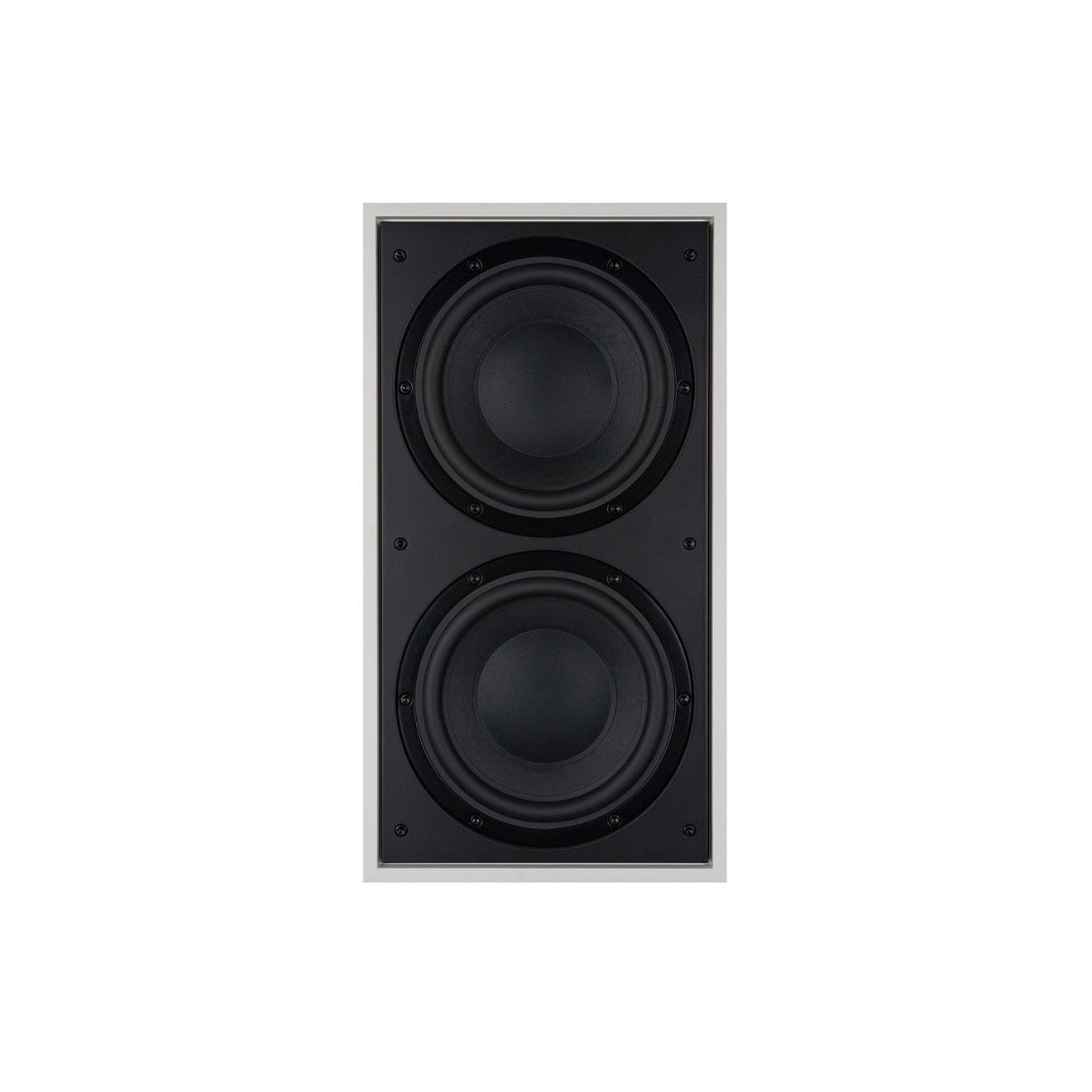

Need big sound, slamming bass and audiophile bass extension, but don’t want to see where it comes from? Then the new ISW-4 in-wall subwoofer is the product for you. Its two long-throw 200mm drivers allows the ISW-4 to move large volumes of air needed for high-quality low-frequency output, but is nicely hidden away inside a wall. Powered by a separate audiophile-
standard 250W Class D amplifier the SA250 Mk2, the system keeps its cool even when the music movie action is whipping up a storm.
Technical Specifications
| Description |
In wall subwoofer system with external rack- mount amplifier |
| Driver units |
2 x 200mm (8 in) Paper/Aramid Fibre cone |
| Frequency range |
-6dB at 17Hz and 290Hz adjustable (EQ at A) |
| Frequency response |
±3dB 21Hz - 200Hz adjustable (EQ at A) |
| Bass extension |
-6dB at 17Hz (position A) -6dB at 21Hz (position B) -6dB at 24Hz (position C) |
| Power Handling |
200W 8Ω (minimum 6.3Ω) |
| Dimensions |
Height: 494mm (19.5 in) Width: 264mm (10.4 in) |
| Cut-out size |
Height: 485mm (19 in) Width: 255 (10 in) |
| Net Weight |
6.4kg (14.1lb) |
| Finish Frame/Grille |
Semi-matt white suitable for customising or pre-painting |
| Accessories | Pre-mount kit for new construction |
| Back Box |
BB ISW4 |
| Box |
Height: 1406mm (55.4 in) Width: 345mm (13.6 in) Depth: 85mm (3.4 in |
| Net Wight |
9.6kg (21.2lb) |
