ROTEL CD11 MKII CD PLAYER

Vendor

ROTEL

Regular price
$749.00
Sale price
$749.00
Regular price
Sold out
Unit price
per
Tax included.



The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.



ICTexas Instruments premium
32-bit/384kHz
Digital to Analog Converter

Tray loading CD mechanismSmooth tray loading
CD mechanism

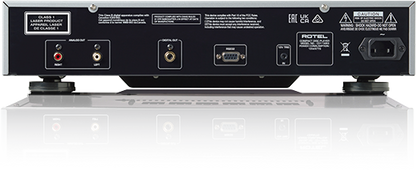

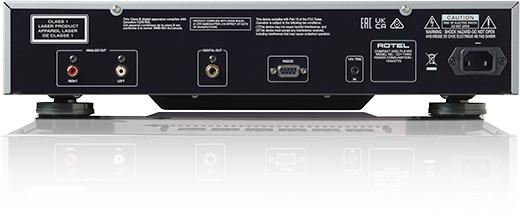

Outputs including
RCA analogue and
Coaxial digital

12 volt trigger12 volt trigger input

Remote ControlIncludes remote control





Engineered with care.


Dimensions (W × H × D)
430 × 98 × 314mm
17" × 3.8" × 12.4"

Front Panel Height
80mm (3.15")

Power Requirements
230V, 50Hz

Power Consumption
15W

Standby Power Consumption
<0.5W

Net Weight
6.2kg (13.7lbs.)

BTU Rating
40 BTU/h


Components


Total Harmonic Distortion + Noise
0.009% @ 1kHz

Frequency Response
20Hz - 20kHz ±0.5dB

S/N Ratio (IHF "A" Weighted)
>125dB

Dynamic Range
>99dB

Digital to Analog Converters
Texas Instruments

Channel Balance
±0.5dB

Channel Separation
>115dB @ 10kHz



Product Description

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.

The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

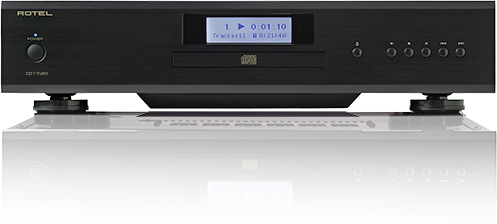

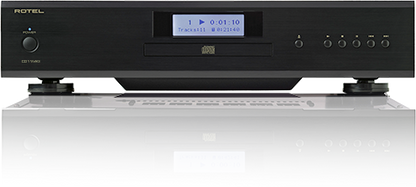

The CD11MKII is available in both black and silver colors.



More Specifications
Intermodulation Distortion
0.009% @ 1k Hz

Phase Linearity
± 0.5 degree

Analog Output impedance
470Ω

Digital Output
0.5 V, Peak to Peak

Load Impedance
75Ω
