Details & Specifications
Technical Information
- Number of Processing Channels: 11.4
- Subwoofer Out: 4 (Independent)
- Number of Power Amps: 9
-
Power Output: 105 W (8 ohm, 20 Hz-20 kHz, 0.08% 2ch Drive)
135 W (6 ohm, 1 kHz, 0.7% 2ch Drive) - Multi-Source / Multi-Zone: 2
- Front Display: 1 line FLD
- GUI Languages: 9 (English / Deutsch / Français / Italiano / Español / Nederlands /Svenska / Pусский / Polski)
- System Remote Control: RC-1262
- Power Consumption in W: 660W
- Power Consumption No-Sound (ECO on/off) in W: 60W / 100W
- Standby Consumption in W: 0.1
- CEC Standby Consumption in W: 0.5
- Network Standby Consumption in W: Less than 2.0

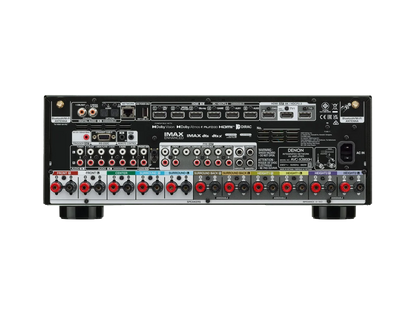

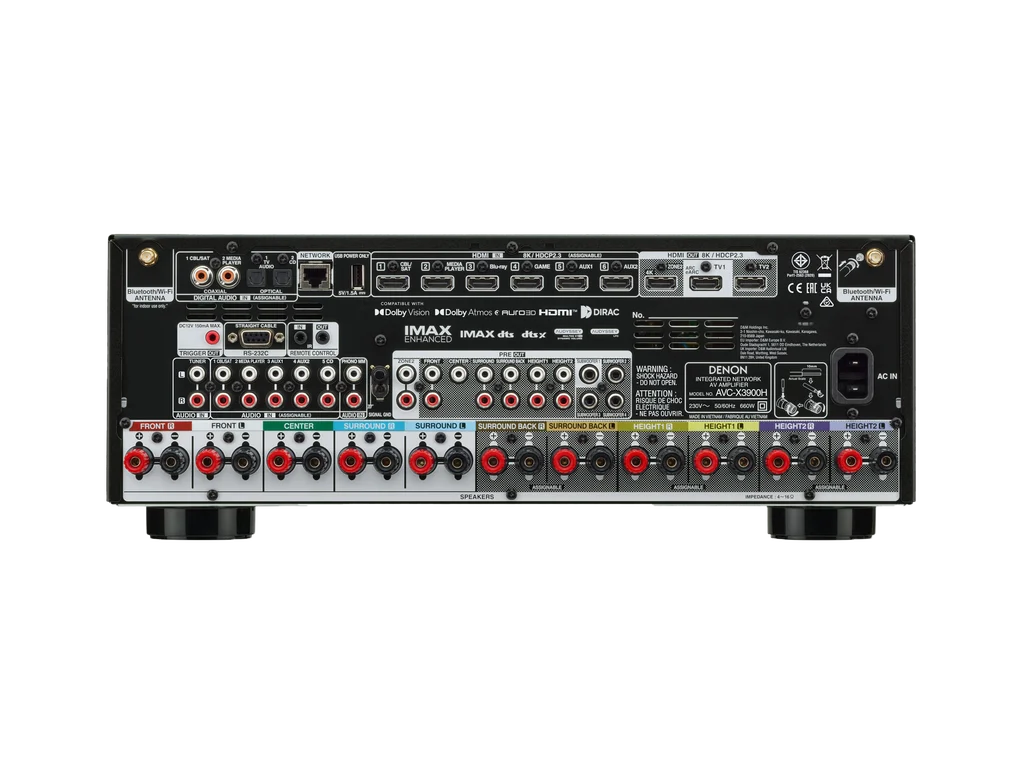

Inputs/Outputs
- HDMI In/Out: 6/2
- Analog In/Out: 6/-
- Phono (MM) In: Yes
- Digital In: Optical, Coaxial 2, 2
- Multi-zone Analog Preouts: 1
- Multichannel Pre-Out: Yes (11.4)
- Number of Speaker Terminals: 11
- Speaker A/B: Assignable
- Bi-amp Drive: Assignable
- Multi-Zone Speaker Terminal: Assignable
Dimensions
- Antenna:Horizontal: (W × D × H) in mms 434 × 389 × 168
- Antenna:Vertical: (W × D × H) in mms 434 × 389 × 236
- w/o Antenna: (W × D × H) in mms 434 × 378 × 168
- Weight in kgs: 12.55
