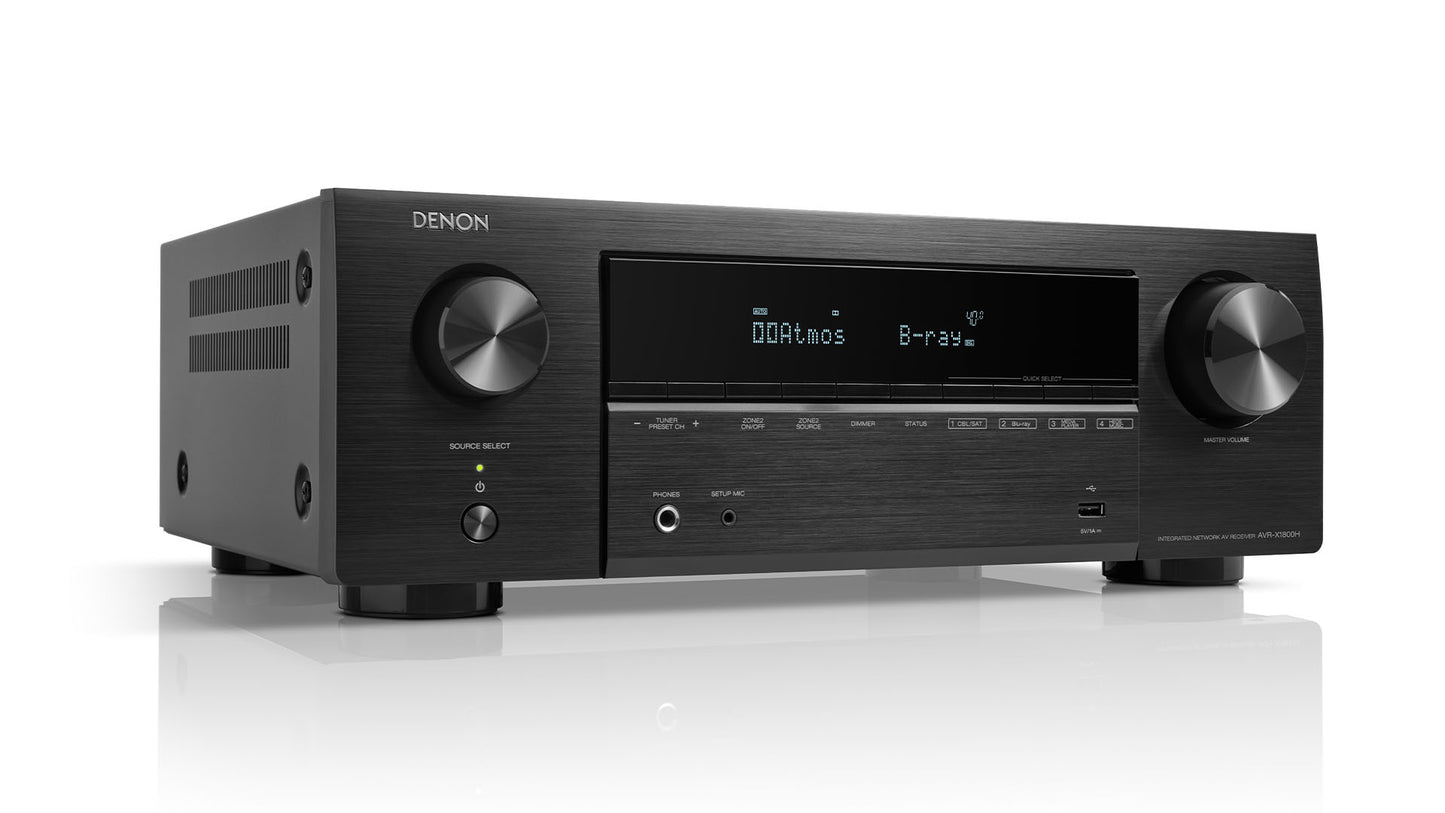

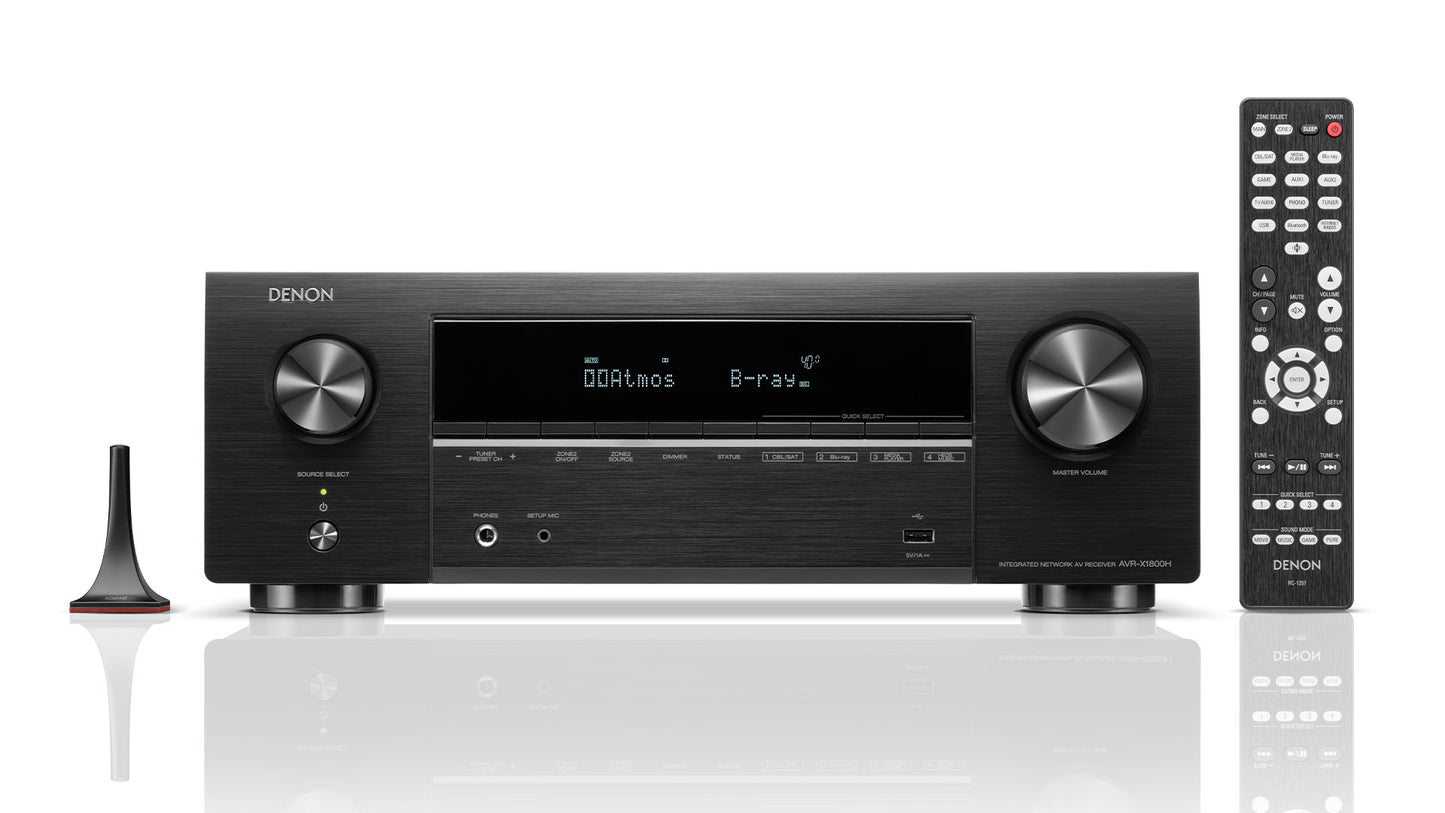

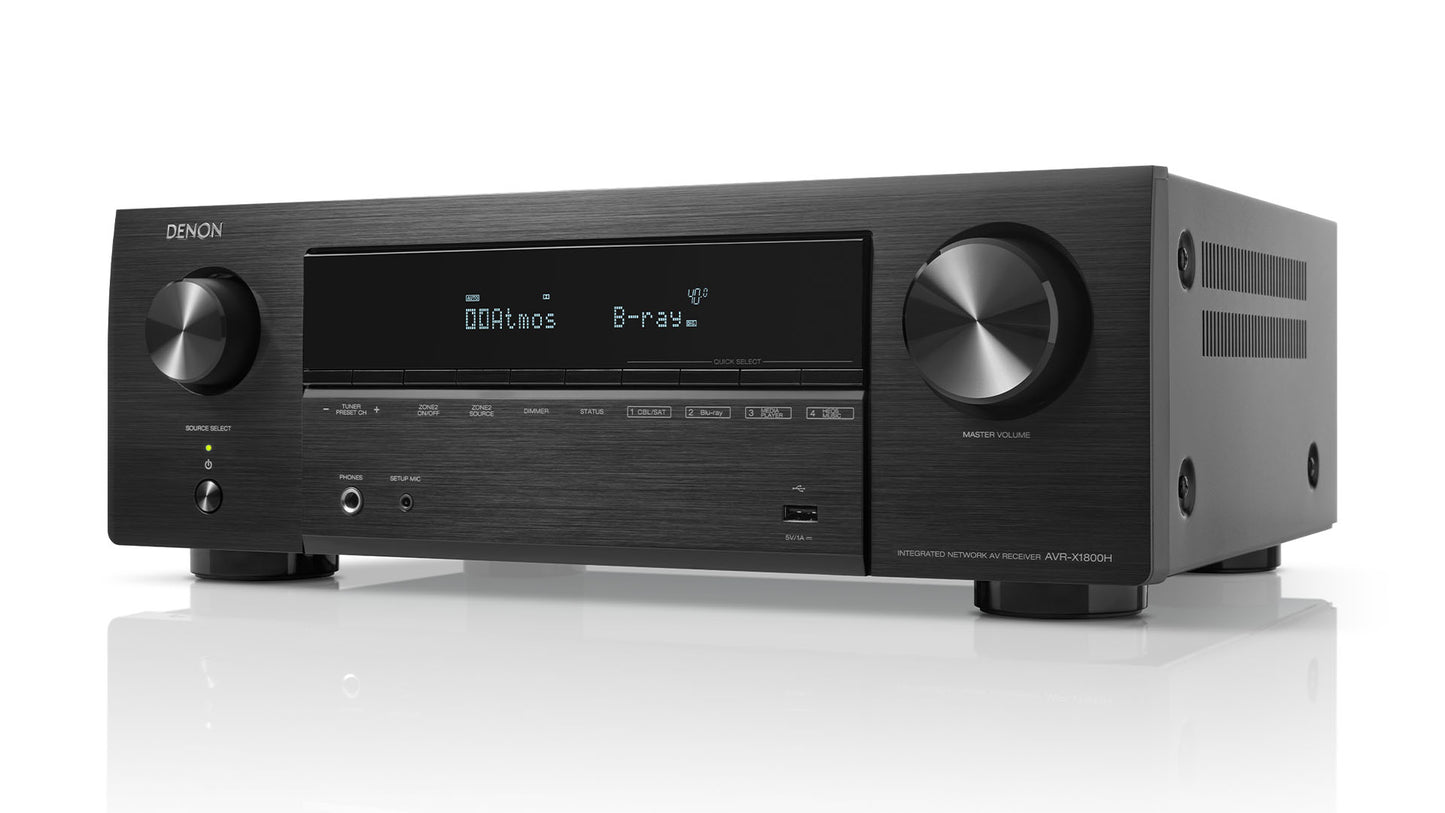

AVR-X1800H
8K video and 3D audio experience from a 7.2-channel receiver
Overview
Enjoy incredible 8K video and 3D audio from the AVR-X1800H. It easily fills small to medium-size rooms with brilliant audio from a 7.2 or 5.2.2 set up with Dolby Atmos and DTS:X. And with HEOS® Built-in, you can wirelessly stream music and share with every HEOS-enabled speaker around your home.
- Key Features
Specifications
- Multichannel Surround
Sound Enhancements
Discrete Power Amplifier
7
Pure Direct
Audyssey
MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume
/
Audyssey APP support
Audyssey MultEQ X compatible
Speaker Setup Presets
2
Compressed Audio Restorer
Network
HEOS Multiroom and Streaming
Lossy Formats: MP3 / WMA / AAC
/ /
Lossless Formats: FLAC / ALAC / WAV
/ /
DSD Audio Streaming
up to DSD5.6
FLAC HD 192/24
WAV 192/24
ALAC 192/24
Gapless Playback
(FLAC, WAV, ALAC, DSD)
AirPlay 2
Roon Tested
Internet Radio
TuneIn
/ / /
Amazon Prime Music*
Amazon Prime Music*
Android / iOS
Compatible with Remote APP for Tablets
Android / iOS/Amazon Kindle
Ethernet Ports
Wi-Fi
Bluetooth
Bluetooth Headphone transmission
Bluetooth Headphone Volume Control
HDMI
HDMI Inputs: Back / Front
6 (3x 8K) / 0
HDMI Outputs: Main / Zone
1 /
HDMI max Resolution (8k / 4k)
8k/60 4k/120
HDMI to HDMI Scaling
up to 8K 60/50
HDMI: 8K / 4K / CEC / eARC
/ / /
HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG
/ / /
HDMI: ALLM / QMS / QFT / VRR
/ / /
HDMI pass-though in standby mode
Multiroom / CI
HEOS Multiroom integrated
TV Sound grouping
Multiroom zones
2
Main room multichannel audio - Zone stereo downmix
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
(2ch) / (2ch) / /
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
/
Webbrowser Setup
IP Control / RS232 Control / Web Control / App Control
/ / /
Remote In / Out
/
Others
Voice Control - Works with Amazon Alexa
Voice Control - Google Assistant / Apple Siri
/
Auto Speaker Setup by Microphone
Audyssey MultEQ XT
Front Display
1 line FLD
Graphic User Interface - GUI
High Definition 1080p
GUI Languages
9
Setup Assistant
Quick Select Plus / Quick Select
/
Firmware Update by Network / USB
/
Variable Cross Over
Optimized Bass Redirection
HDMI Diagnostic Mode
ECO Mode
Auto Power Off
Sleep Timer

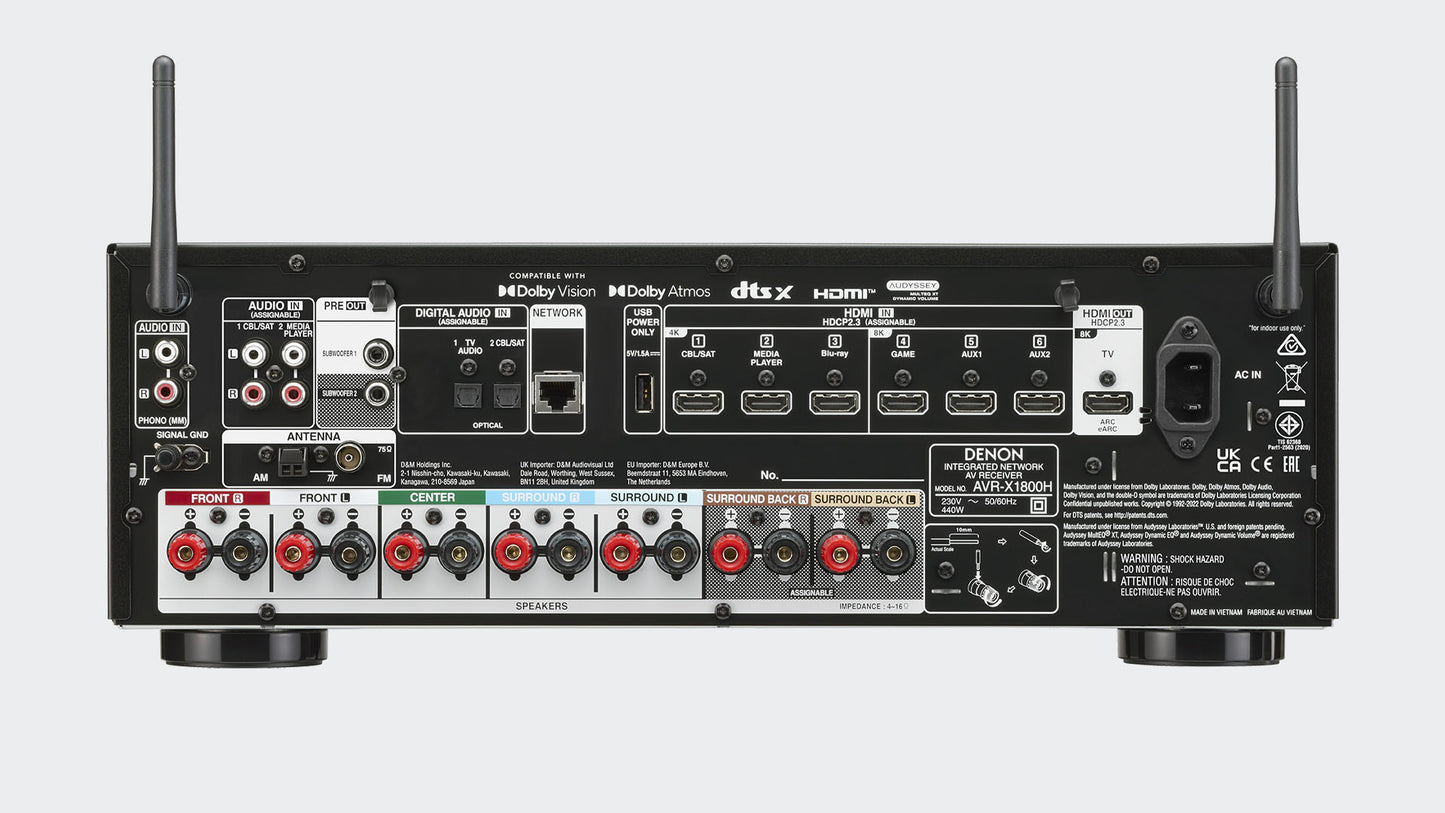

Inputs/Outputs
Composite In / Out
/
Component In / Out
/
HDMI In / Out
1 / 6
Multi-room Video Out: Video / HDMI
/
Analogue In / Out
2 /
Phono (MM) In
Digital In: Optical / Coaxial
2 / 0
Multi-room Out: Analog / Digital
/
Multichannel Pre-Out
(0.2)
Subwoofer Out
2
Speaker Terminal: Gold Plated Screw / Regular Screw
/
Number of Speaker Terminals
7
Speaker A / B
assignable
Bi-amp Drive
assignable
Multi-Room Speaker Terminal
assignable
USB Audio Input Front
USB Power 5V/1.5A Rear
FM Tuner with RDS
Specifications
Number of Poweramps
7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
80 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)
120 W
General
Available Colours: Black / Premium Silver
/
System Remote Control
RC-1257
Power Consumption in W
440
Power Consumption No-Sound (ECO On / Off) in W
29 W / 39 W
Standby Consumption in W
0.1
CEC Standby Consumption in W
0.5
Network Control On Consumption in W
Less than 2.0
Maximum Dimensions
Antenna:Horizontal: (W x D x H) in inches
Antenna:Vertical: (W x D x H) in inches)
【w/o Antenna: (W x D x H) in inches】
434 x 339 x 151
( 434 x 339 x 215)
Weight in kg
8.6
Carton Maximum Dimensions (W x D x H) in mm
523 x 435 x 232
Carton Weight (inc. product) in kg
10.6
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)
145 W
