Features – CEOL N12 DAB
Design all-in-one system with CD player, DAB/FM radio, HDMI ARC and HEOS® Built-in streaming.
Overview
Superb sound from an elegant, compact package. All-in-one system with CD player, DAB/FM radio, HDMI ARC and HEOS® Built-in streaming.
- Key Features
Specifications
- Features

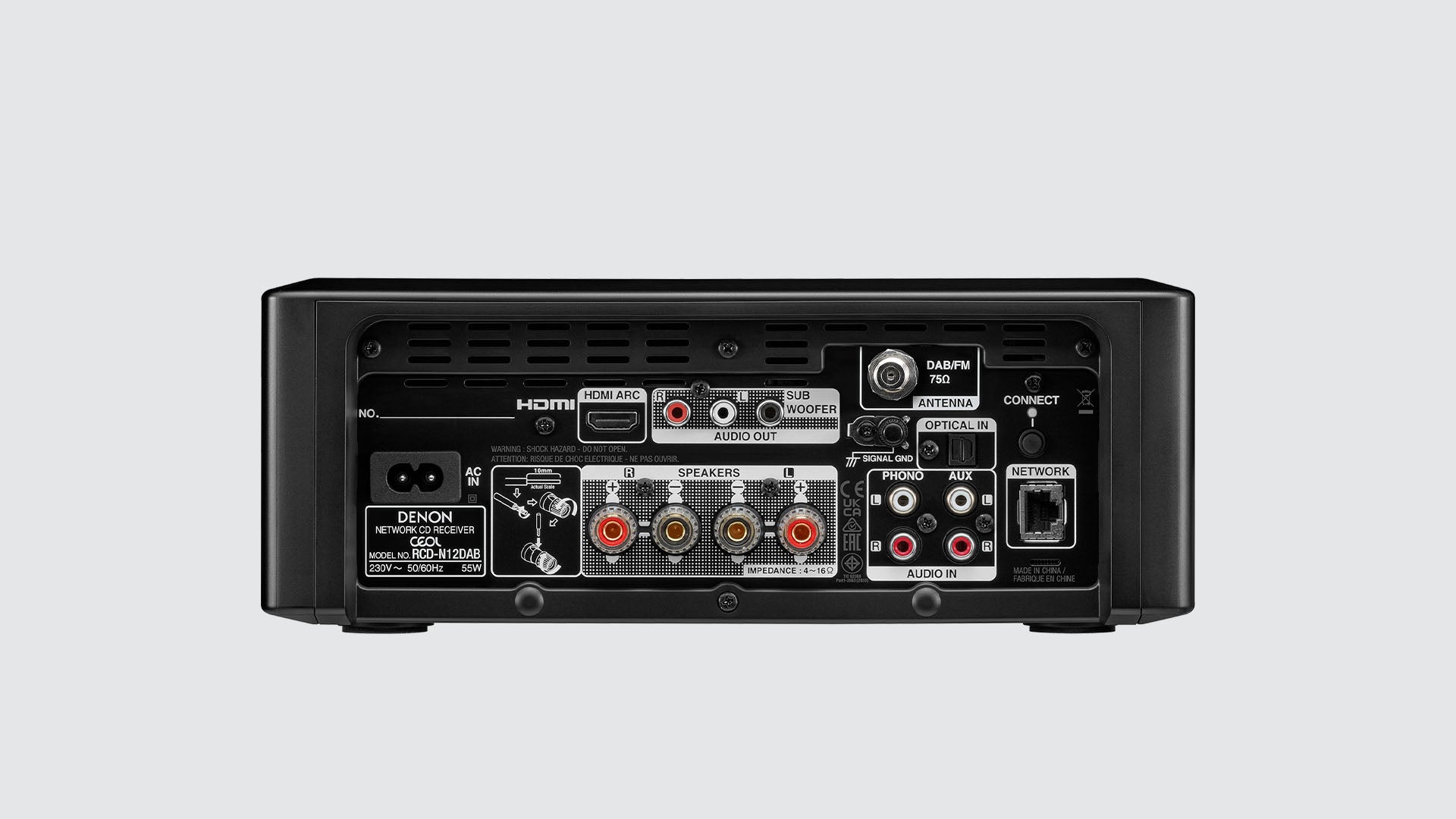

Inputs/Outputs
Analogue Input
2 (AUX, PHONO MM) /
Digital Optical In / Out
1 /
HDMI ARC input
Subwoofer PreOut
Main PreOut
Speaker Terminal: push type / Screw Type
/
Headphone Out
Specifications
Power Output (6 ohm, 1kHz)
65 W / 4 ohms
Number of channels
2
Freq. Response (Analogue In)
10Hz 40 kHz
Signal to Noise Ratio (audio)
90dB
Input sensitivity/impedance (Analogue In)
200mV / 30 kohms
Total Harmonic Distortion (audio)
0.1(1kHz/5W/ 4 ohms)
Freq. Response (Phono)
20Hz 20kHz (RIAA deviation)
Signal to Noise Ratio (Phono)
74dB
Input sensitivity/impedance (Phono)
2.5mV / 47 kohms
Receiving Range Band III
Signal to Noise Ratio DAB (Mono/Stereo)
85 dB
Frequency Range FM
87.5 108 MHz
Signal to Noise Ratio (Mono/Stereo) FM
70 / 70 dB
Total Harmonic Distortion (Mono/Stereo) FM
0.4 / 0.4%
General
Available colors: Black / White / Grey
/ /
Remote Control
RC1255
Power Consumption in W
55
Standby Consumption in W
0.4
DAB antenna included
Maximum Dimensions (W x D x H) in mm
280 x 305 x 108
Weight in kg
3.4
Carton Maximum Dimensions (W x D x H) in mm
365 x 335 x 230
Carton Weight (inc. product) in kg
4.8
What's In The Box
Main unit, remote control, batteries,HDMI cable, DAB antenna, AC cord, quick start guide
