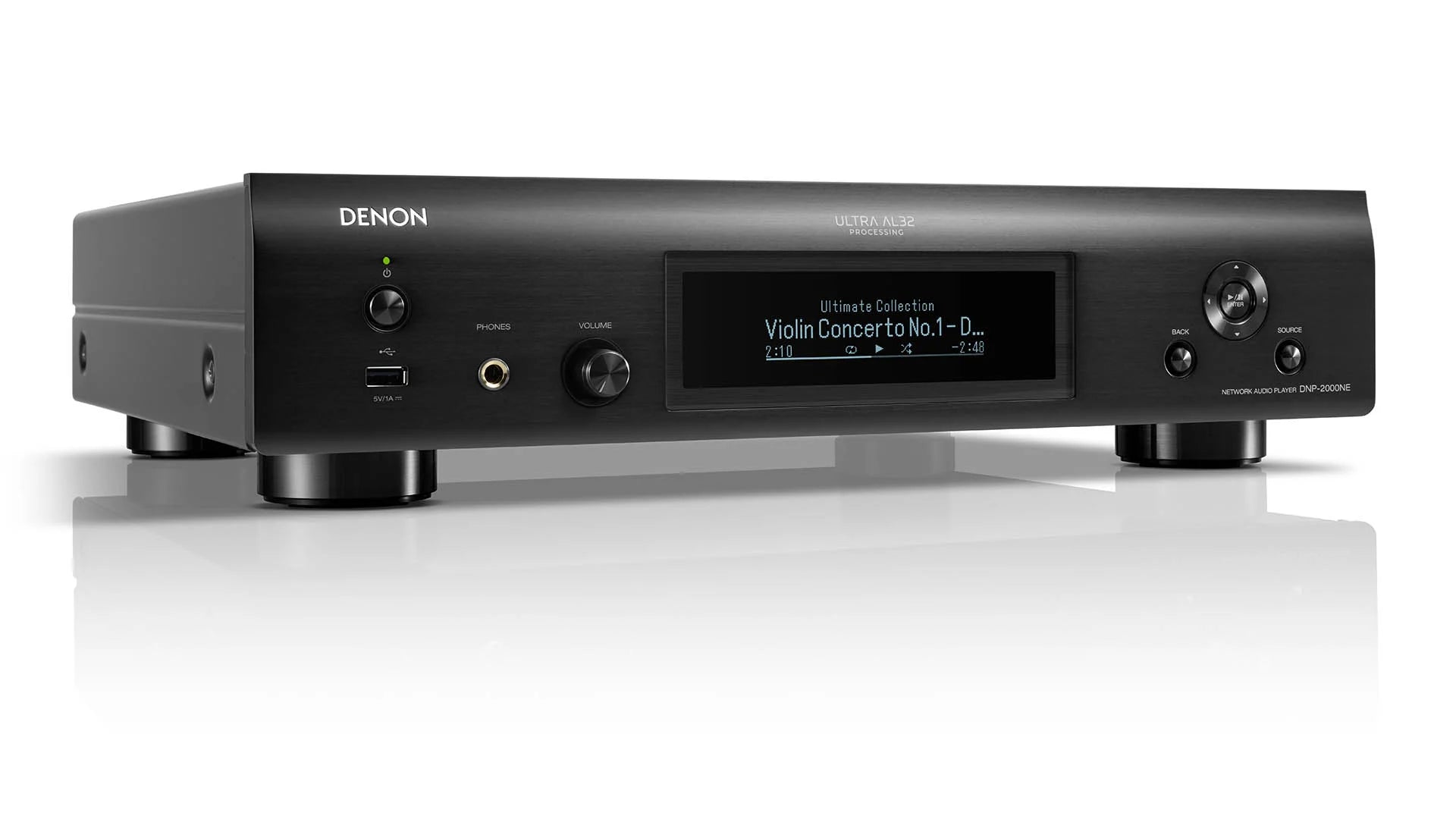

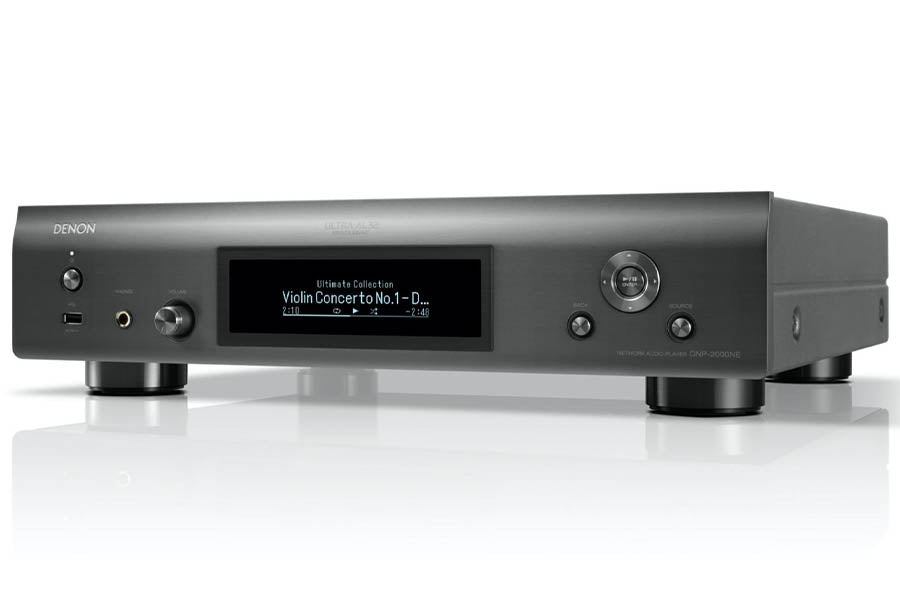

Upgrade any existing audio system to play most digital audio sources—including your television—using HDMI ARC for an improved audio experience. The DNP-2000NE also connects to your home network, so you can enjoy your favorite music services using HEOS® Built-in.
- Key Features
-
-
Rich connectivity: High-quality audio from your digital and streaming sources.
-
Faithful audio reproduction: Ultra AL32 Processing delivers the richly detailed sound the artist intended.
-
Connect directly to your TV: Simple one-cable connection with any compatible HDMI ARC television.
-

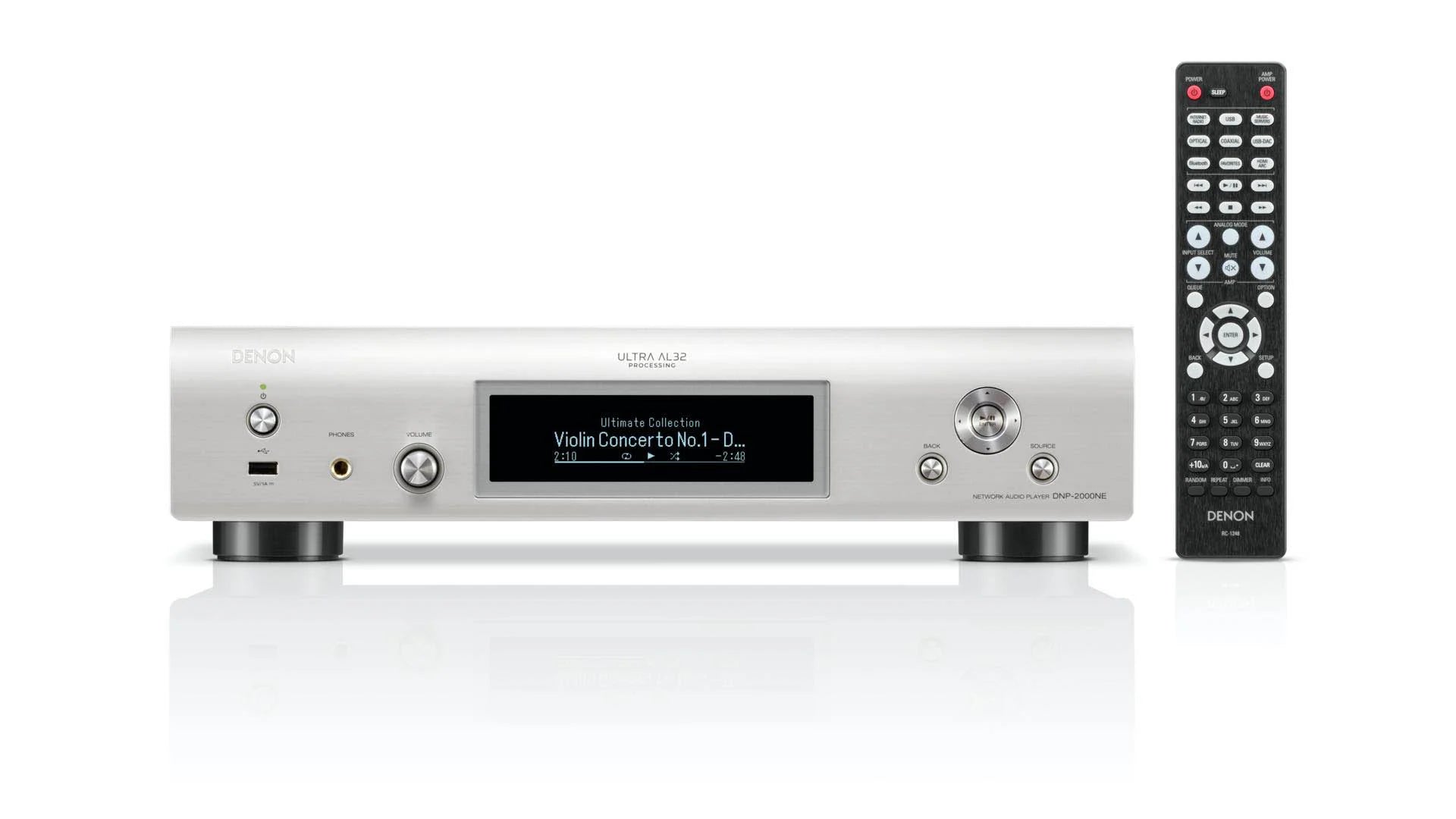

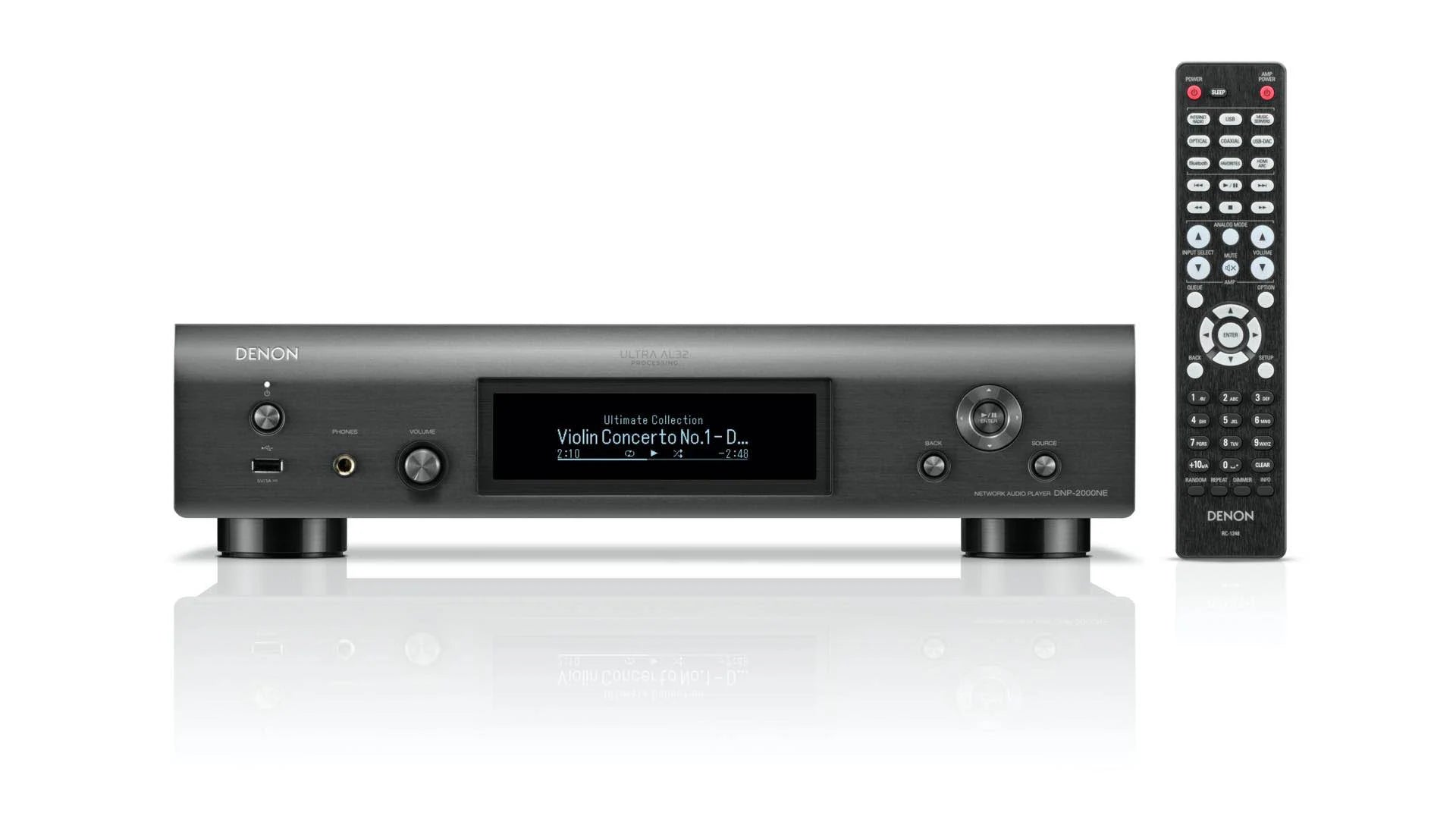

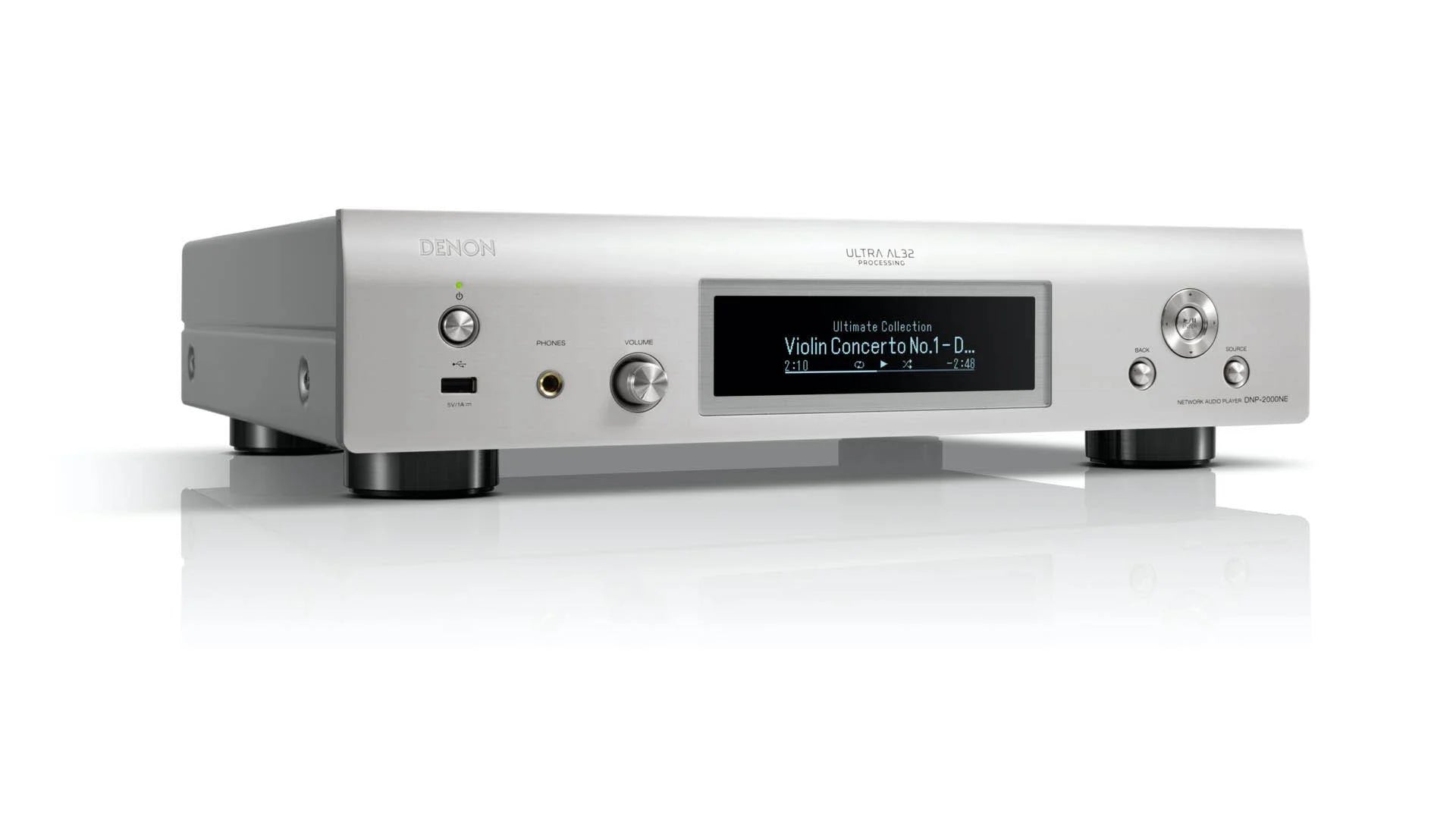

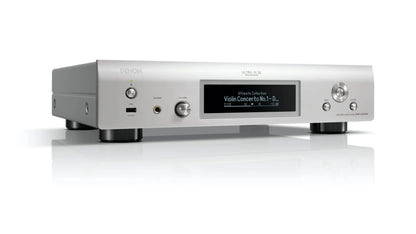

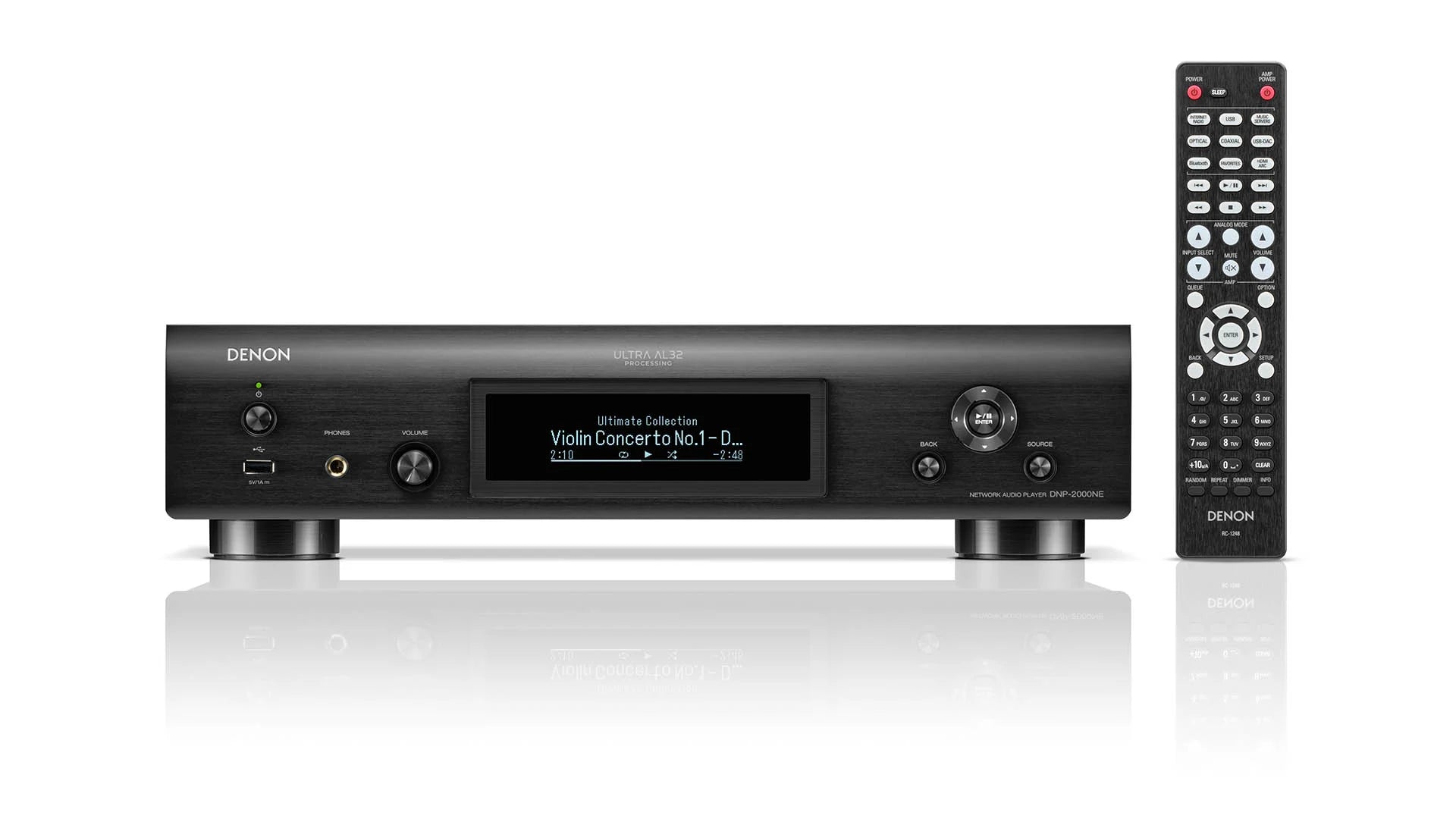

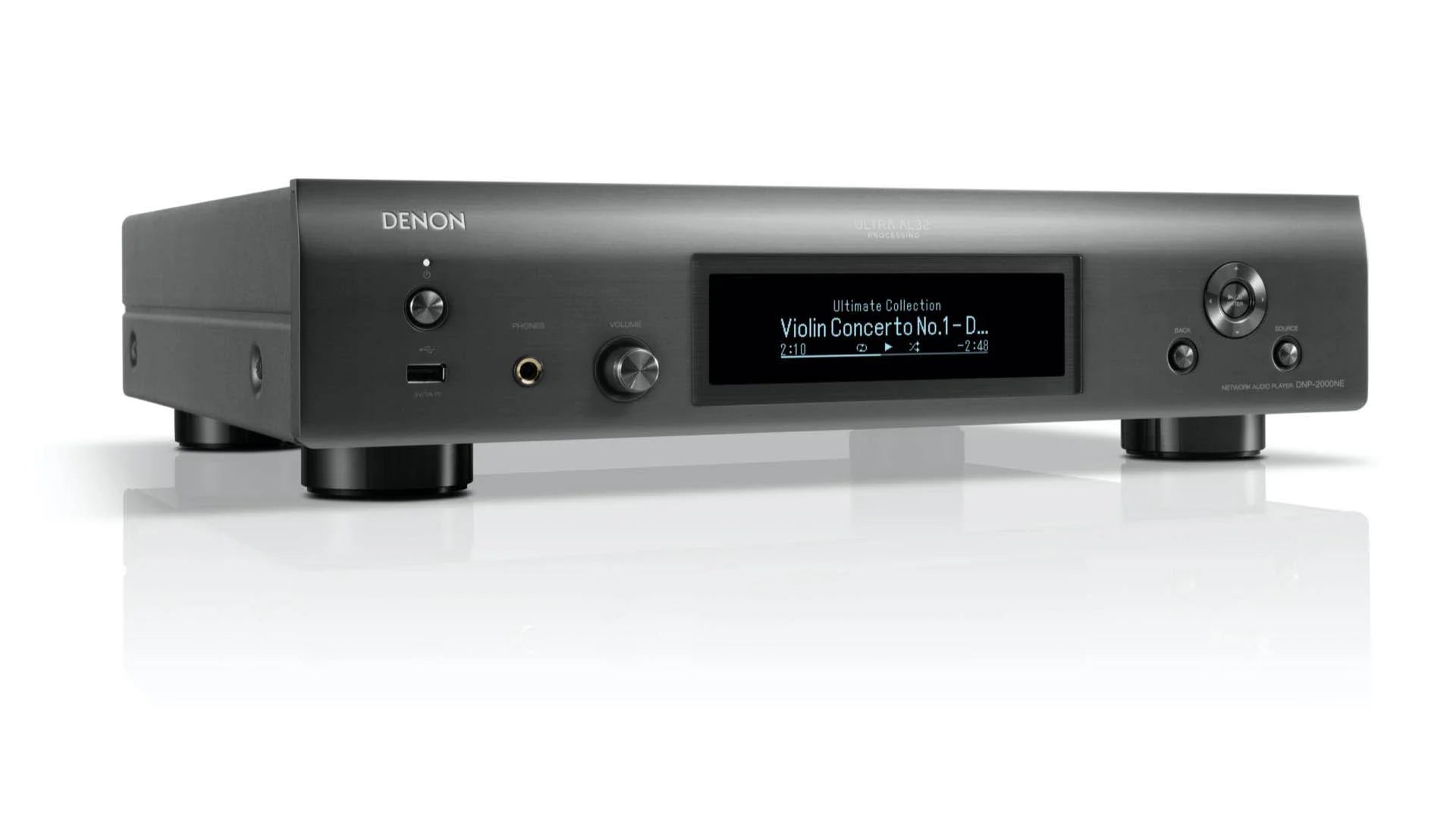

Colors Available: Black, Silver, Graphite
Specifications
- General
-
Unit (W x H x D mm)
434 x 107 x 421
(*includes antenna)
Cabinet Size
434 x 107 x 374
Net weight
9.7 kg
Packaging Dimensions (W x H x D mm)
548 x 210 x 520
Packaging Gross Weight
12.0 kg
Panel Color
Premium Silver/Black/Silver Graphite
Front (Center) Panel
Aluminium
Bottom Layer/Bottom Plate
Double
- Specifications
-
Frequency response
DSD: 2 Hz–50 kHz (-3dB)
PCM(44.1 kHz): 2 Hz–20 kHz
Harmonic Distortion
DSD: 0.0006%
PCM: 0.0008% (24 bit)
S/N
DSD: 120dB
PCM: 118dB
Dynamic Range
DSD: 112dB
PCM: 118dB
Line Output Level
2.2Vrms
Variable Output Level
4.5Vrms
Headphone Output Level
150mW/32 ohms
high gain
Power Consumption
38W
at Standby
0.2W
at Network Control On
(all of Bluetooth, Ethernet, Wi-Fi, USB)
Less than 2W
- Audio Features
-
Output Circuit
Minimum signal path
Power Transformer
EI transformer
H/P Amp Gain Setting
Yes (Low/Mid/High)
DAC Circuit
384 kHz/32 bit
(ES9018K2M) x4
Digital Filter
Fixed
Digital Processing
ULTRA AL32 Processing
Jitter Reducer
Yes
DAC Master Clock Design
Yes
(Does not support network playback)
Asynchronous Mode (for USB B input)
Yes
Isolator (for USB B input)
Yes (and digital inputs)
-
-

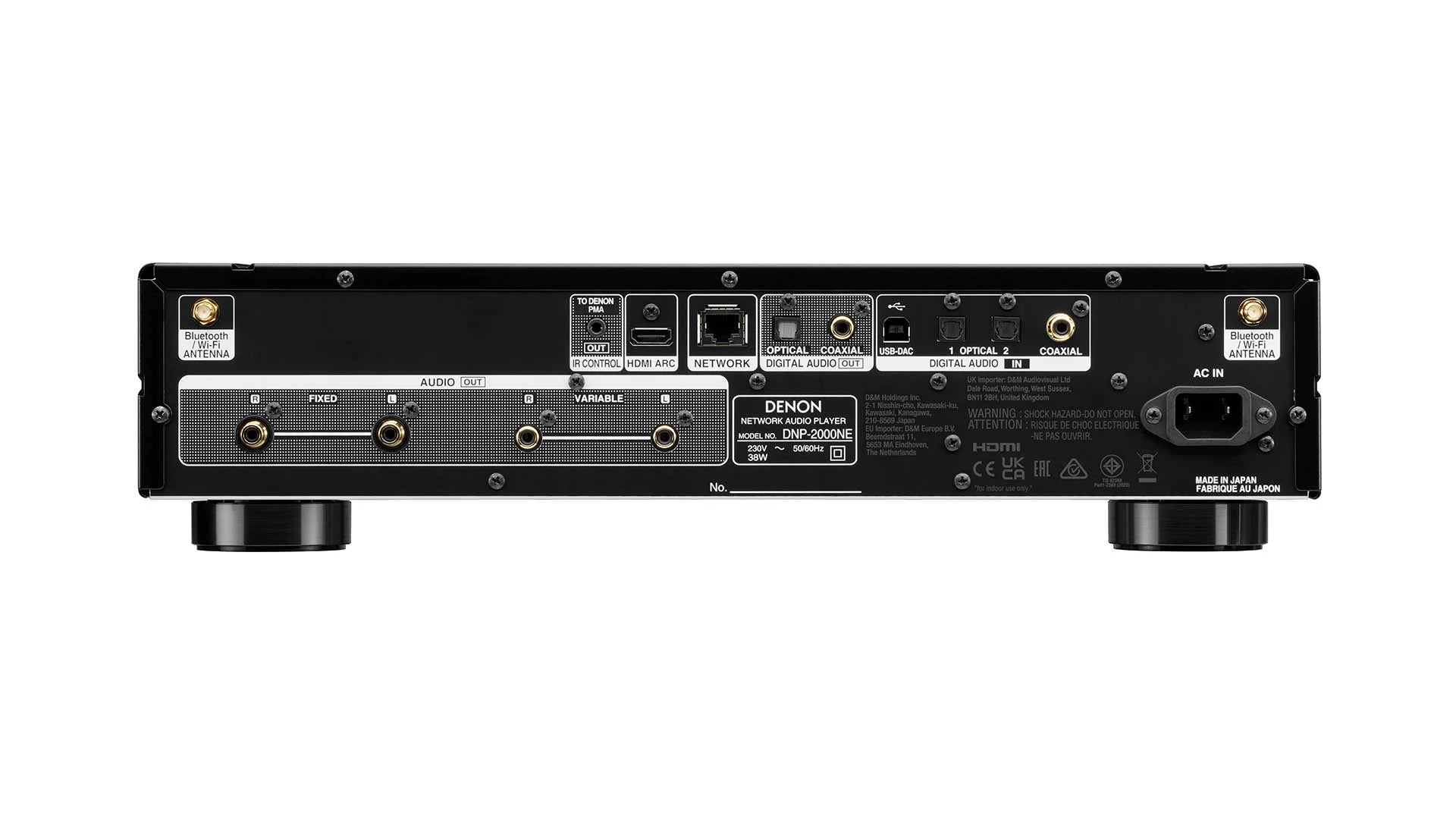

- Connectivity
-
Fixed Analog Output (RCA)
1 L/R independent, gold-plated high-grade brass terminals
Pre/Variable Audio Output (RCA)
1 Pair (gold-plated
elec vol: JRC)
Optical Input/Output (maximum support)
2/1
Coaxial Input/Output (maximum support)
1/1
HDMI Input/Output
1/0 (ARC Only)
Headphone Output
Yes (6.3mm)
Engine (module or main device)
HEOS
Ethernet
Yes
Wi-Fi
2.4 GHz (11b/g/n)
5 GHz (11a/n/ac)
Wi-Fi Antenna
2 external detachable antenna
WPS (Wi-Fi protected setup)
PBC only
Wi-Fi Sharing
Yes (WAC)
WMM
Yes
Wi-Fi Direct
OFF mode
Yes
Wireless Multiroom Audio / HEOS / Apple AirPlay2
Yes / Yes
Supported Audio File / MP3 / WMA / AAC / WAV / FLAC / ALAC / DSD (DIFF/DSF)
Yes / Yes / Yes / Yes (~192 kHz/24 bit) / Yes (~192 kHz/24 bit) / Yes (~192 kHz/24 bit) / Yes (~5.6 MHz)
DSD Native Playback
Yes
Gapless Playback
Yes
(WAV, FLAC, ALAC, AIFF, DSD)
Internet Radio
Yes (TuneIn)
Online Music Service / Spotify Connect / Deezer Premium/Deezer HiFi / Sound Cloud / Tidal / Amazon Music Unlimited/Amazon Music HD/Prime Music / Napster / Mood Mix / Other
Yes / Yes / Yes / Yes / Yes/Yes/Yes / Yes / Yes /
AirPlay
Yes (AirPlay 2)
Roon Certificaton
Yes (Roon Tested)
Firmware Update/Charged Upgrade
Yes /
USB A
Front x 1
Support format
FAT 16/32, NTFS
Gapless Playback
Yes
(WAV, FLAC, ALAC, DSD)
USB Firmware Update
Yes
USB B (USB DAC)
Rear x 1
Supported Audio File / PCM / DSD / MQA
~384 kHz/32 bit / ~11.2 MHz /
Roon Certificaton
Yes (Roon Tested/HEOS)
BT Rx
Yes (SBC)
OFF mode
Yes
App
HEOS app
Remote Controller
Yes
(New system remote controller to control PMA-1700NE)
Unit Control (button)
Tact Switch: 8
Power, Back, Source, Up, Down, Left, Right, Play/Pause
Unit Control (knob)
1
Phones level
LED
Power: 1 red/green
Front Panel Display
OLED 3-line display
Dimmer for Front Display
Bright/Dim/Dark/Off
Voice Assistant
Yes
