Overview

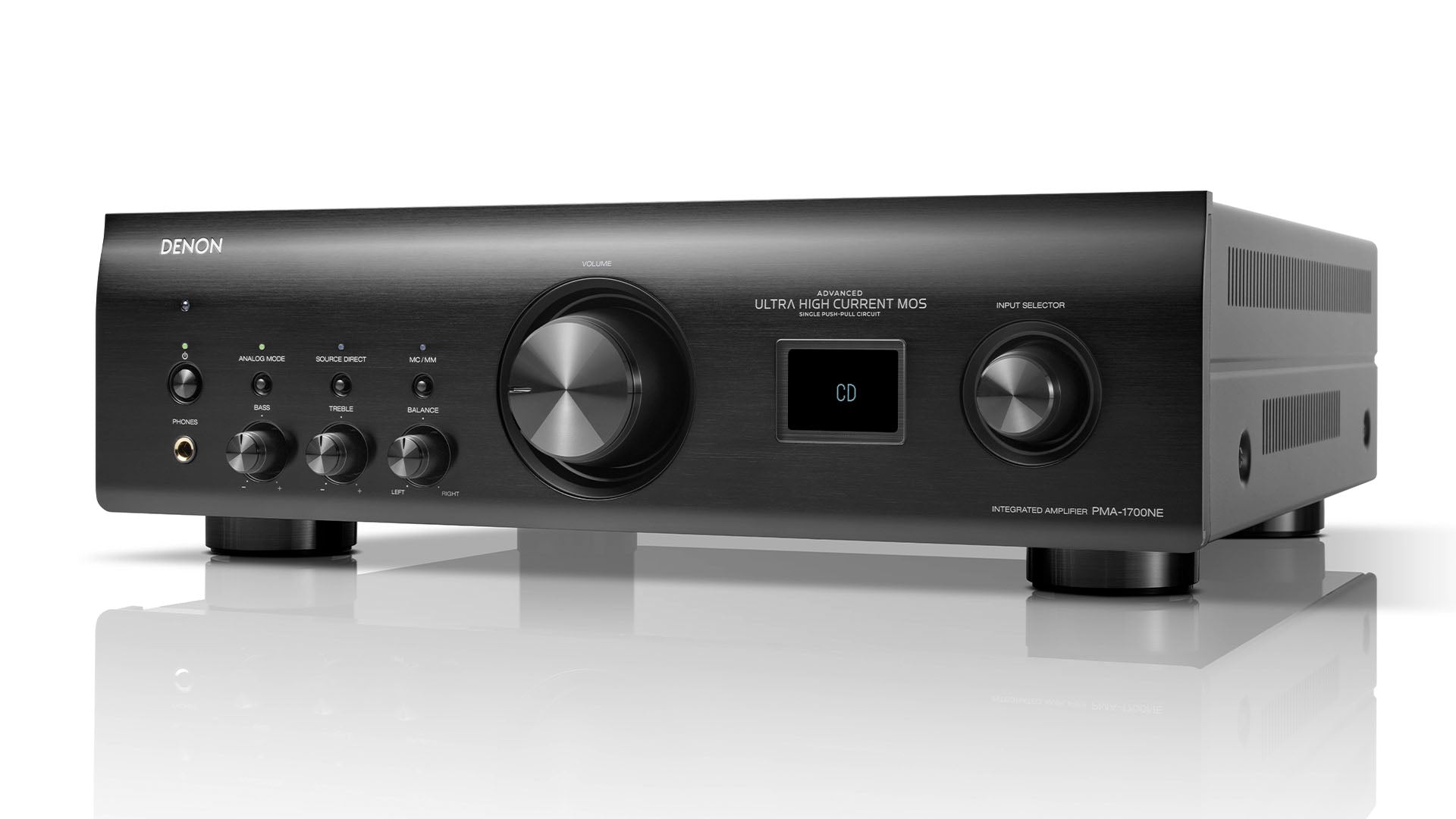

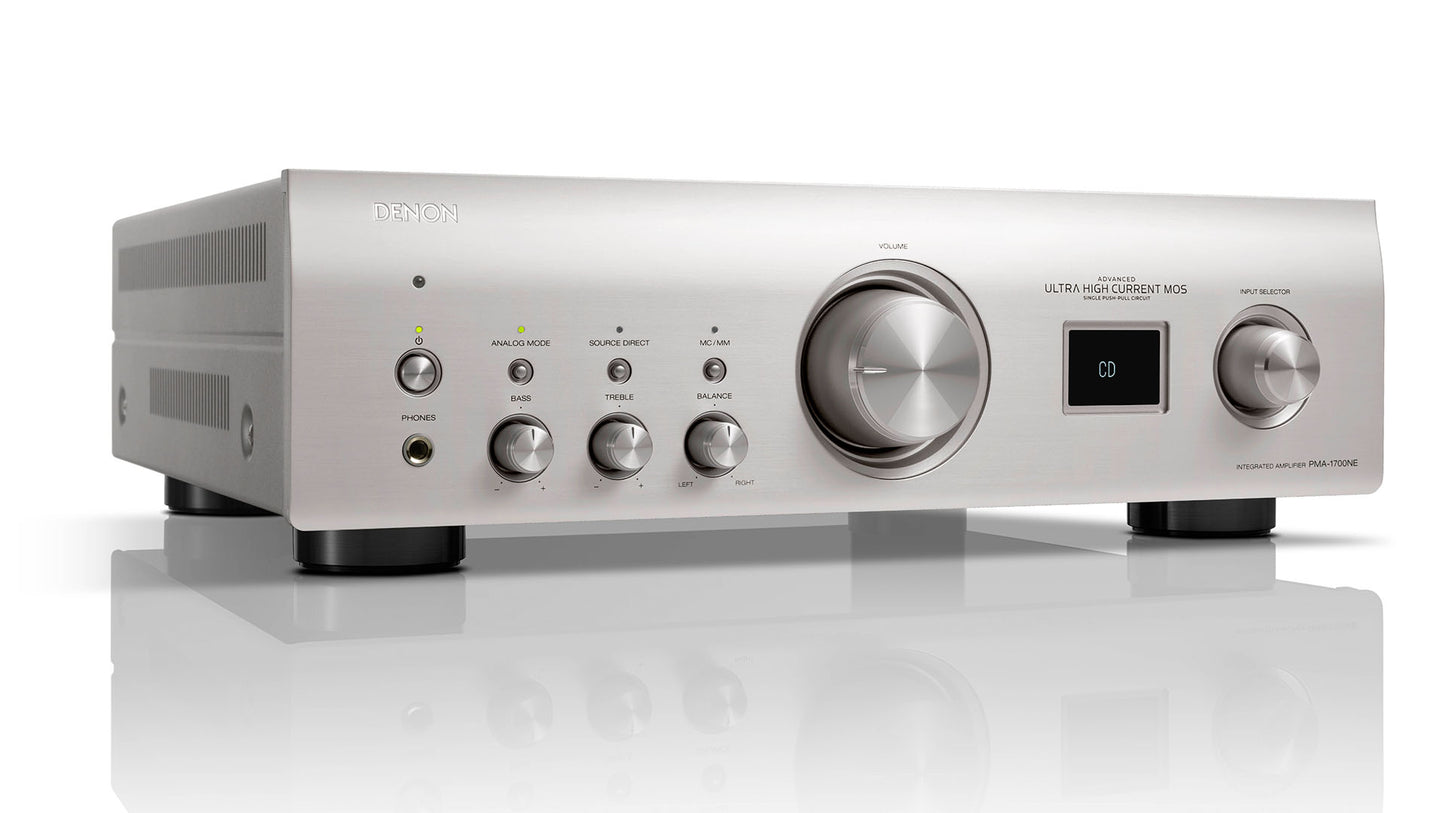

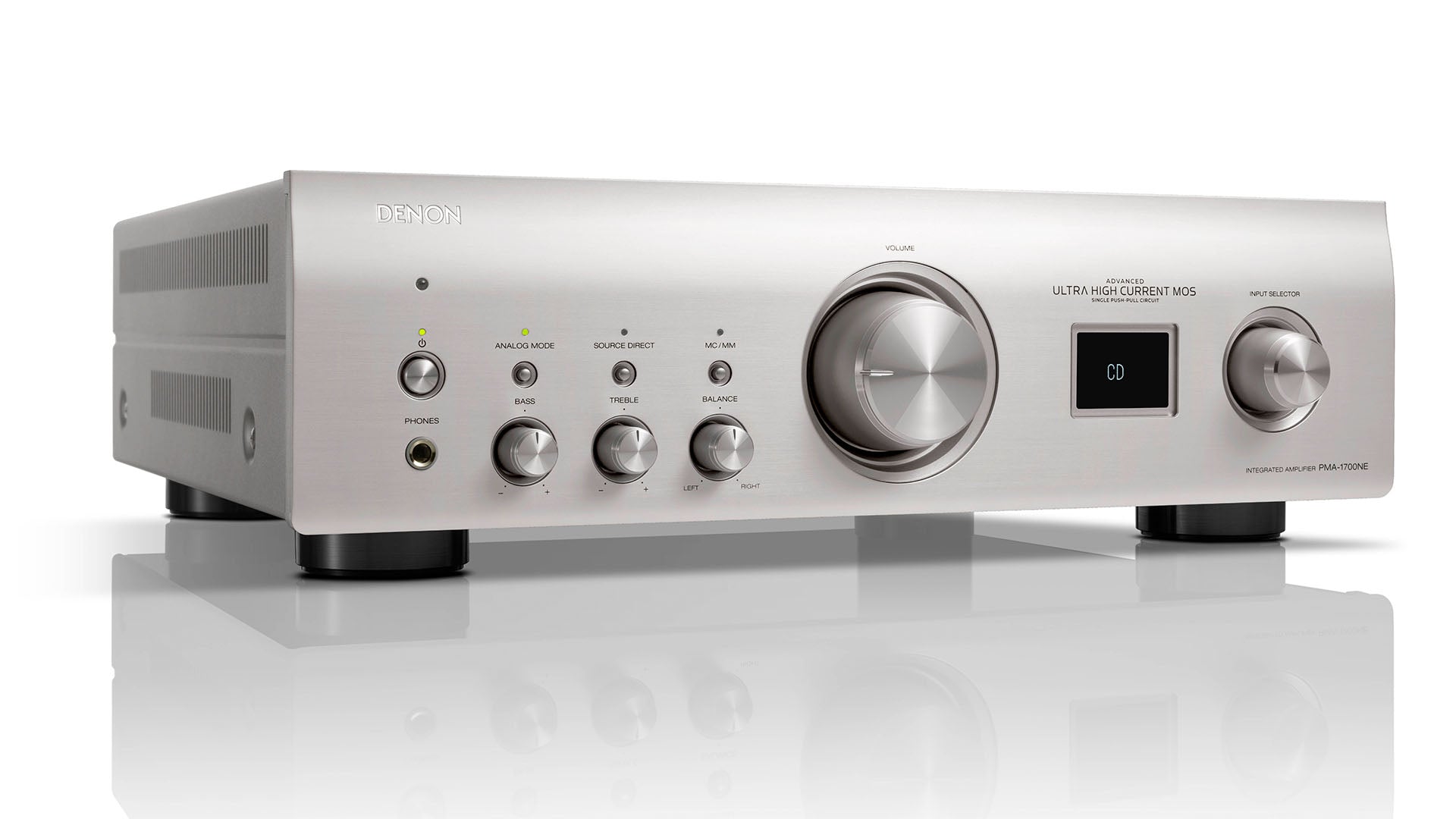

With ultra-high current single push-pull circuit power and Advanced AL32 Processing, the Denon PMA-1700NE retains the detail of the original recording. Listen to your favorite music via the two digital inputs, a rear USB-B input, MM or MC phono equalizer—or go analog with the included DAC mode.
Features
- High-power 140W integrated amplifier
- Advanced AL32 Processing Plus
- USB-DAC supporting 11.2- MHz DSD and 384-kHz/32-bit PCM
- MM and MC phono equalizer
- High-precision electrical controls
- Optical and coaxial digital inputs
- External pre-amp input terminals

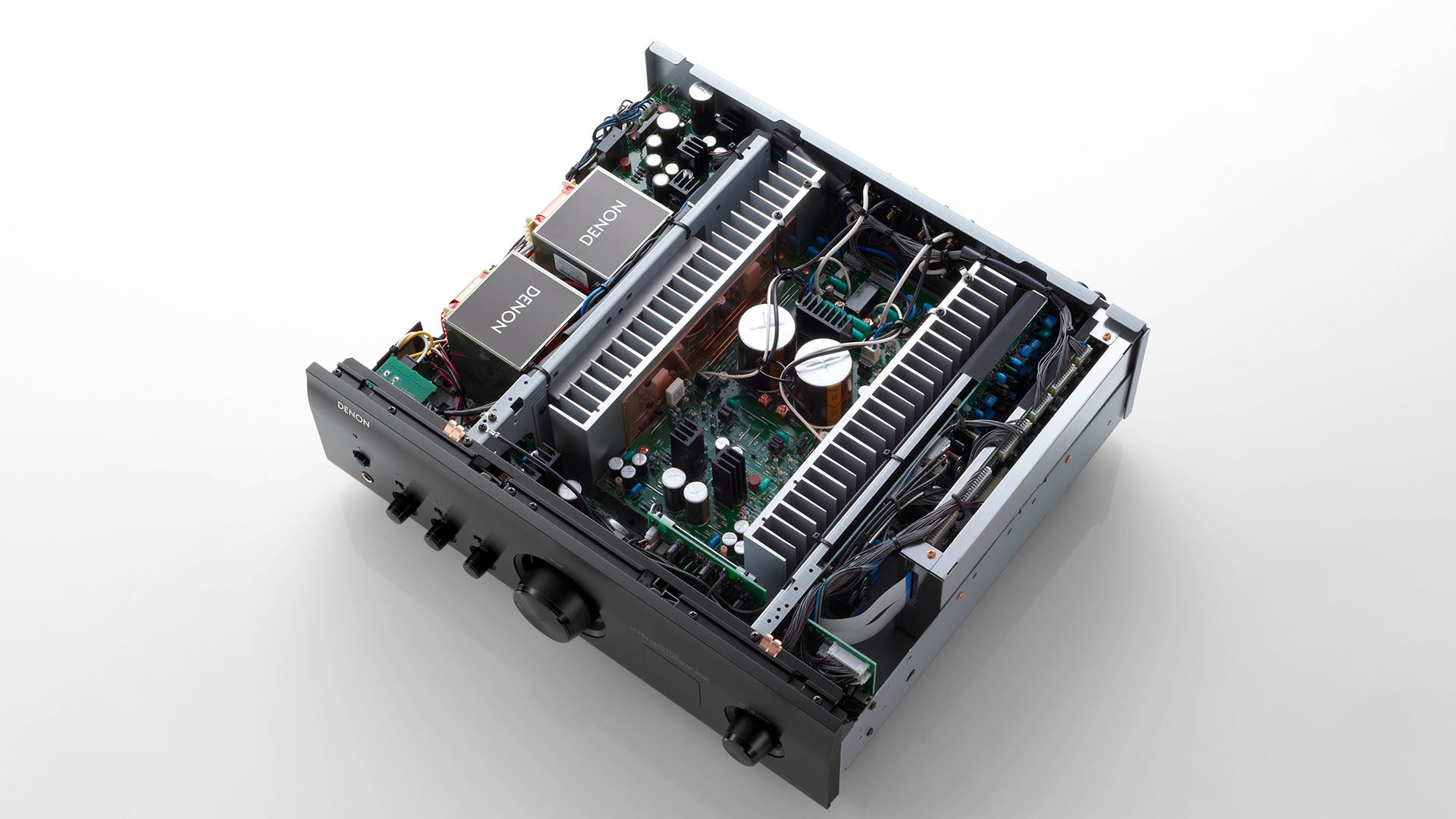

- Six-block chassis configuration and direct mechanical ground construction
- Build integrity with thoughtfully selected components
SPECIFICATIONS
AUDIO
Rated Output Power
70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Input Sensitivity: CD/LINE/RECORDER
125 mV / 19 kohm
Total Harmonic distortion
0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200 μV / 100 ohm
Input Sensitivity: Power Amp input
0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
POWER CONSUMP.
Power Consumption
295W
at Standby
0.2W TV autoplay off
0.4W TV autoplay on
ANALOG AUDIO
Power Amplifier Circuit
New UHC-MOS
Single Push Pull (7)
DAC Circuit
PCM1795
Pre Amplifier Circuit
Variable Gain Preamplifier (OP AMP)
Source Direct
Yes
Bass / Treble / Mid / Balance Control
Yes / Yes /
/ Yes
Analog Amp Mode
Yes (button on front panel)
DIGITAL AUDIO
Digital Processing
Advanced AL32 Processing Plus
DAC Master Clock Design
Yes
Asyncronous mode (for USB-B input)
Yes
CONTROL/OTHER

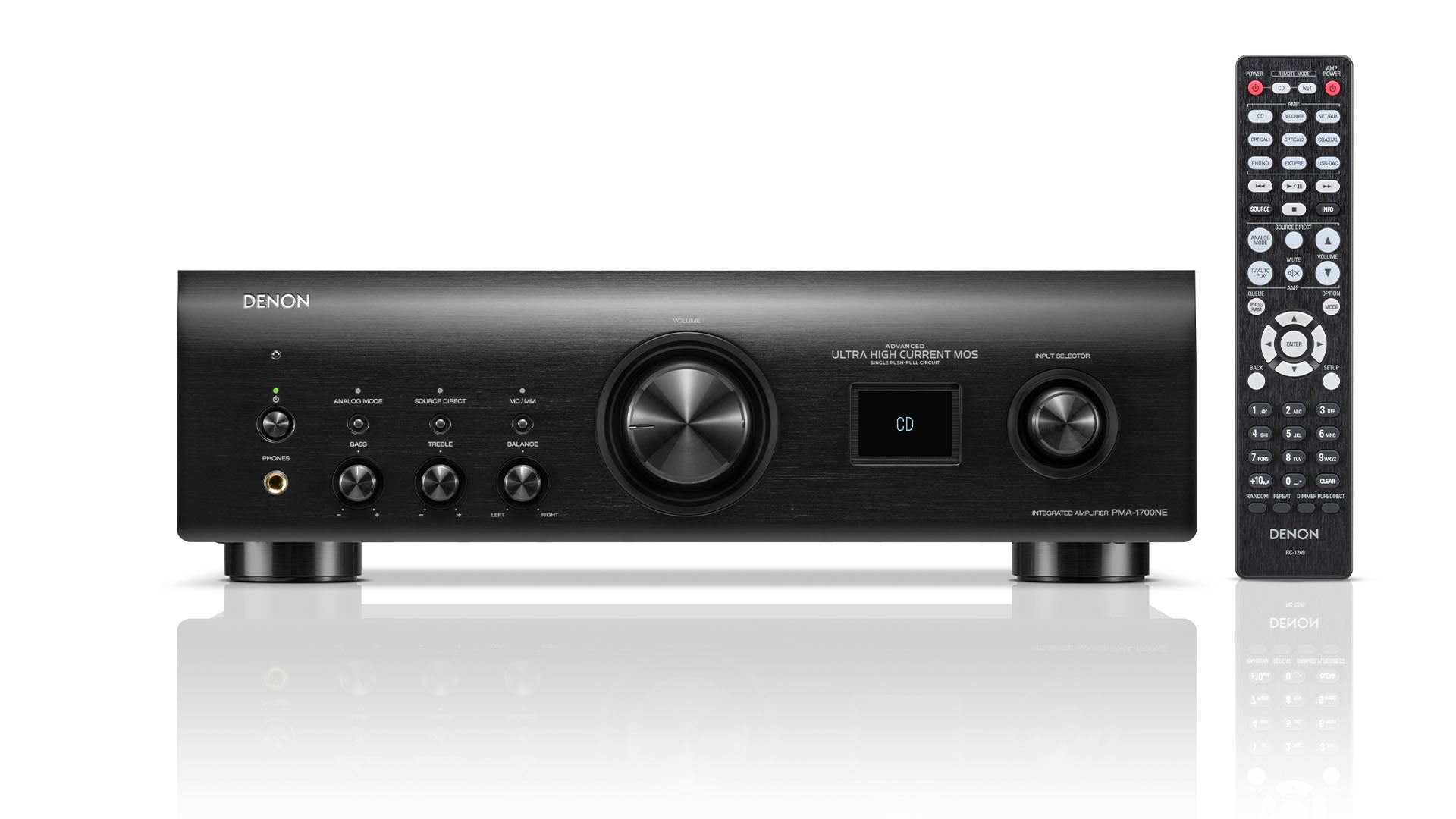

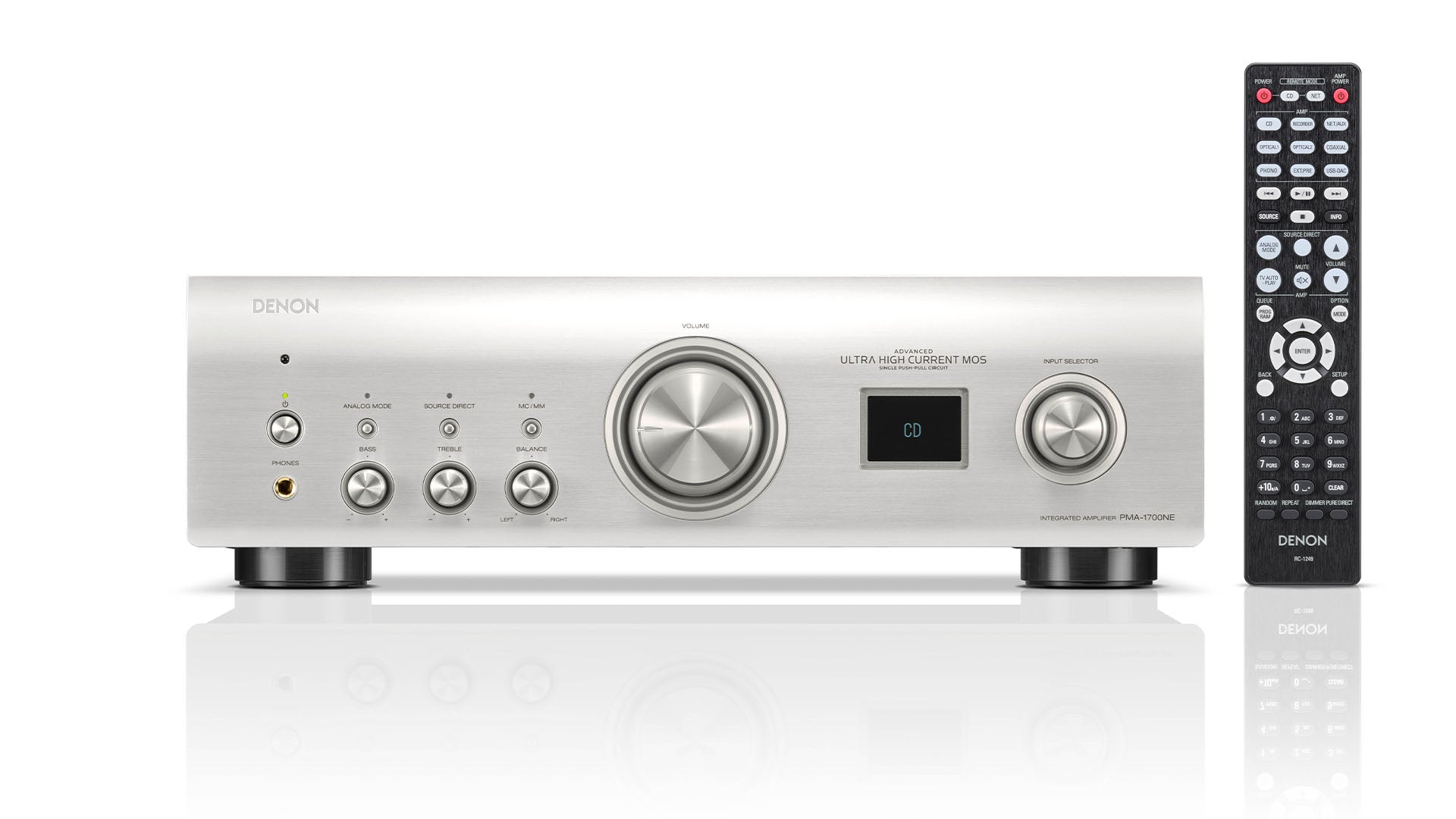

Remote Control --> RC-1249
Remote Control Bus Terminal
Yes
NETWORK
Wi-Fi
No
HEOS
No
USB
USB B (USB DAC)
1 (Rear)
PCM Sample Rate
~384kHz/32bit
DSD Audio Streaming (DoP)
~11.2MHz
GENERAL
Unit (W x H x D mm)
434 x 135 x 410
Net weight
17.6kg
Heatsink for Power Amplifier
Extruded Aluminum
