Overview

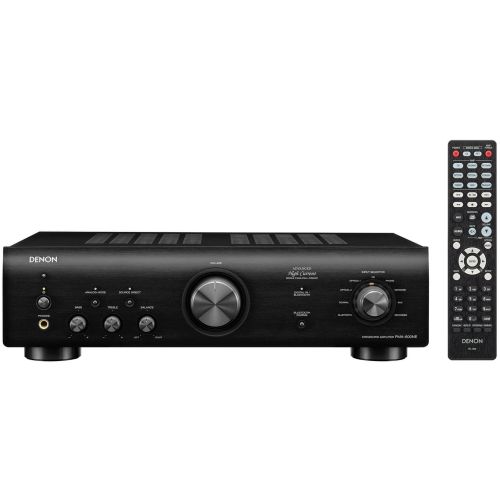

Designed for the aspiring music enthusiast, the Denon PMA-600NE is the superior choice for those who want to build their first 2-channel Hi-Fi system. The PMA-600NE allows for the most vivid and emotional reproduction of vinyl and hi-res audio with digital inputs and a built-in phono equalizer. Listen to your favourite music via Bluetooth as well for seamless streaming of nearly unlimited songs. From deep bass to detailed highs, enjoy your favourite high-resolution audio content with the 192kHz/24bit D/A converter. At 70 Watts (4ohm, 1kHz, THD: 0.7%) per channel, the PMA-600NE supplies enough power to drive your speakers for optimal sound. Connect the PMA-600NE to your favourite components with the two Optical and one Coaxial digital input. Powered by the Denon Advanced High Current (AHC) single-push-pull circuit power amplifier, the PMA-600NE provides exceptional sound quality that balances high power with delicate, musical details.
Features
- 70 Watts per channel power output (4ohm, 1kHz, THD: 0.7%): Get the maximum performance to drive your favourite loudspeakers
- Advanced High Current (AHC) single-push-pull circuit power amplifier: Wide bandwidth captures everything from deep bass to detailed highs
- Bluetooth support: With an antenna inside the unit, actively pair your smart phone to the PMA-600NE via Bluetooth to stream music
- Includes two digital Optical inputs for your TV or digital device: The PMA-600NE automatically detects the signal input from your TV and outputs elevated sound
- Built-in 192kHz/24bit D/A converter: Experience high-resolution audio playback to enjoy the highest quality of your favourite songs
- Impeccable sound engineering with carefully selected and rigorously tested Hi-Fi parts: Enjoy the exceptional sound that is the signature of all Denon amplifiers
- Analog Mode for pure audio reproduction: Divided circuitry includes a Bluetooth OFF option to help remove influence from any digital interruptions
- High performance MM phono equalizer amp: Connect your turntable and enjoy vinyl tracks
- Deeper bass: Enjoy rich, evenly dispersed bass with a subwoofer output
- Vibration-resistant design with Direct Mechanical Ground Construction: Listen to music with pristine detail and quality that’s unaffected by the environment
- Thoughtful amplifier design with short signal paths: Hear pure, superior sound with a condensed relay for Source Direct function from the shortest signal path
- Main transformer with separate coiled wires for audio/control circuits: Eliminates interference to optimize sound quality
- Micro-processor with Stop Mode: Protects audio signal from external noise during playback
- Denon-proprietary Signal Level Divided Construction (SLDC) chassis: Amplify and transmit delicate musical signals to the speakers to capture the nuance of the music
- Engineered with a more than 100-year Denon legacy in audio excellence: Trust this high-quality and durable system to deliver the ultimate audio experience
Specifications
Channels
2
Digital in: USB-B / optical / coaxial / USB-A
/ 2 / 1 /
Sample Rate digital In
192 kHz / 24-bit
DAC chip
PCM5141
Bluetooth / aptX / NFC
/ /
Analog Mode
Advanced HC-TR single push pull circuit
Wide range amplifier
High current dynamic power supply
Power amp discrete construction
Micro processor auto off
Balance / Bass / Treble / Loudness
/ / /
Shottky diodes
Solid Heat Sinks
Source Direct
Audio Inputs
5
Digital in: USB-B / optical / coaxial / USB-A
/ 2 / 1 /
Phono Input: MM / MC
/
Audio Outputs
1
Pre-out / Main-in
subwoofer /
Gold plated Cinch
Number of terminals
2
Remote Control Bus in / out
HEOS Link compatibility: IR / IP
/
Headphone Out
Output power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%)
45 W
Output power 4 Ohm (1 kHz, T.H.D. 0.7%)
70 W
Total Harmonic Distortion
0.02%
Input Sensitivity: MM
2.5 mV / 47 kohm
Signal to Noise Ratio: MM/MC
84 dB /
Input Sensitivity: High level
110 mV / 30 kohms
Signal to Noise Ratio: High level
105dB
Treble Control
± 8 dB at 10 kHz
Bass Control
± 8 dB at 100 Hz
Available Colours: Black / Premium Silver
/
Metal Front Panel
Power Consumption in W
185
Standby Consumption in W
0.3
Auto Power Off
Remote Control
RC-1234
System Remote Function
Maximum Dimensions (W x D x H) in mm
434 x 308 x 121
Weight in kg
6.8
Carton Maximum Dimensions (W x D x H) in mm
520 x 370 x 207
Carton Weight (inc. product) in kg
8.1
