The EVO3 Gemini is the next generation of the Discovery Series, benefiting from the same award-winning filter network as EVO3 Polaris but reconfigured to feature just two output sockets rated at 10A. EVO3 Gemini is a cost-effective upgrade designed for simple two box audio or audio-visual systems or as a means to extend power outlets from the IsoTek Mosaic range of Sine wave generators, for example, Genesis One.
The EVO3 Gemini is a compact in size power distribution strip measuring just 243mm in length, 80mm wide and just 45mm in height. It features two individual outlets which reference back to the central PCB. Most power cleaners of this style join output sockets together, running each in series, this is an error as Differential Mode Noise created by your connected electronics will cross contaminate from one output socket to the next. The EVO3 Gemini has a unique delta filter topology ensuring class-leading filtration of both Common Mode and Differential Mode mains noise, delivering super-clean power to two outlets – each one independently isolated to prevent cross-contamination of mains noise created by connected electronics. Furthermore, 13,500Amps of instantaneous protection is provided, safeguarding valuable equipment via IsoTek’s unique sequential and repeatable protection system.
|Number of outlets||2|
|Type of outlets||UK, EU, US, CH, AU & ZA|

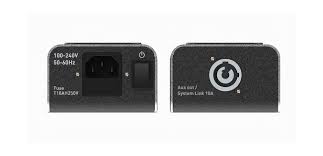

|Standard mains inlet||10A IEC C14|
|Mains voltage||100-240VA 50-60Hz|
|Maximum current||10A HRC|
|Dimensions||80 x 45 x 243mm (W x H x D)|
