JBL HDI 1600 BOOKSHELF SPEAKER
JBL HDI 1600 BOOKSHELF SPEAKER
Couldn't load pickup availability
6.5-inch (165mm) 2-way Bookshelf Loudspeaker

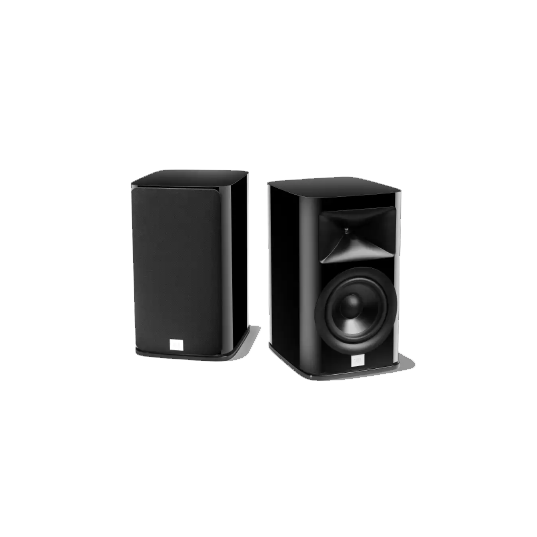

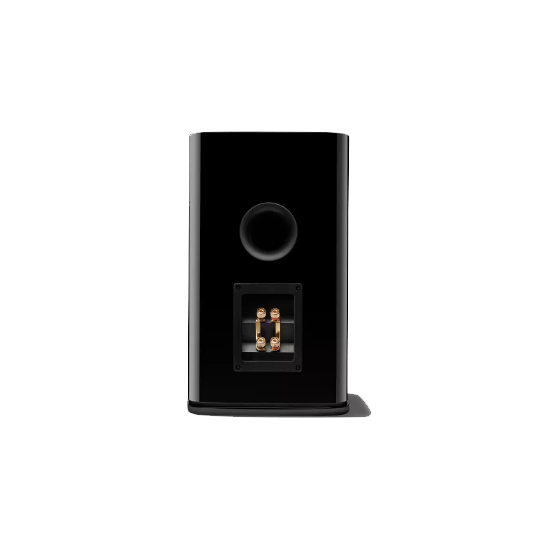

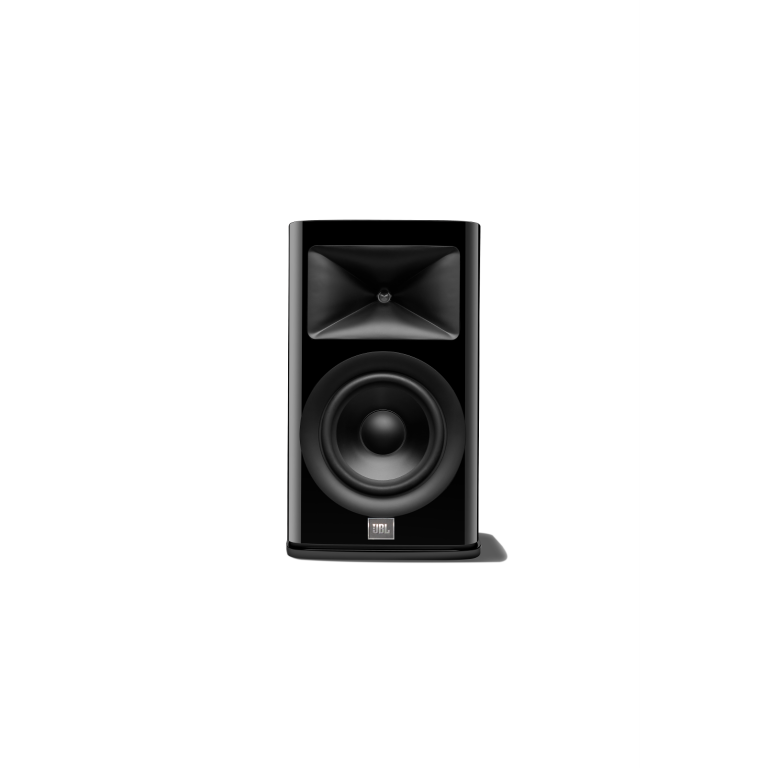

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-1600 delivers exceptional performance from a compact enclosure. This bookshelf loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) waveguide technology, the patented 2410H-2 1-inch (25mm) compression driver, and a 6.5-inch (165mm) Advanced Aluminum Matrix cone woofer for powerful dynamics and incredibly accurate sound reproduction. The HDI-1600 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut. A black cloth, magnetically attached grille completes the luxurious appearance.
HDI-1600 Highlights
-
Patented HDI™ (High-Definition Imaging) waveguide technology
-
Patented 2410H-2 high-frequency compression driver
-
6.5-inch (165mm) cast frame, Advanced Aluminum Matrix cone woofer with 1.5-inch voice coil
-

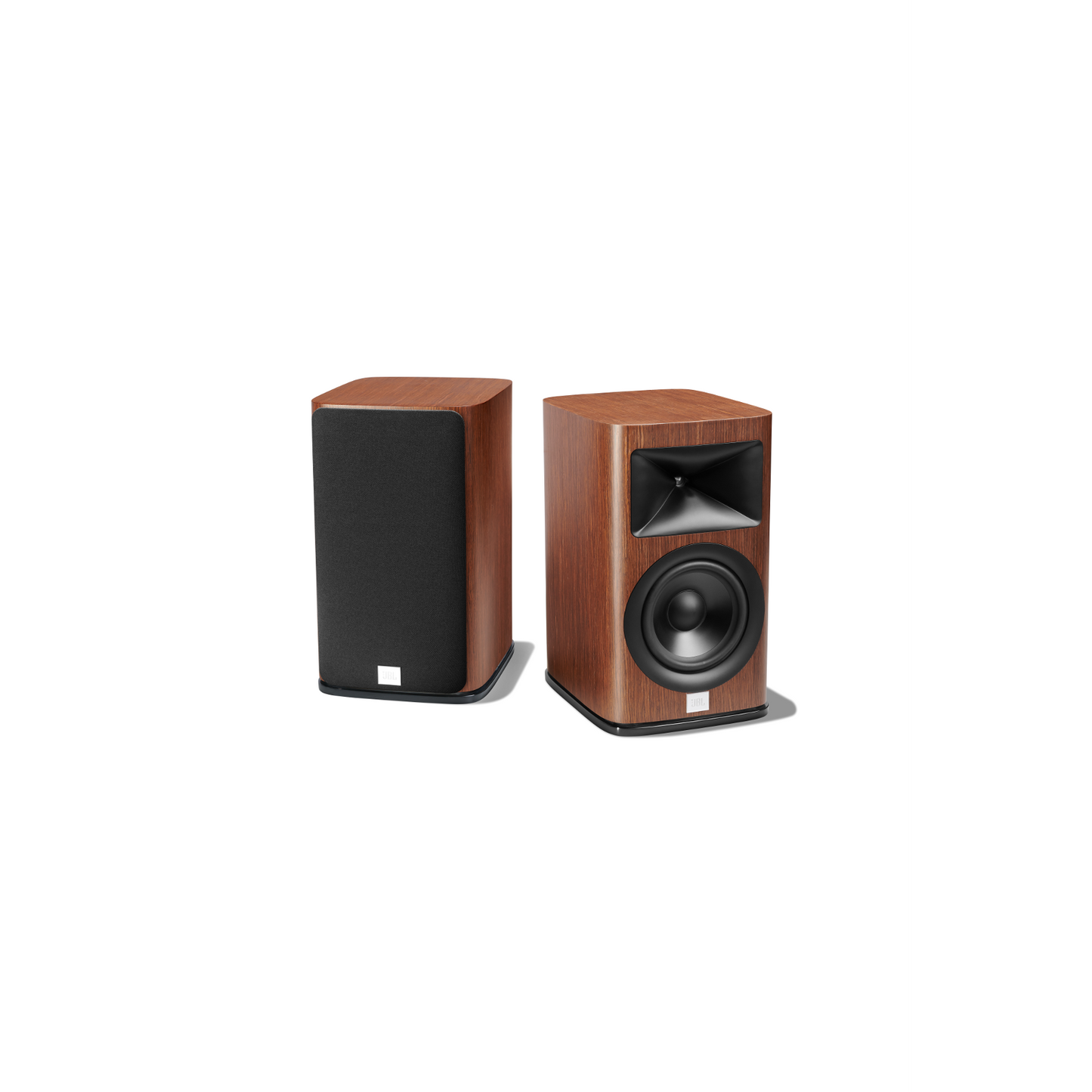

Contemporary design with premium finishes including high-gloss Black, satin Gray Oak wood veneer, and satin Walnut wood veneer
General Specifications
| Enclosure Type | Bass-reflex design with rear-firing port |
|---|---|
| High Frequency Transducer | 1-inch (25mm) Teonex compression driver |
| Low Frequency Transducer | 6.5-inch (165mm) black Advanced Aluminum Matrix cone, cast frame woofer |
| Crossover Frequency | 1900Hz |
| Sensitivity (2.83V @ 1M) | 85dB |
| Nominal Impedance | 4 Ohm |
| Recommended Amplifier Power | 15W – 200W |
| Frequency Response | 40Hz – 30kHz (-6dB) |
| Dimensions (H x W x D) | 14.57 x 9.06 x 11.375” (370.0 x 230 x 288.9mm) |
| Net Weight | 21.96 lbs (9.96kg) |
| Matching Stand | HDI-FS (Not included) |
