Quadruple 5.25-inch (130mm) 2 ½-way Center Channel Loudspeaker

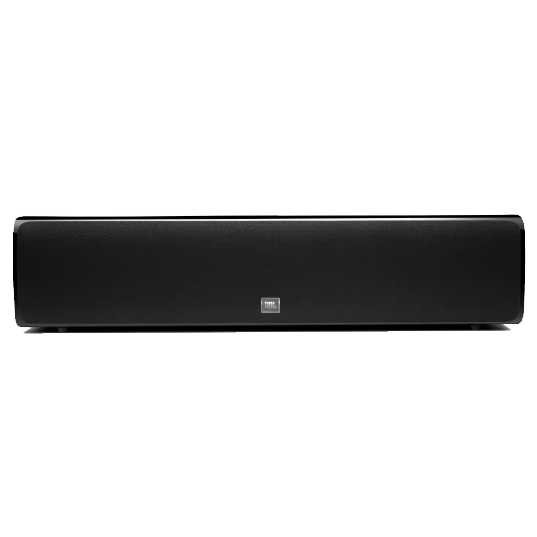

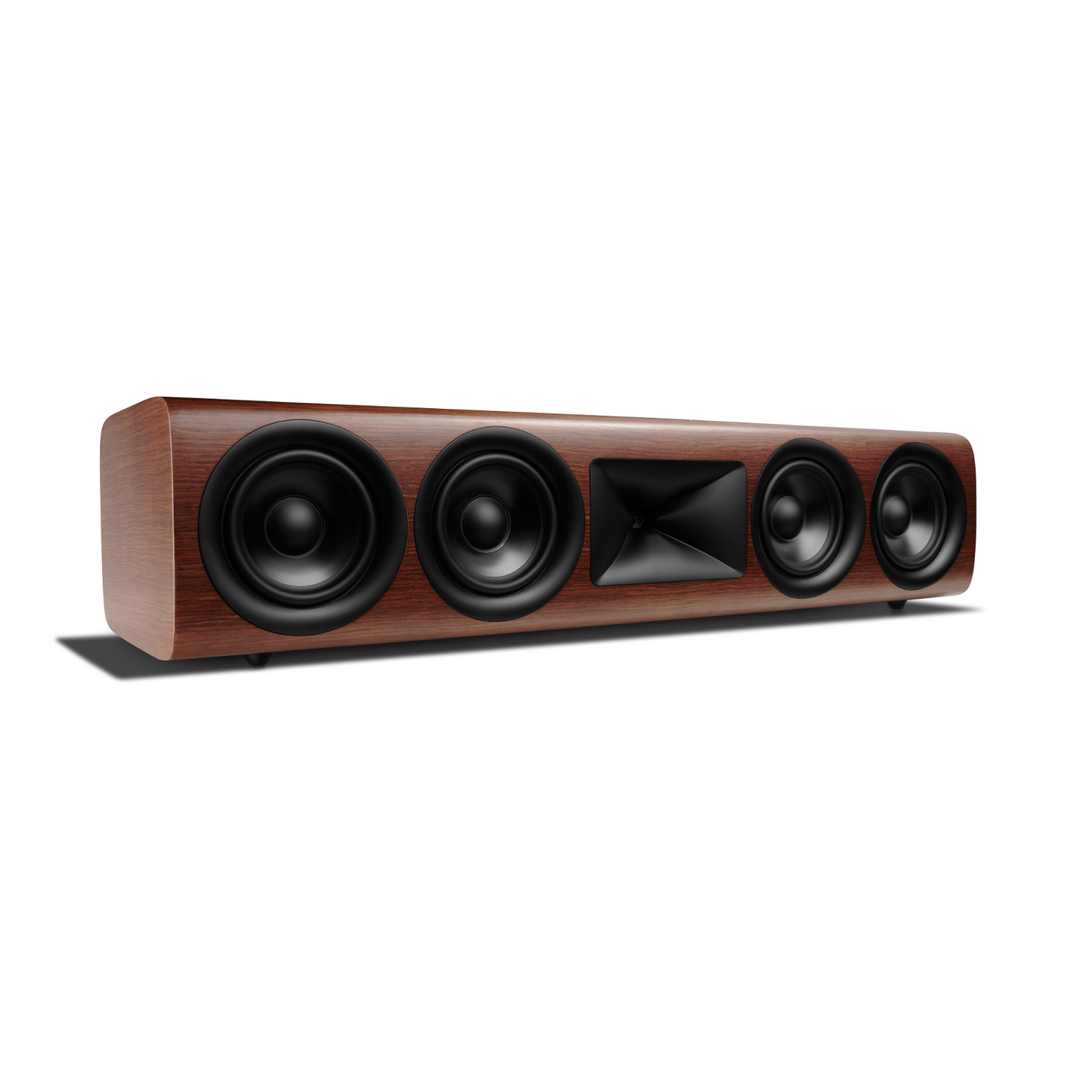

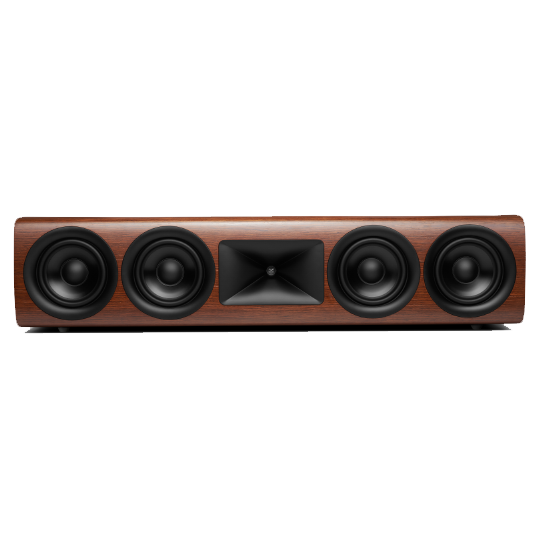

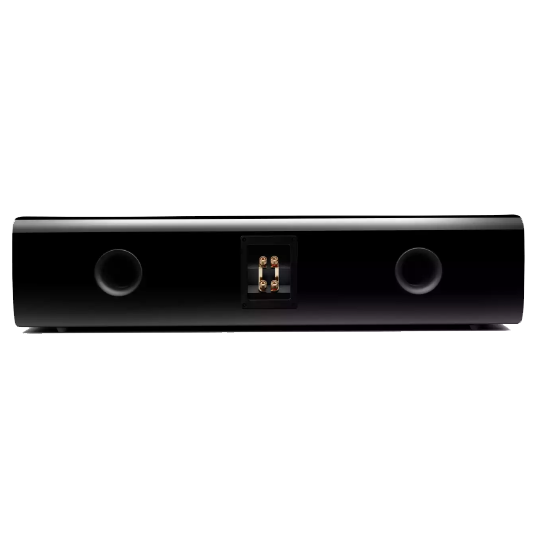

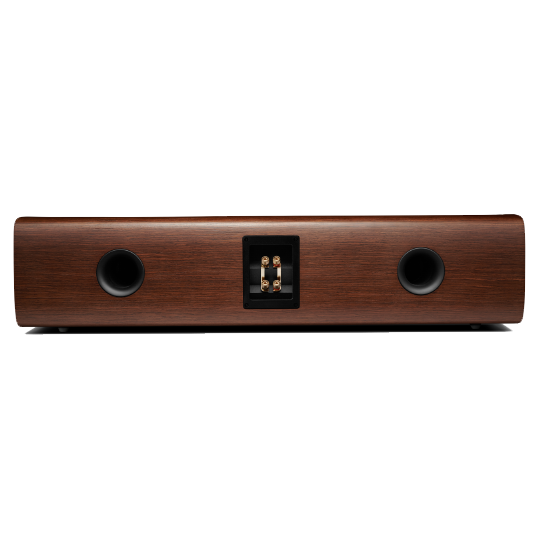

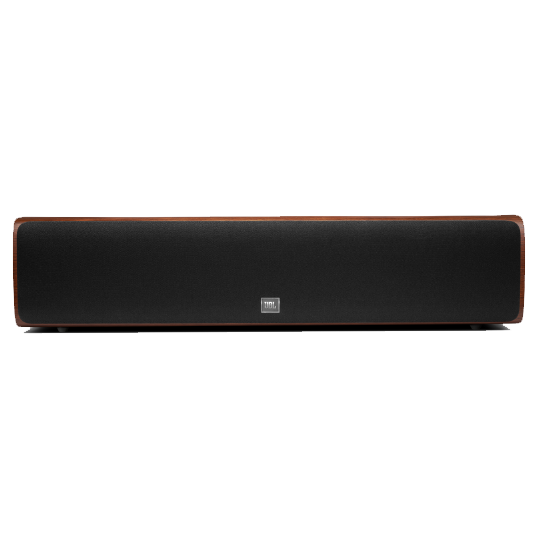

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-4500 is the anchor of a complete HDI Series surround system. This center channel loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) waveguide technology, the patented 2410H-2 1-inch (25mm) compression driver, and quadruple 5.25-inch (130mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction. The HDI-4500 enclosure is heavily braced to provide a solid acoustic foundation, and incorporates a bass reflex design with dual rear-firing, computer-optimized flared ports. The sophisticated curved cabinet features a modern design finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut. A black cloth, magnetically attached grille completes the elegant appearance.
HDI-4500 Highlights
-
Patented HDI™ (High-Definition Imaging) waveguide technology
-
Patented 2410H-2 high-frequency compression driver
-
Quad 5.25-inch (130mm) cast frame, Advanced Aluminum Matrix cone woofers with 1.5-inch voice coils
-
Contemporary design with premium finishes including high-gloss Black, and satin Walnut wood veneer
General Specifications
Enclosure Type |
Bass-reflex design with rear-firing port |
High Frequency Transducer |
1-inch (25mm) Teonex compression driver |
Low / Mid Frequency Transducers |
Four 5.25-inch (130mm) black Advanced Aluminum Matrix cone, cast frame woofers |
Crossover Frequency |
600Hz, 2200Hz |
Sensitivity (2.83V @ 1M) |
90dB |
Nominal Impedance |
4 Ohm |
Recommended Amplifier Power |
20W – 250W |
Frequency Response |
50Hz – 30kHz (-6dB) |
Dimensions (H x W x D) |
7.48 x 33.13 x 12.3” (190 x 841.4 x 312.5mm) |
Net Weight |
44.33 lbs (20.11kg) |
