JVC DLA-N5 D-ILA projector is wrapped in a whole new design, which is packed with the latest projection features. For instance with the new 0.69-inch native 4K D-ILA device, the projector can produce high-definition native 4K resolution (4096 x 2160) images from its all-glass 65 mm diameter lens system. HDR10 content can be projected at optimum quality with Auto Tone Mapping function, which automatically adjusts settings based on the mastering information. Combining brightness of 1,800 lm with dynamic contrast ratio of 400,000:1, the projector reproduces life like images for latest contents like HDR10 and Hybrid Log Gamma. Original motion control technology Clear Motion Drive is renewed, and together with Motion Enhance which optimizes the driving of D-ILA device according to the motion of the image, motion blur is reduced significantly compared to conventional projectors.
Features
- Complies with the latest HDMI/HDCP 2.2 standard to enable full spec 4K signal input with 18Gbps transmission band-width (4K60P 4:4:4, 4K60P 4:2:2/36-bit, 4K24P 4:4:4/36-bit)
- Light source: NSH 265 W lamp
- Resolution: 4096 x 2160
- Input connectors: HDMI x 2 (3D, Deep Color/HDCP 2.2)

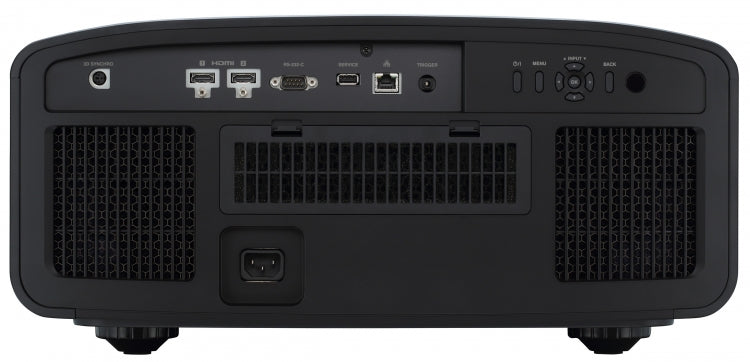

- Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
- 3D formats: Frame Packing, Side-by-Side (Half), and Top and Bottom
- New 0.69 inch 4K D-ILA (4096 x 2160) device x 3
- High-definition display at 4K resolution (4096 x 2160)
- 17-element, 15-group all-glass 65mm diameter high-quality lens
- Multiple Pixel Control image processor accurately reproduces images closer to the original
- Exceptionally bright 1,800 lm means bright, high-resolution images
- Deep Blacks are realized by a High Native Contrast Ratio of 40,000:1 (Dynamic Contrast Ratio 400,000:1)
- Compatible with HDR technology that dramatically improves image quality that rivals real life.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
- For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received
- Display the MaxCLL and MaxFALL mastering data available for HDR content on some UHD Blu-ray discs
- Compatible with Hybrid Log-Gamma that is expected to be used widely in future broadcasting
- Installation Mode centrally manage nine settings related to installation to enjoy video best suited for each environment
- Nine settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect; stored installation modes for various environments can be called up.
- Renewed Clear Motion Drive supporting 4K60P (4:4:4) signal improves moving images more than ever
- Motion Enhance technology reduces residual images and blurring that are often found in fast-moving images by optimally controlling the drive of D-ILA devices
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
- Color Management System with 6-axis Matrix
- Auto-Calibration Function using an optical sensor* is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space and color tracking
- ISF C3 (Certified Calibration Controls) mode** to reproduce excellent picture quality optimized for specific environments.
- Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
*Exclusive JVC software installed in PC and optical sensor are required. Please visit the JVC website for details. **Professional calibration to desired screen is performed by trained dealers
