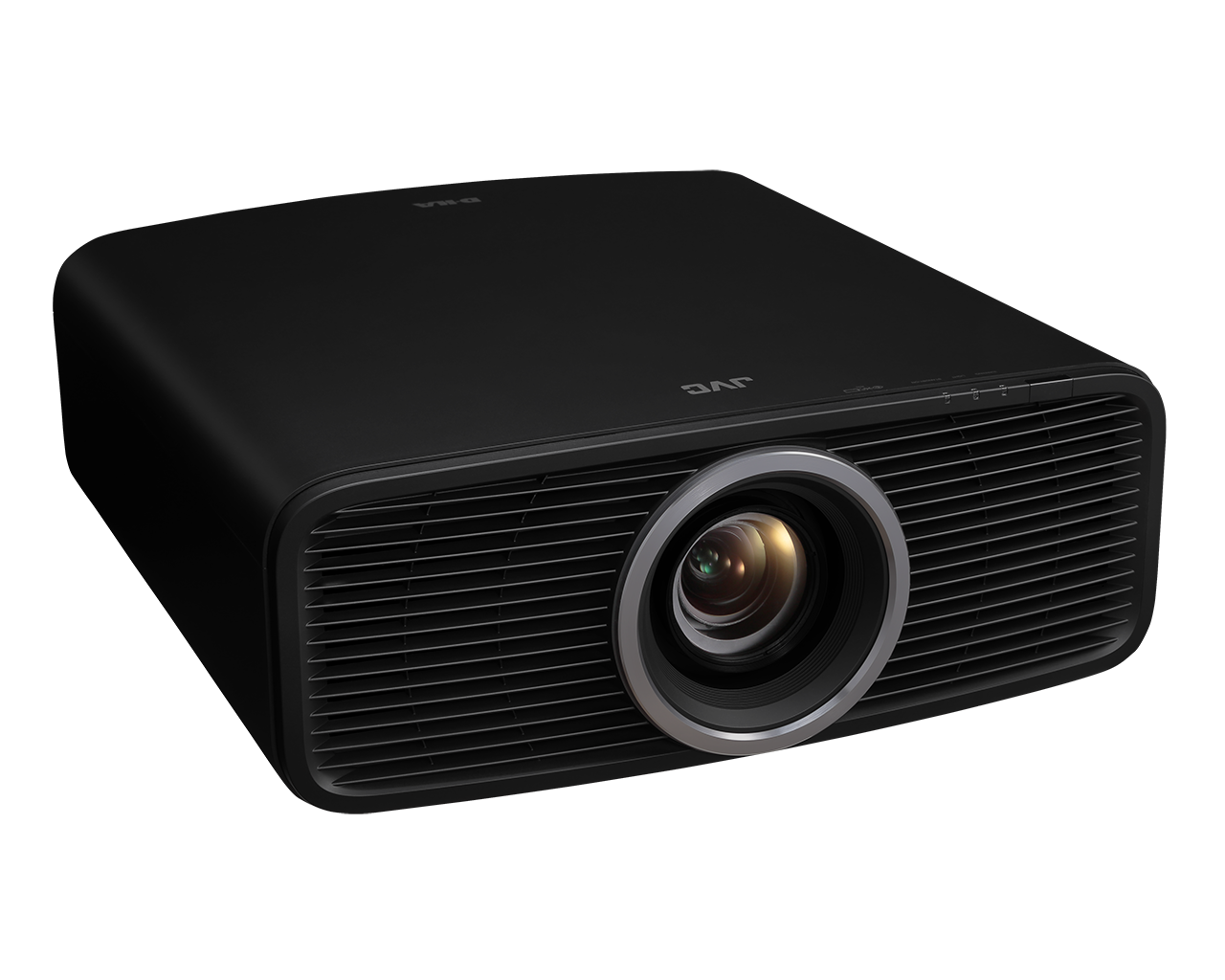

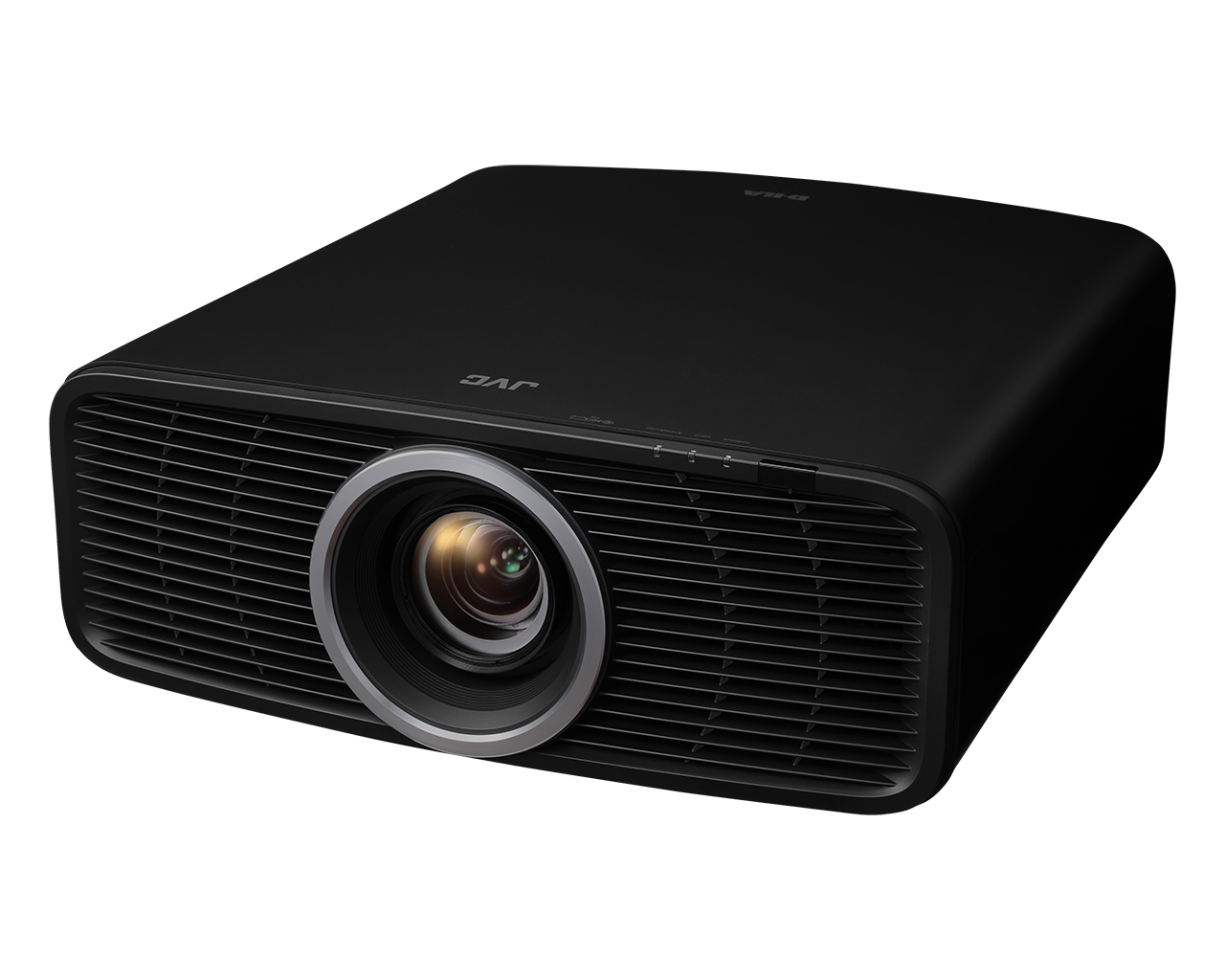

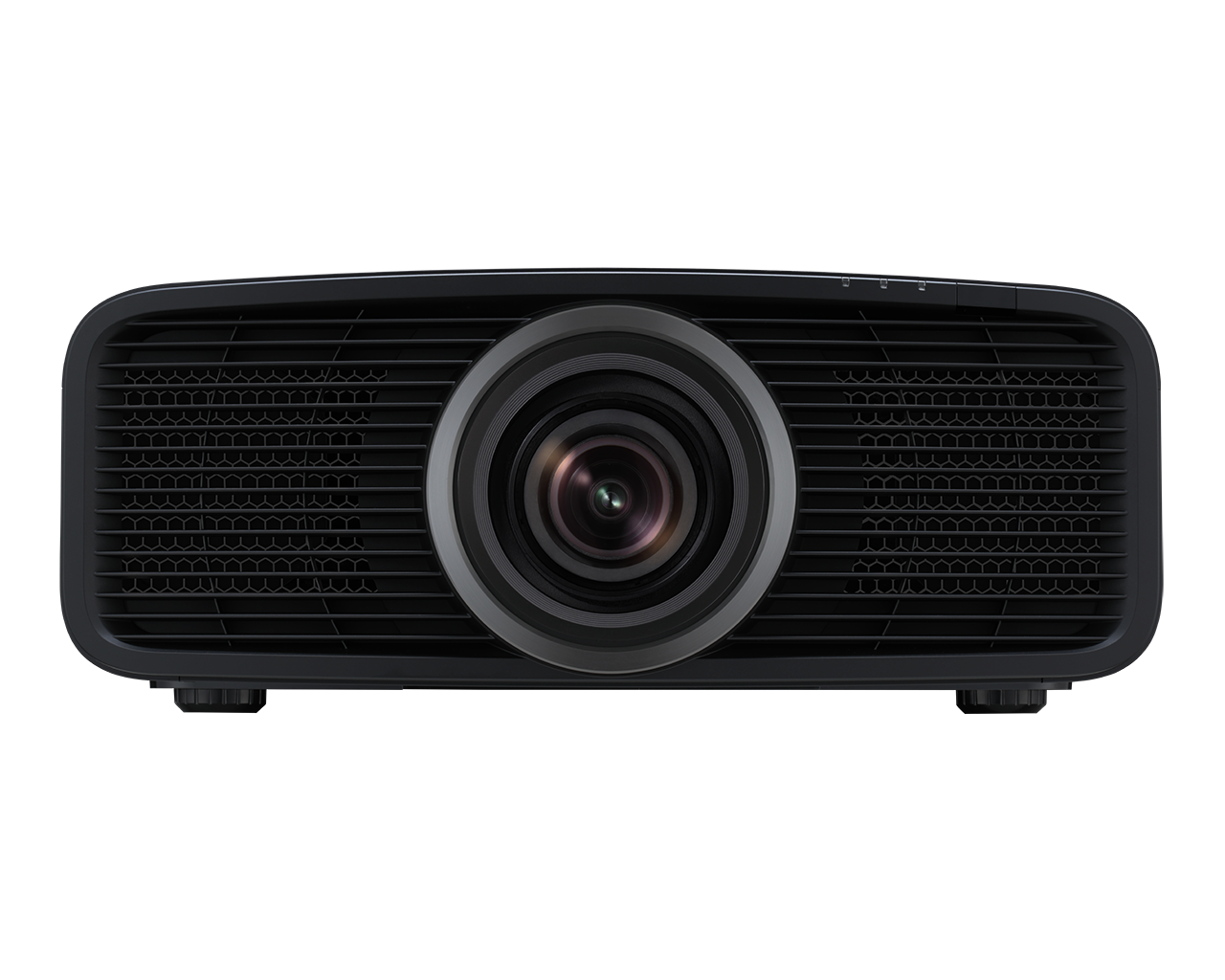

The DLA-NZ7 D-ILA is the world first (as of September 2021, according to a research by JVCKENWOOD) home theater model with 8K/60p/4K120p input. It is equipped with 8K/e-shift proprietary technology with 2-direction shift to reproduce 8K-quality image from 4K signals. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. The projector is driven by three 0.69-inch native 4K D-ILA devices and 17-element, 15-group all glass lens with 65 mm diameter to project high-resolution images to every corner of the screen. BLU-Escent laser diode light source also contributes to project the high-resolution 8K image, realizing brightness of 2,200 lumens and longevity of up to 20,000 hours. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs 2021 projector models.
World’s first home projector capable of
inputting 8K60p/4K120p signals
These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.
Essential all-glass lens to depict all the data in the 8K image
The high-end DLA-NZ9 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel*1. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution*2 projection.
*1: 65 mm diameter, 17-element, 15-group all glass lens is featured on the DLA-NZ8, NZ7 and N5 models. *2: Resolution varies depending on the model.
Reliability-proved BLU-Escent Laser Diode for
exceptional brightness and longevity
The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.
*In theory, this amounts to 20 years or more while watching a 2.5-hour movie every day.
HDR10+ Support allows a choice for two dynamic
When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.
JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer's intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.
4K120p input ideal for Low Latency Mode
Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.
- World first projector to support high-resolution 8K signal input: 8K60p/4K120p
- Light source: BLU-Escent laser
- Display resolution: 8192 x 4320 (with 8K/e-shift)
- Input connectors: HDMI x 2 (48 Gbps/HDCP 2.3)
- Output and control connectors: RS-232C (D-sub 9pin) x 1, LAN (RJ-45) x 1, Trigger x 1 (Mini jack), 3D Sync x 1 (Mini-DIN 3pin)
- 3D formats: Frame Packing, Side-by-Side (Half), and Top & Bottom
- JVC proprietary 8K/e-shift technology with 2-direction shift
- 0.69-inch 4K D-ILA (4096 x 2160) device x 3
- 17-element, 15-group all-glass 65 mm diameter high-quality lens
- BLU-Escent laser light source contributes for optical brightness of 2,200 lumens and longevity of 20,000 hours
- Multiple Pixel Control image processor accurately reproduces images closer to the original
- Infinity:1 Dynamic Contrast Ratio; 40,000:1 Native Contrast Ratio
- Compatible with the two dynamic tone mappings of HDR10+ content and Frame Adapt HDR with Theatre Optimizer*; together, the projector expresses HDR/HDR10+ content at optimum brightness and darkness in each scene as the creator intended.
- The projector automatically reproduces HDR10+ content based on the metadata of the producers intentions for each scene.
- Frame Adapt HDR with Theatre Optimizer performs tone mapping according to the input signal of the content, as well as the installation environment and/or usage conditions of the projector.
- Installation Mode with 10 memories is ideal for applications such as ultra-wide screen, where multiple aspect ratios are needed. Focus, Zoom, Shift, Pixel Adjust, Anamorphic Scaling and more can be saved independently for each memory.
- Compensation accuracy of Clear Motion Drive improved in the periphery of objects. Added with Motion Enhance technology, the projector can reproduce much smoother moving 4K images (function disabled when inputting 4K120p signals).
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
- Color Management System with 6-axis Matrix
- Auto-Calibration Function using an optical sensor** is capable of optimizing essential elements in the image, including color balance, gamma characteristics, color space and color tracking
- ISF C3 (Certified Calibration Controls) mode*** to reproduce excellent picture quality optimized for specific environments.
- Wireless transmission options for 3D viewing: RF (radio frequency) system transmission with PK-AG3 3D Glasses for 100H continuous operation and PK-EM2 3D Synchro Emitter
*Theater Optimizer can be activated only when the projectors picture mode is set to Frame Adapt HDR. **Exclusive JVC software and optical sensor are required. Please visit the JVC website for details. ***Professional calibration to desired screen is performed by trained dealers
- 0.69-inch Native 4K D-ILA Device (4096 x 2160) x3
- 8192 x 4320
- 65 mm
- x2 Motorized Zoom & Focus, All-glass Lens
- Lens shift
- Vertical/Horizontal (motorized, in 16:9 aspect ratio)
- 80% / 34%
- Light source
- Laser Diode
- 2,200 lm
- Contrast Ratio
- Input terminal
- 2 (48Gbps, HDCP2.3, no support for CEC)
- 1 (Mini Jack, DC12 V/100 mA)
- Output terminals (back panel)
- 1 (Dsub 9pin)
- Control terminals
- 1 (RJ-45)
- Service terminal
- 1 (USB Type A, for firmware update)
- Noise level
- 24dB (In Low Mode)
- Power requirements
- AC100-240 V, 50/60 Hz
- Dimensions: W x H x D, mm
- 500 x 234 x 505 (incl. feet)
- Dimensions: W x H x D, inches
- 19-11/16 x 9-7/32 x 19-29/32 (incl. feet)
- Weight, kg
- Weight, lbs
