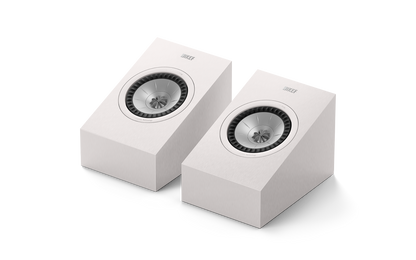

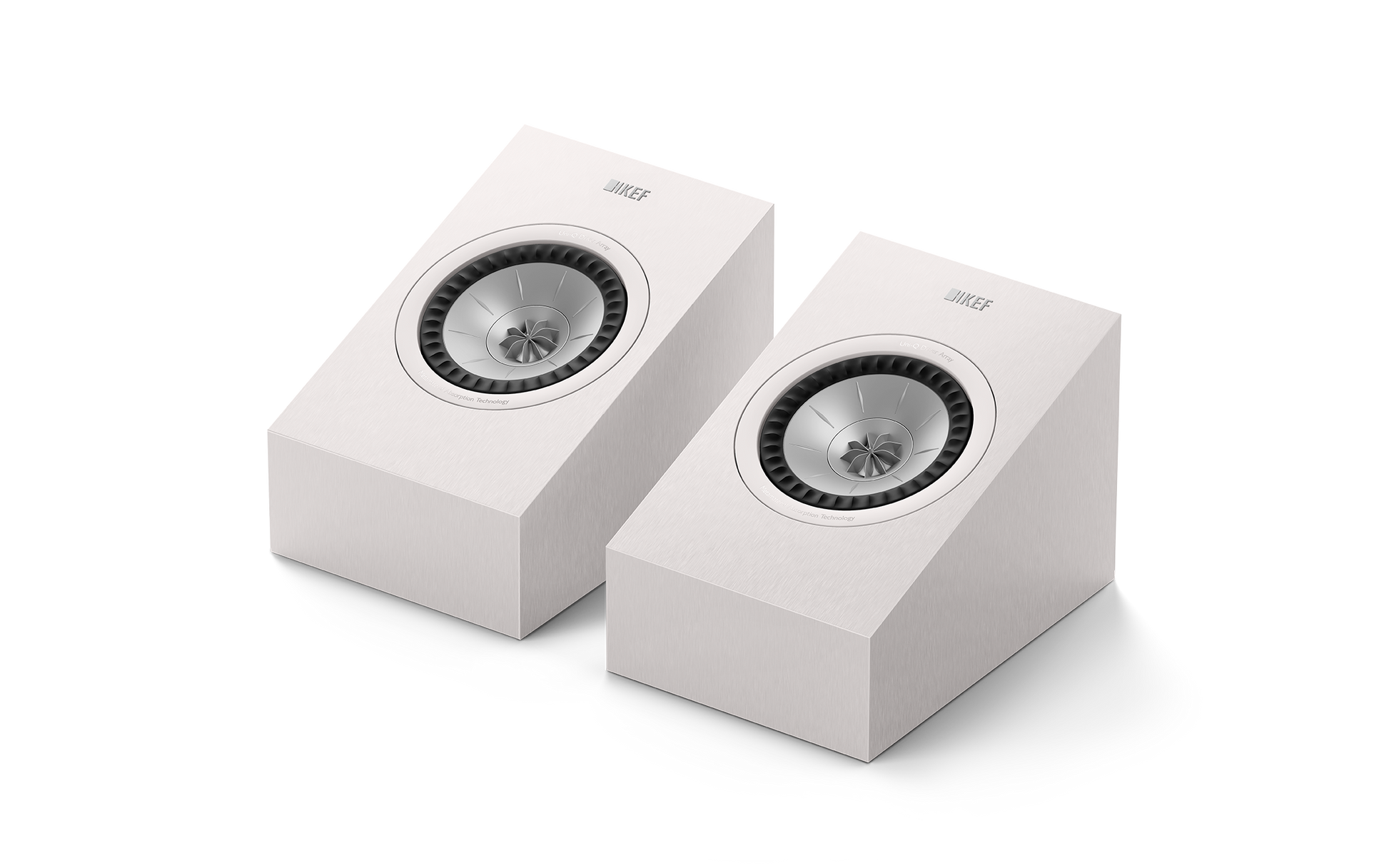

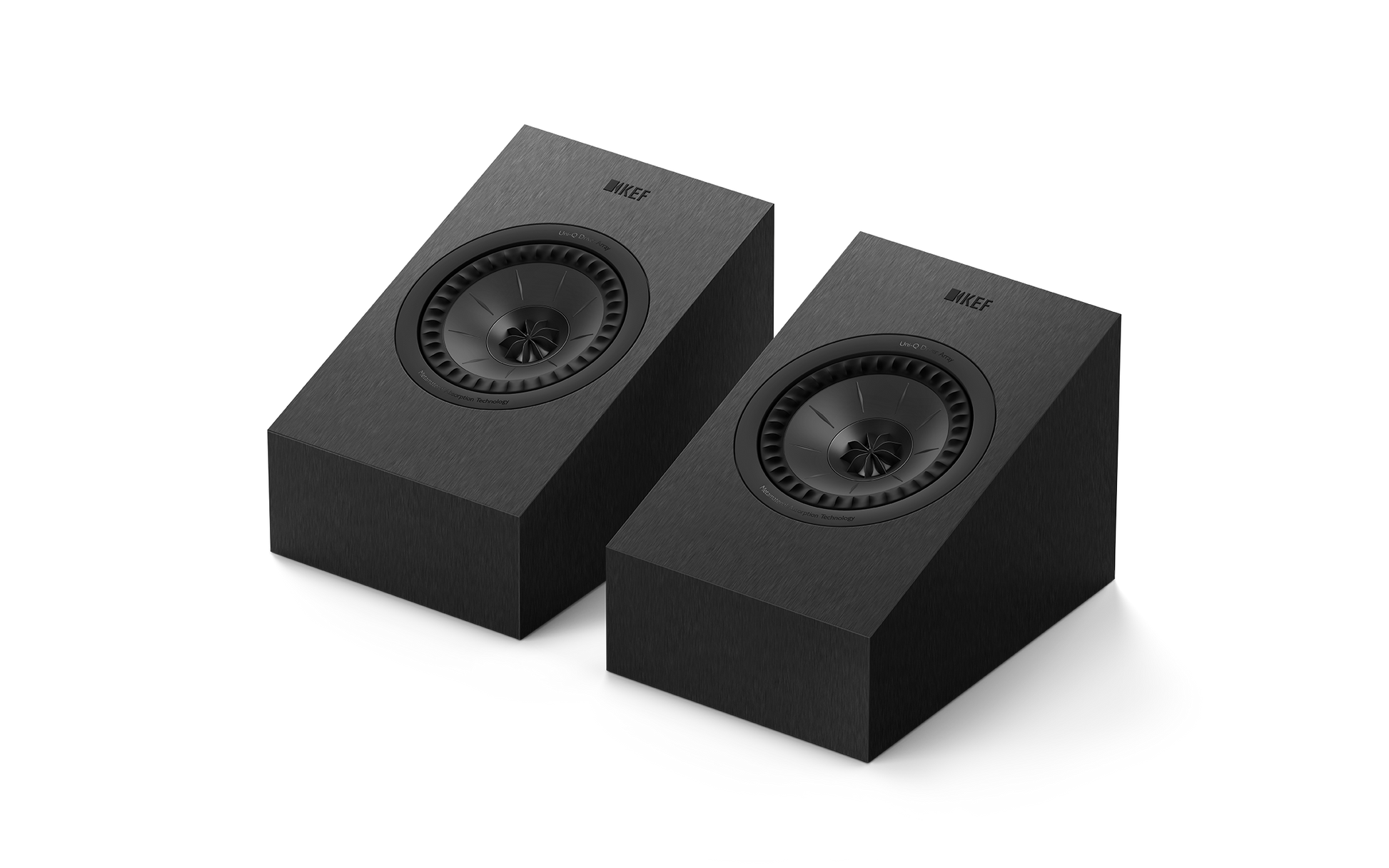

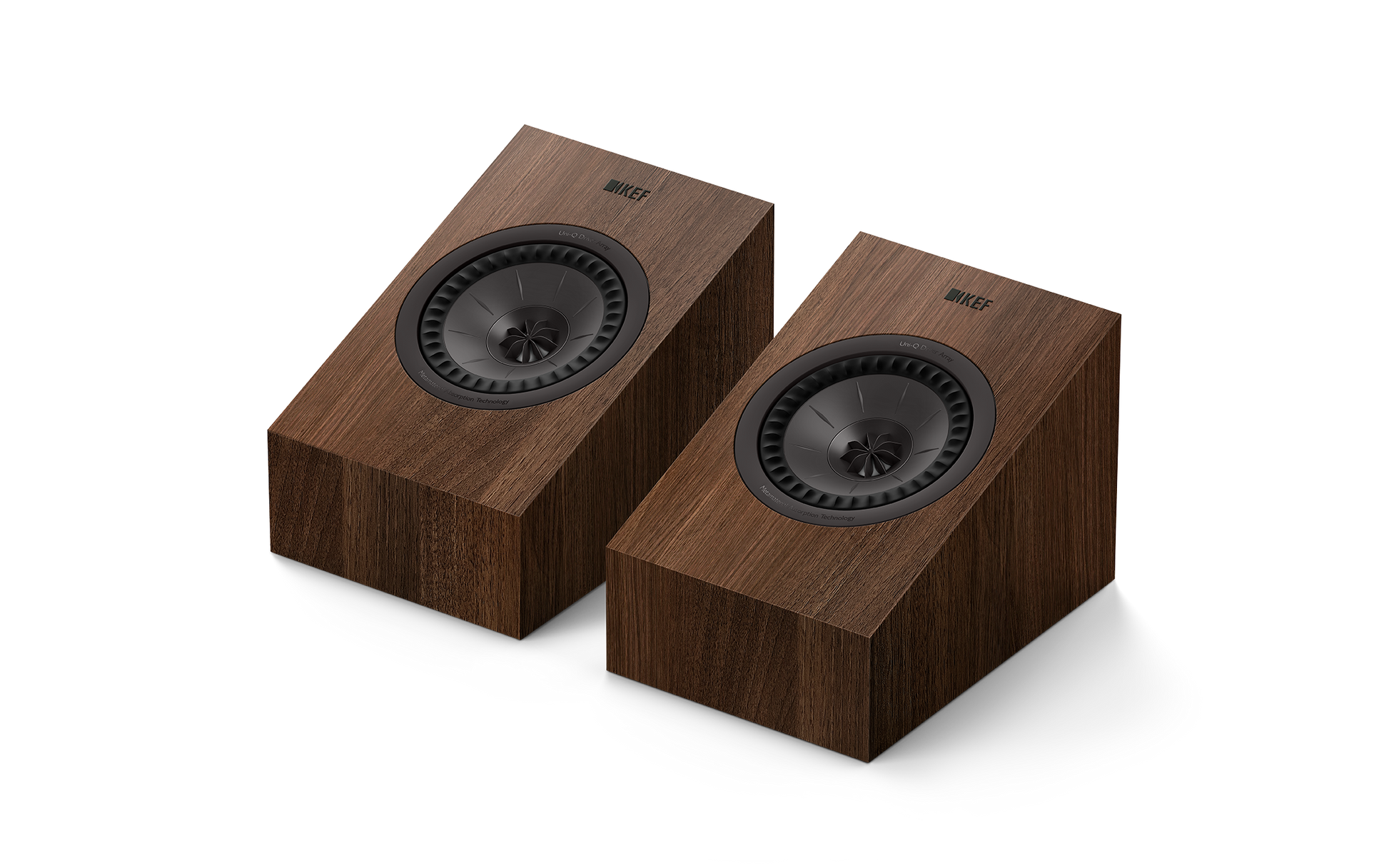

Q8 Meta
Dolby Atmos surround speaker
Using the integrated wall mount, the Q8 Meta can be hung as a high-fidelity surround or rear speaker. Alternatively it can be placed upon another speaker bringing Dolby Atmos sound to the room with no need for custom installation. The 5.25" 12th generation Uni-Q driver array with MAT™ brings immersive sound to any home theatre.
SPECIFICATIONS
Design
Two-way closed-box
Drive units
Uni-Q Driver Array:
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.255 in.) aluminium cone
HF: 25 mm (1 in.) vented aluminium dome
with MAT
LF/MF: 130 mm (5.255 in.) aluminium cone
Frequency range (-6dB)
96 Hz - 20 kHz
Typical in-room bass response (-6dB)
90 Hz
Frequency response (±3dB)
105 Hz - 20 kHz
Crossover frequency
2.7 kHz
Amplifier requirements
10 - 150 W
Sensitivity (2.83V/1m)
86 dB
Harmonic distortion (90dB, 1m)
<2% 145 Hz and above
<1% 170 Hz - 20 kHz
<1% 170 Hz - 20 kHz
Maximum output
109 dB
Impedance
4 Ω (min. 3.2 Ω)
Weight *
4.5 kg (9.9 lbs.)
Dimension (H x W x D) with terminal *
176 x 180 x 259 mm (6.9 x 7.1 x 10.2 in.)
Finishes
Satin Black / Satin White / Walnut
* Measurement per unit
