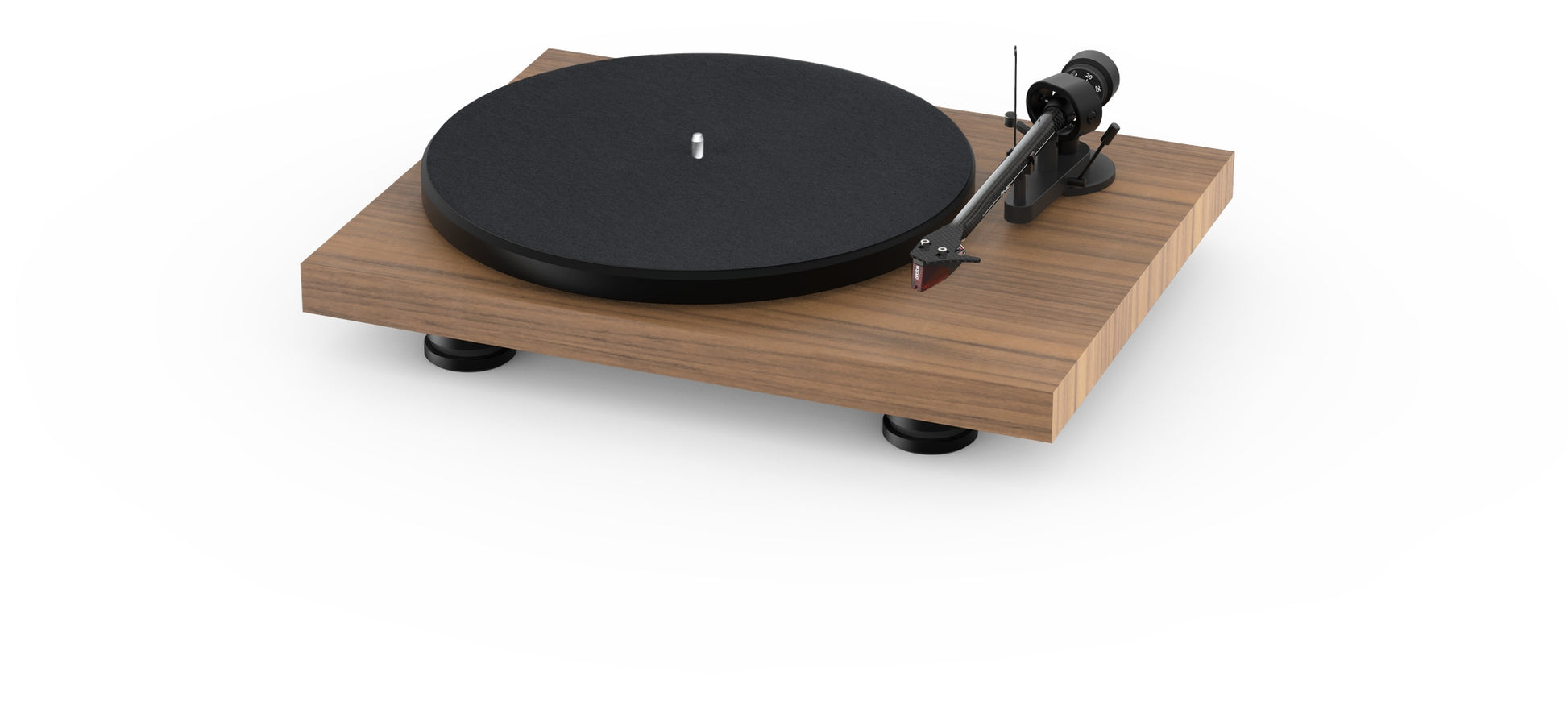

Debut Carbon Evo
Harnessing the technology and experience gained from the past 30 years, at Pro-Ject Audio we have incorporated all of our learnings into the newly refined Debut Carbon Evo.
What you are about to experience is a thoughtfully elevated reimagining of the most popular manual turntable ever made.
Redesigned motor suspension
We used our technology and experience gained from the past and fit damping techniques of highend turntables into the Debut Carbon EVO. Looking at more advanced TPE damping and highmass sandwich constructions we were able to come up with a new motor and suspension solution for the Debut Carbon EVO.
Anytime the perfect stand
Our new Debut Carbon EVO does not just look great - it also always stands perfectly level. It uses 3 height adjustable heavy-duty metal feet to ensure a level positioning on every surface.
Controlled playback speeds
Besides being able to effortlessly change replay speeds with the push of a button, the playback speed is electronically controlled with the utmost precision, which results in the most accurate and stable speeds.

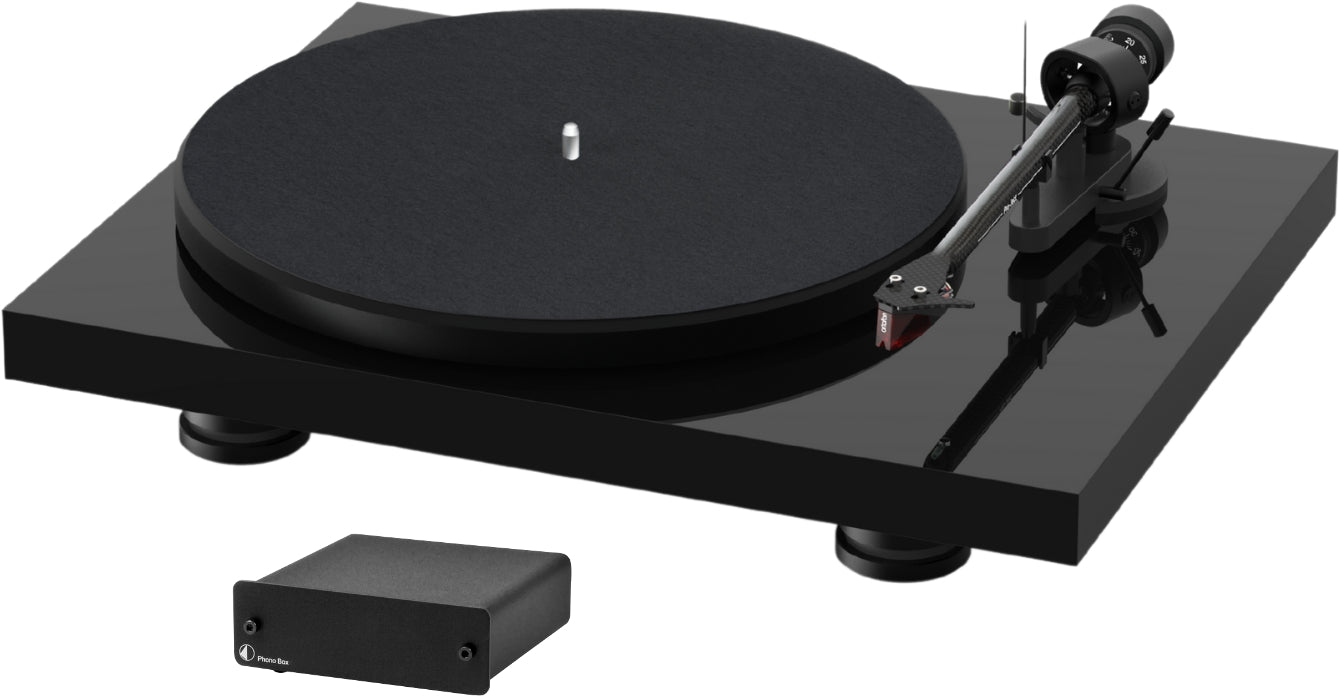

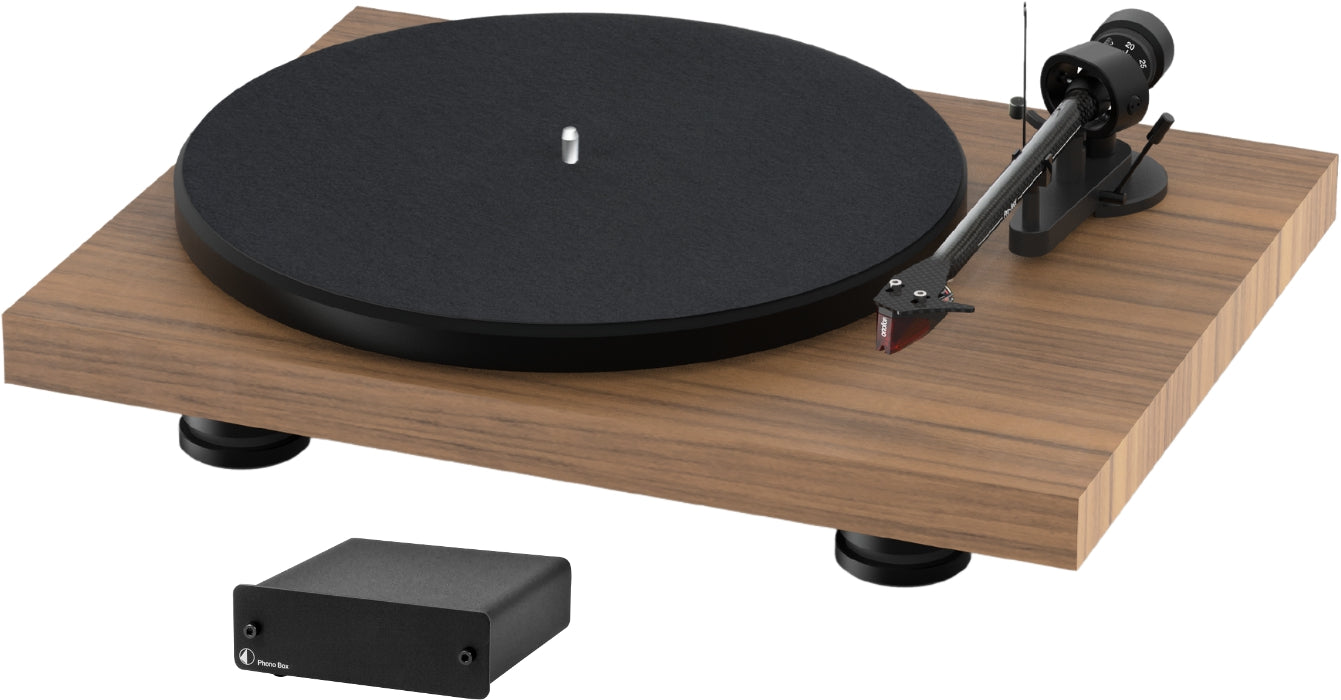

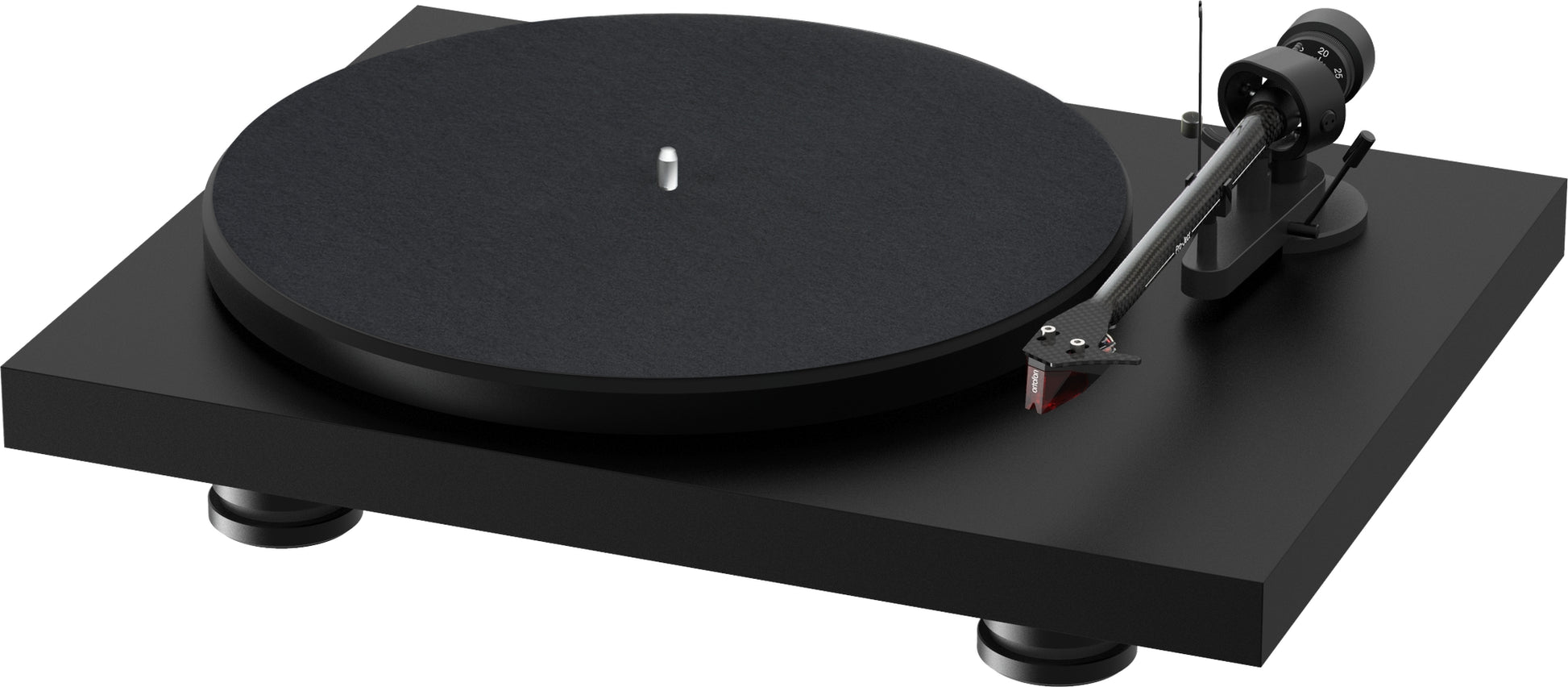

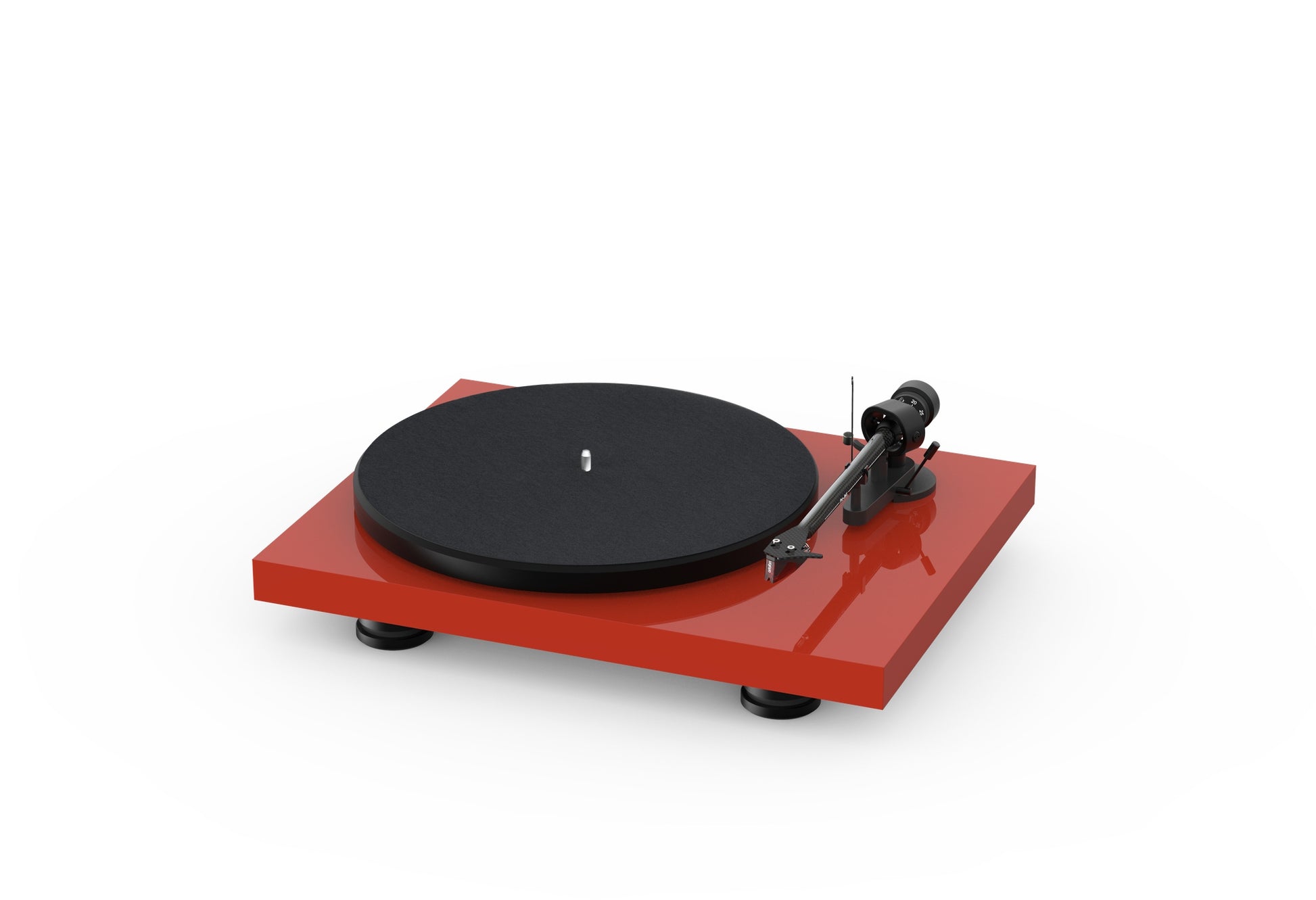

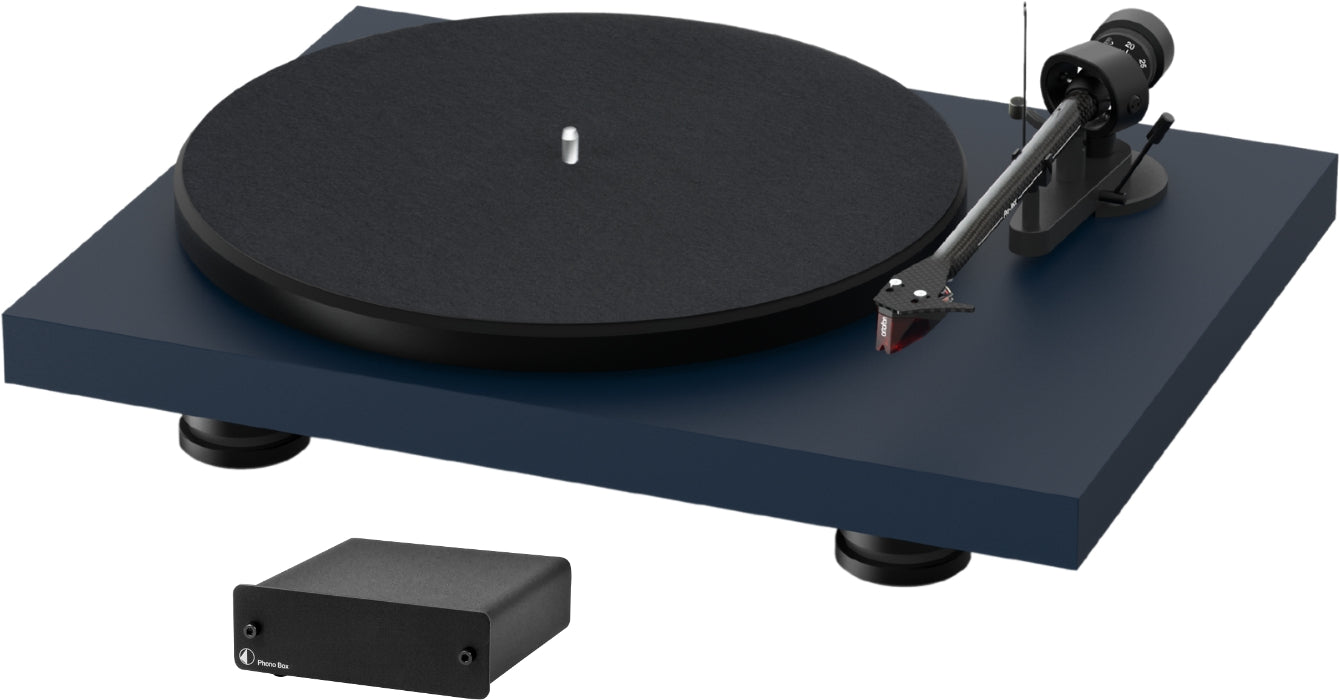

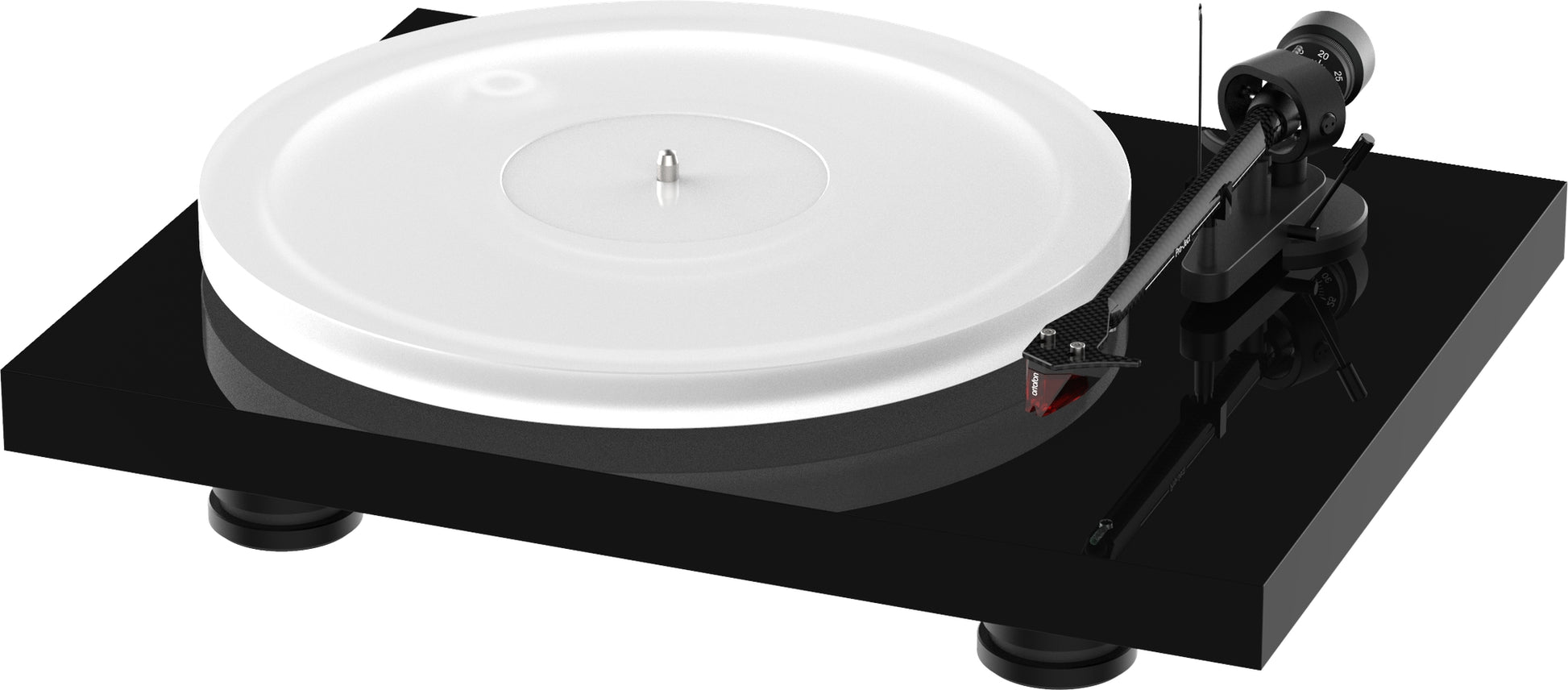

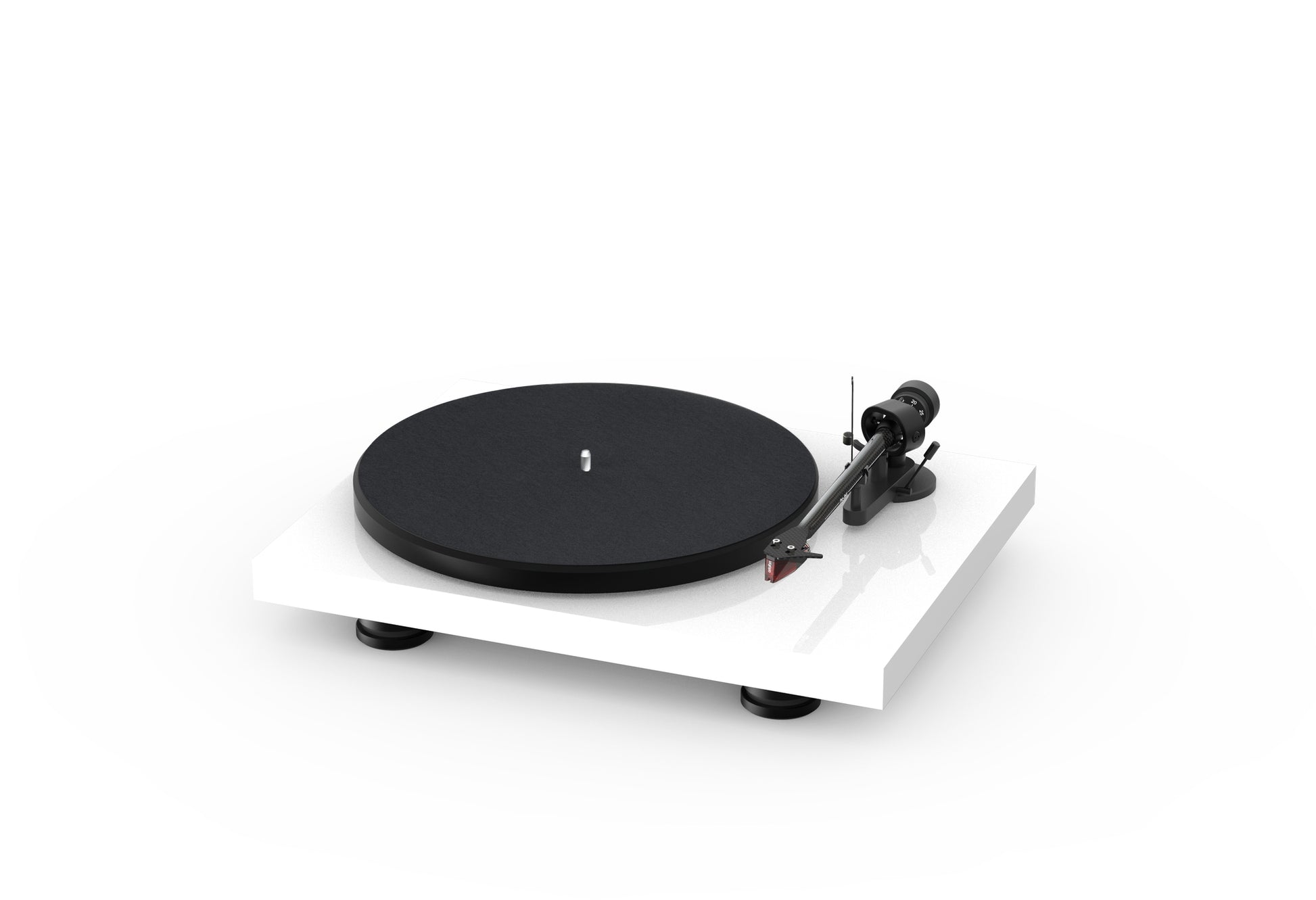

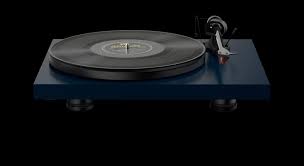

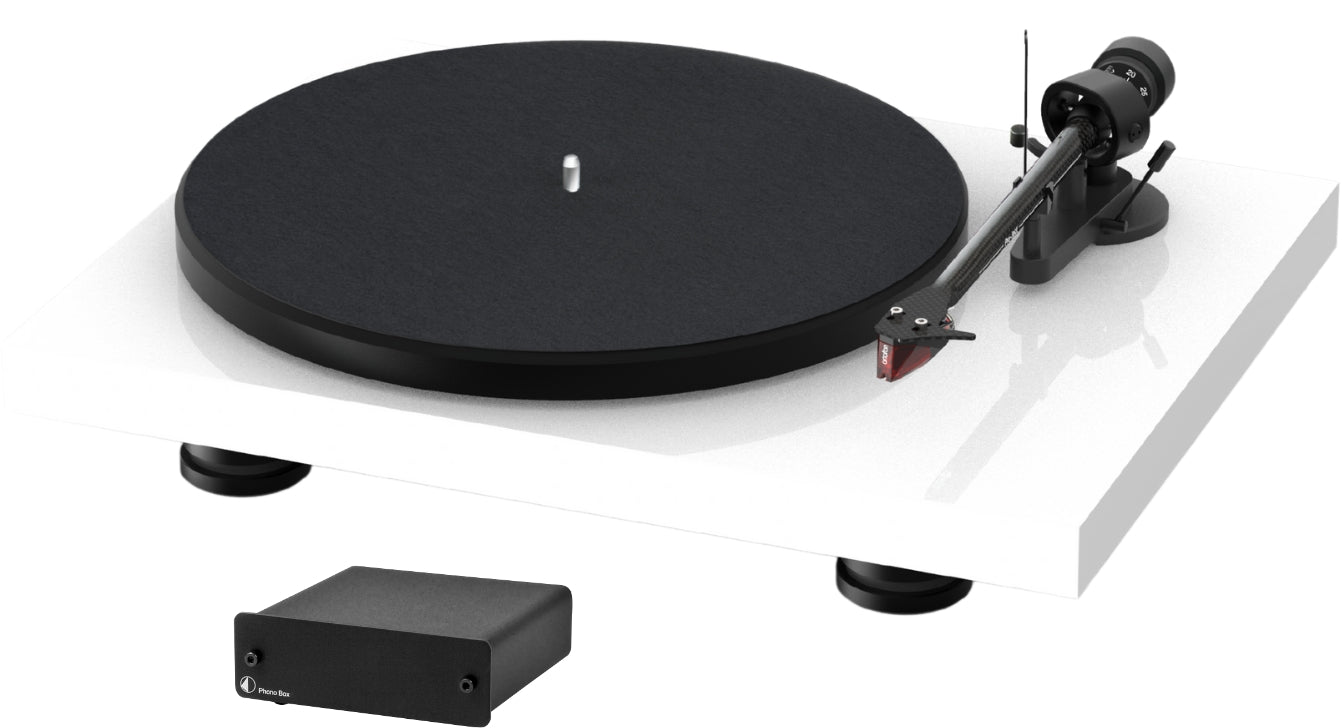

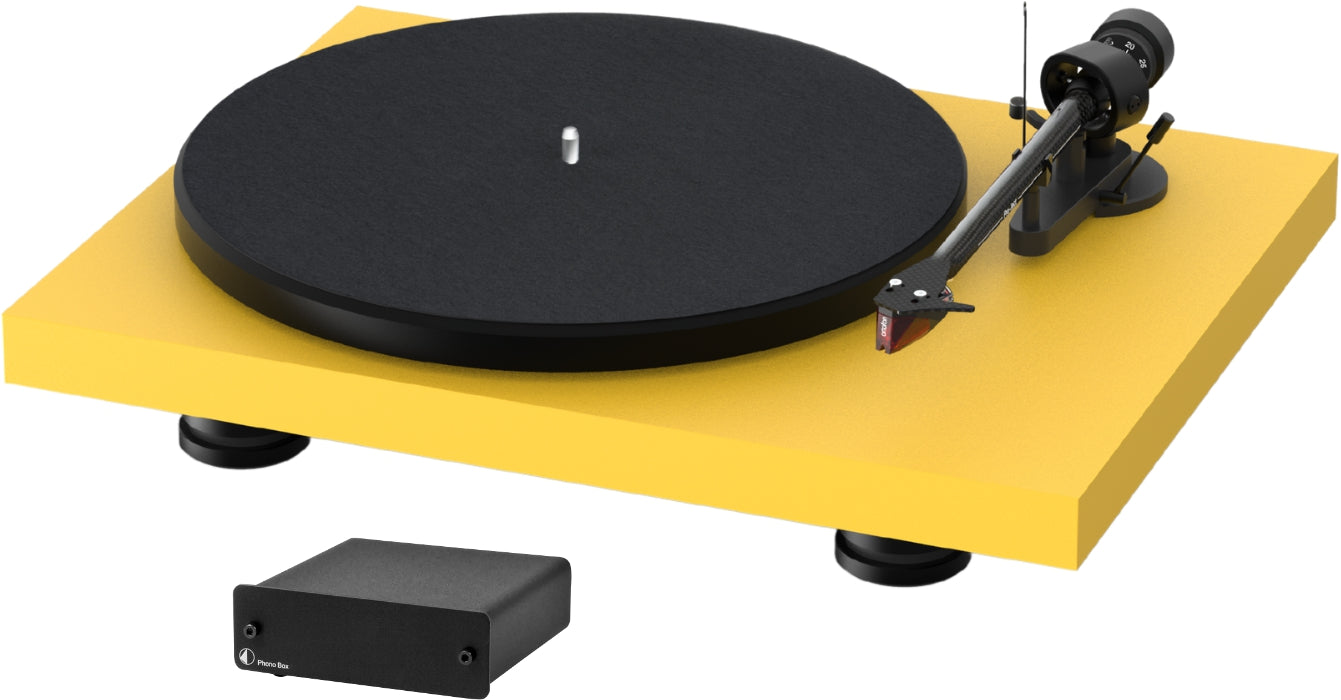

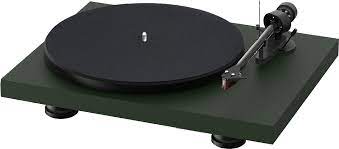

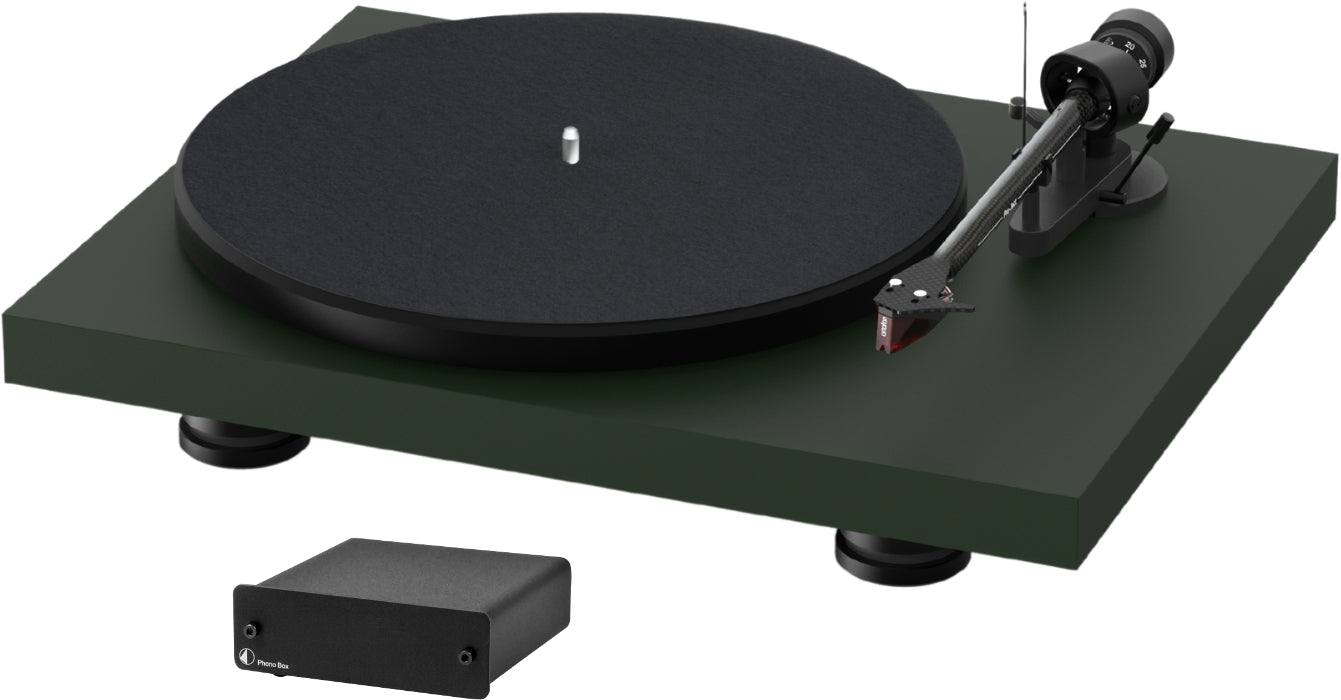

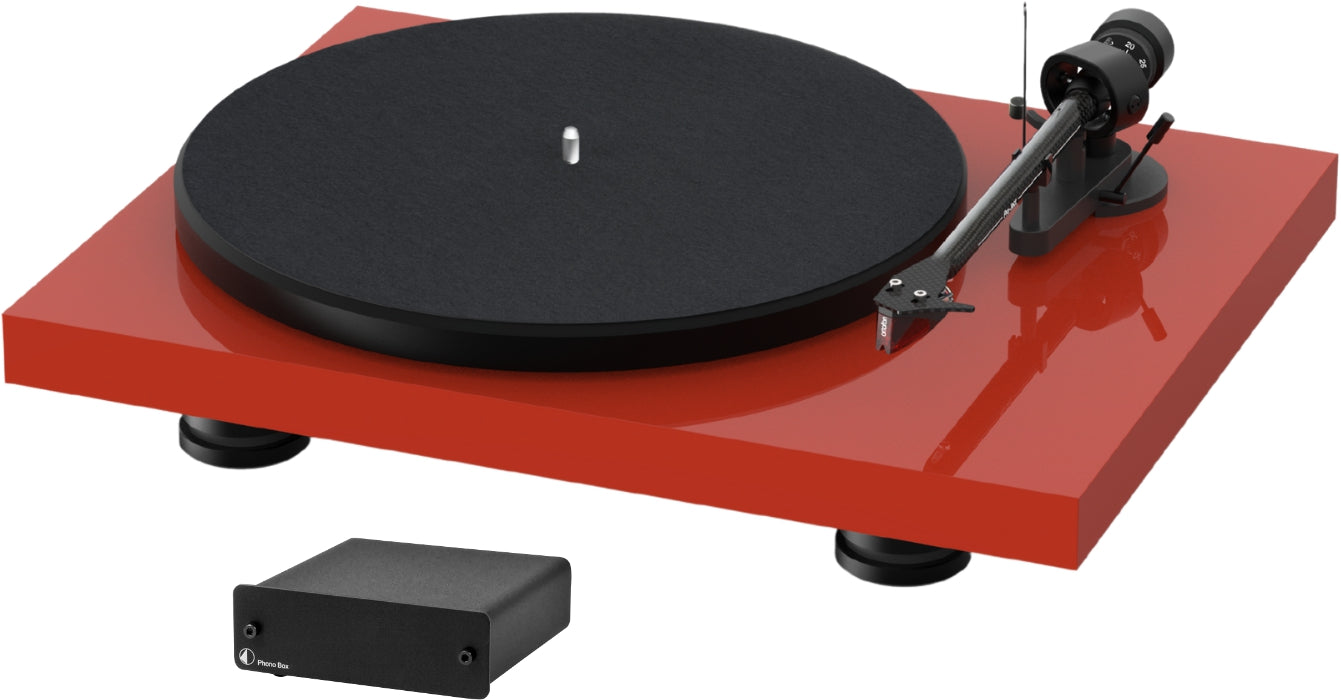

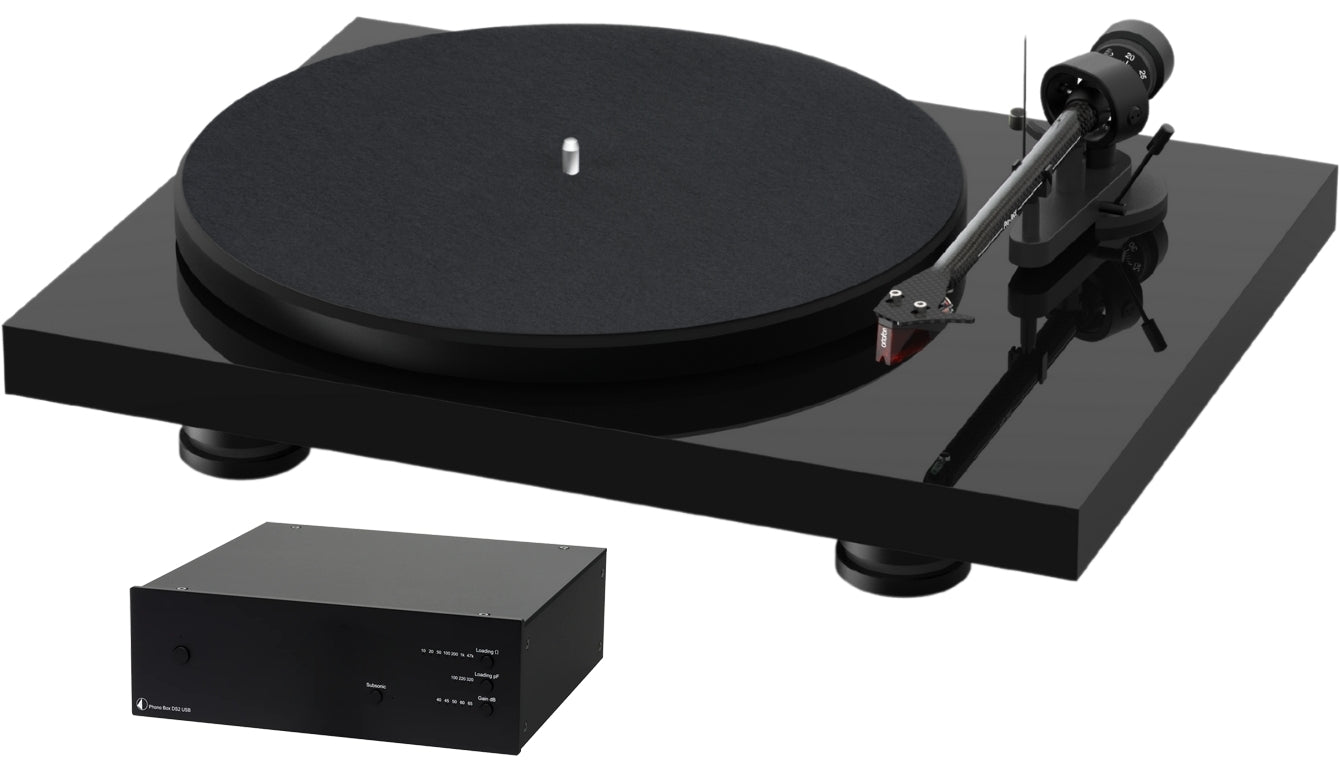

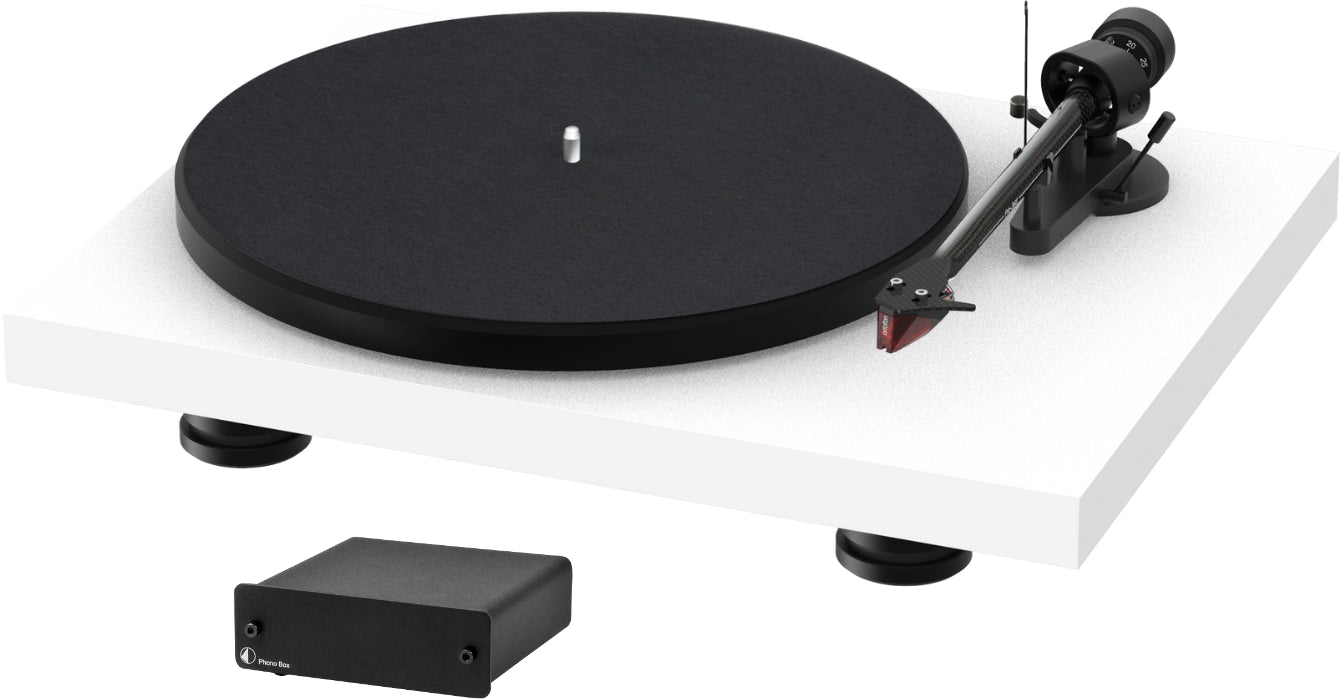

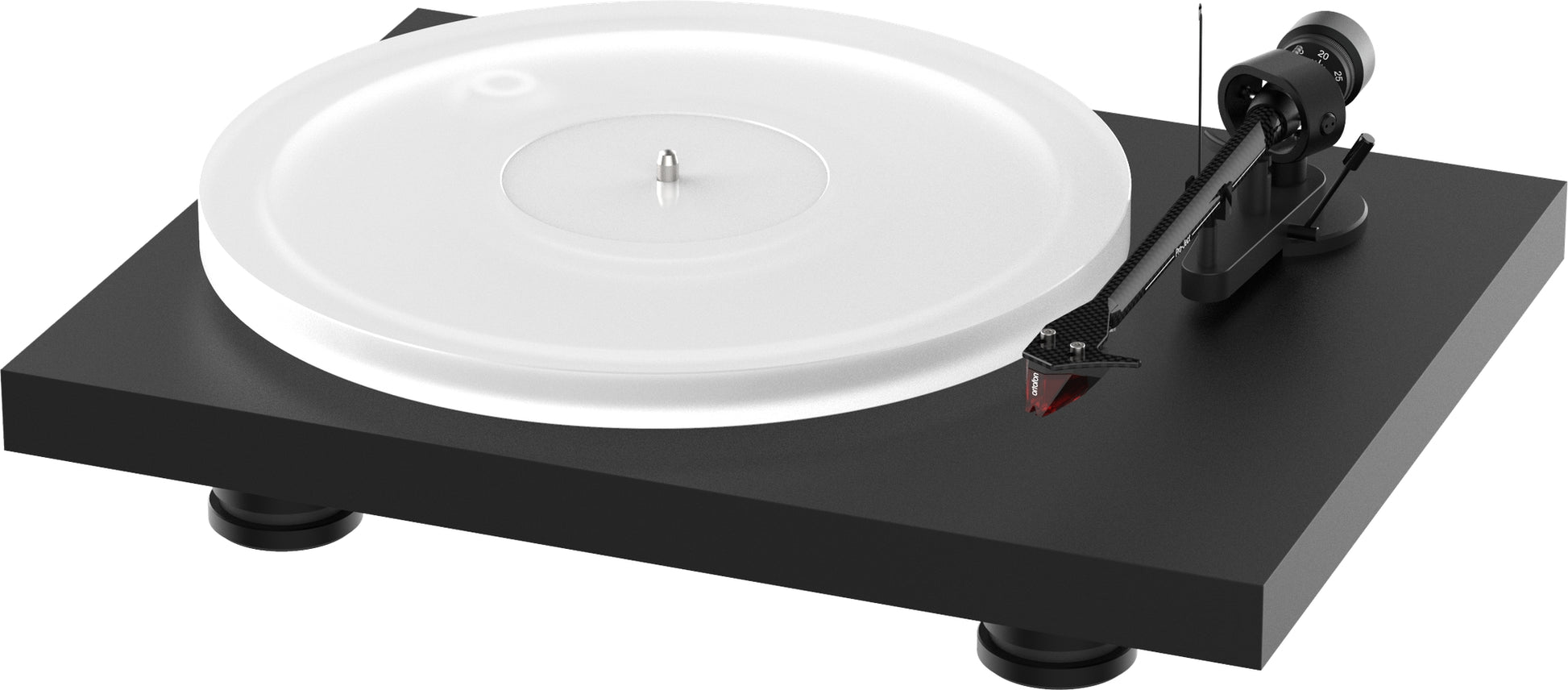

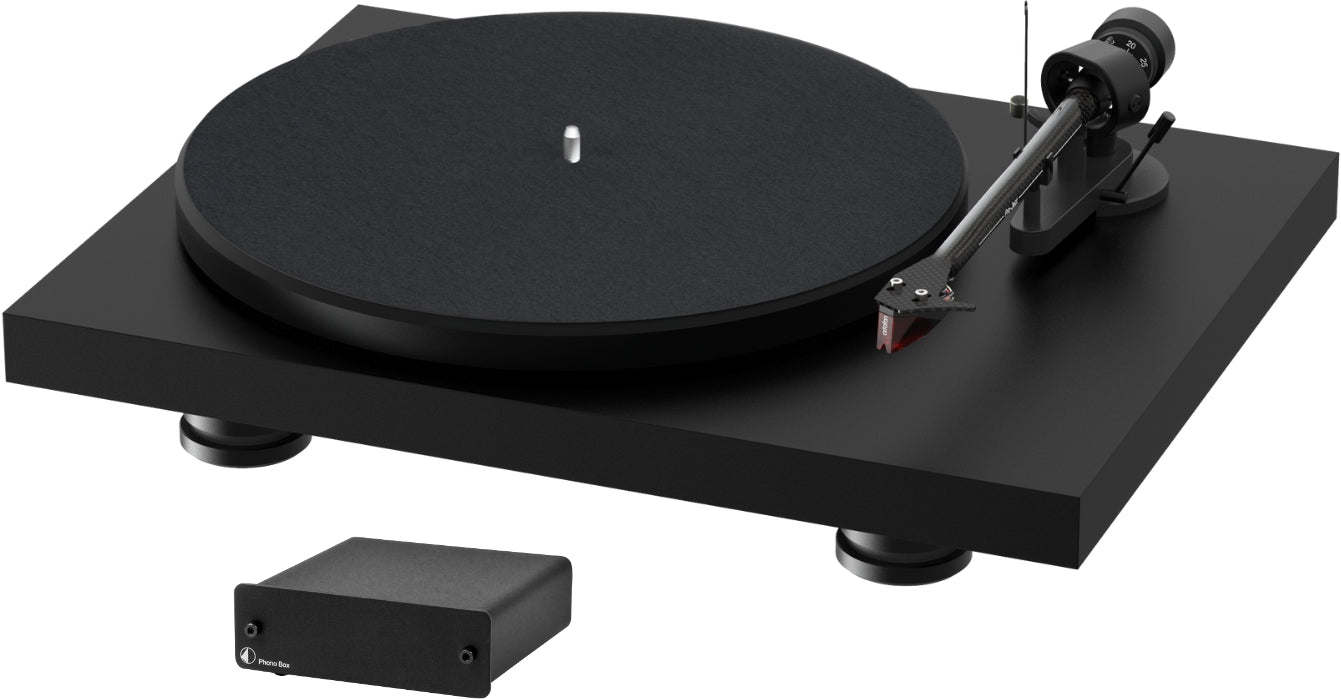

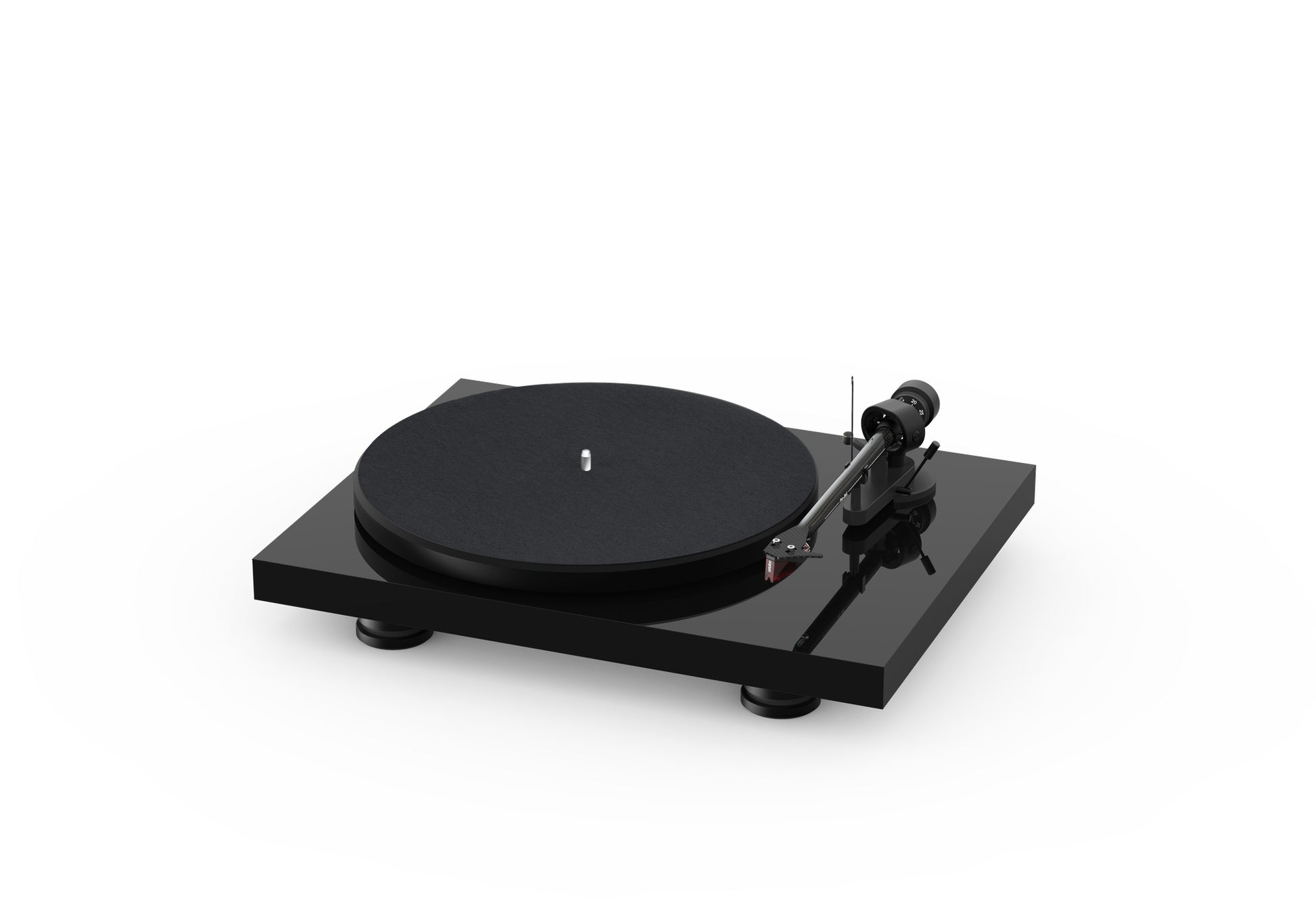

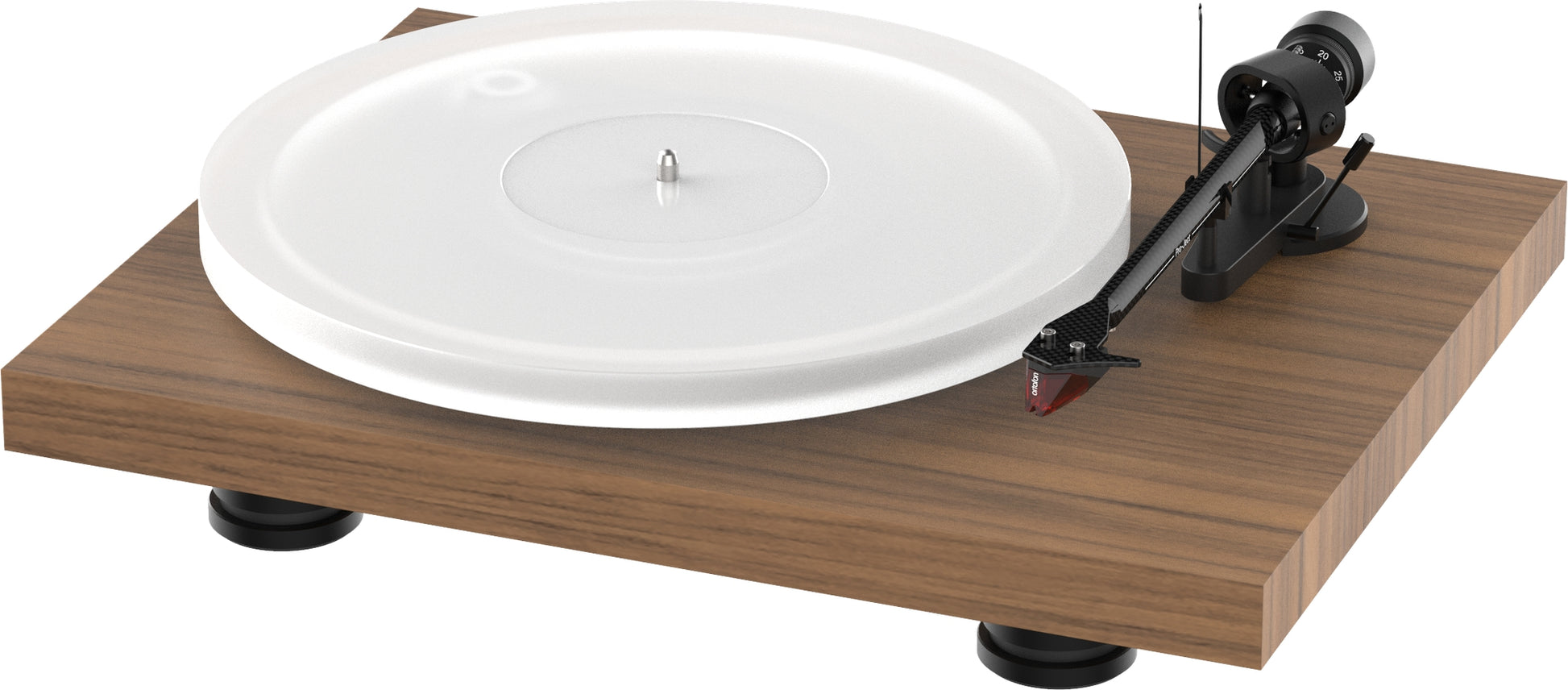

Finishes:
Technical Specifications
Nominal speeds | 33/45 r.p.m.. *** 78 r.p.m. optional |
Speed variance | 33: ±0.50% 45: ±0.60% |
Wow and flutter | 33: ±0.17% 45: ±0.15% |
Signal to noise | 68dB |
Effective tonearm mass | 6g |
Effective tonearm length | 8.6 " ( 218.5 mm) |
Overhang | 18,5 mm |
Power consumption | 4 W/ 0 W in Stand-By |
Outboard power supply | 15V / 0 – 0.8 mA DC (set at 0.5 mA), universal power supply |
Dimensions (W x H x D) | 415 x 118 x 320 mm, dust cover open 415 x 365 x 405mm |
Weight | 5,6 kg |
Dimensions packaging (W x H x D) | 488 x 235 x 393 mm |
Weight incl. packaging | 8.0kg |
----- | |
MM-Cartridge Ortofon 2M Red: | |
Frequency range | 20-22.000Hz |
Channel separation | 22dB/1kHz |
Output voltage | 5.5mV |
Recommended load impedance | 47kohms/amplifier connection – MM-input |
Compliance/stylus type | 20µm/mN – elliptical |
Recommended tracking force | 17.5mN |
Weight | 7.2g |
