Phono preamplifier

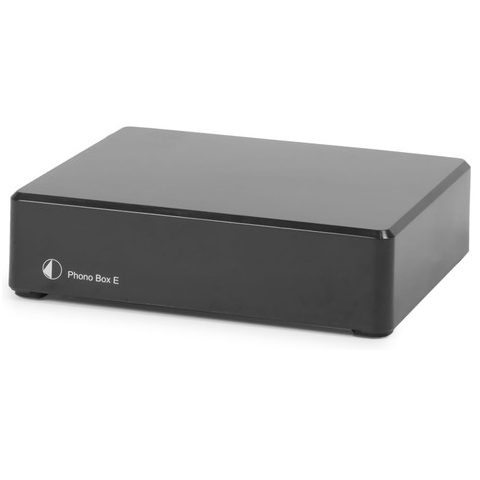

Phono Box E: Pure vinyl listening pleasure at an absolute bargain price!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.
Features
- Amplification and RIAA equalisation for MM cartridges
- Design principle inspired by Dr. Sykora
- SMD circuitry
- Special low noise components
- Internal metal shielding
- Small size allows installation close to record player
- Gold plated RCA connection sockets
- Outboard power supply included
- Black or White casing
Technical Specifications
| Input impedance | 47 kohms |
| Input capacitance | 120 pF |
| Gain | 40 dB |
| Output voltage(typically) | 500mV/ 1kHz at 5mV/1kHz |
| Noise floor | 88 dB (A weighted) |
| THD | <0,05% |
| RIAA deviation | deviation max. 0.5 dB/ 20 Hz - 20 kHz |

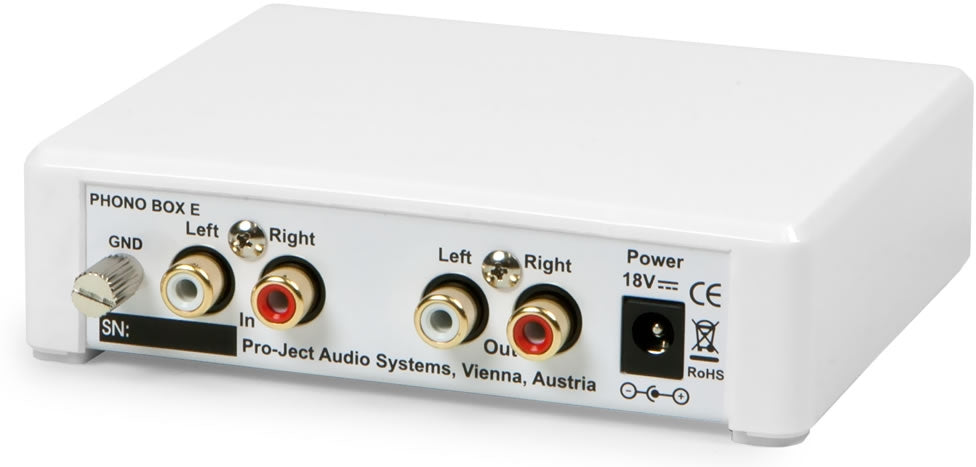

| Input | 1 pair RCA socket |
| Output | 1 pair RCA socket |
| Outboard power supply | 18 V/500 mA DC; 220 - 240 V, 50 Hz |
| Standby power consumption | < 1 watt |
| Power consumption | 20 mA DC |
| Dimension W x H x D (D with sockets) | 120 x 32 x 100 (106) mm |
| Weight | 269 g without power supply |
