We all live in a yellow submarine!
In April 1968, the unique and very special Beatles movie „Yellow Submarine“ came into the cinemas. It was one of their most famous pieces in history. Now, fifty years later Apple Corps Ltd and Universal Music Group are reintroducing this movie, restored in 4k digital resolution. In order to offer Beatles fans of all ages the enjoyment of watching this one of a kind experience. The movie will be released across many cinemas in Northern America with remixed 5.1 stereo surround sound.

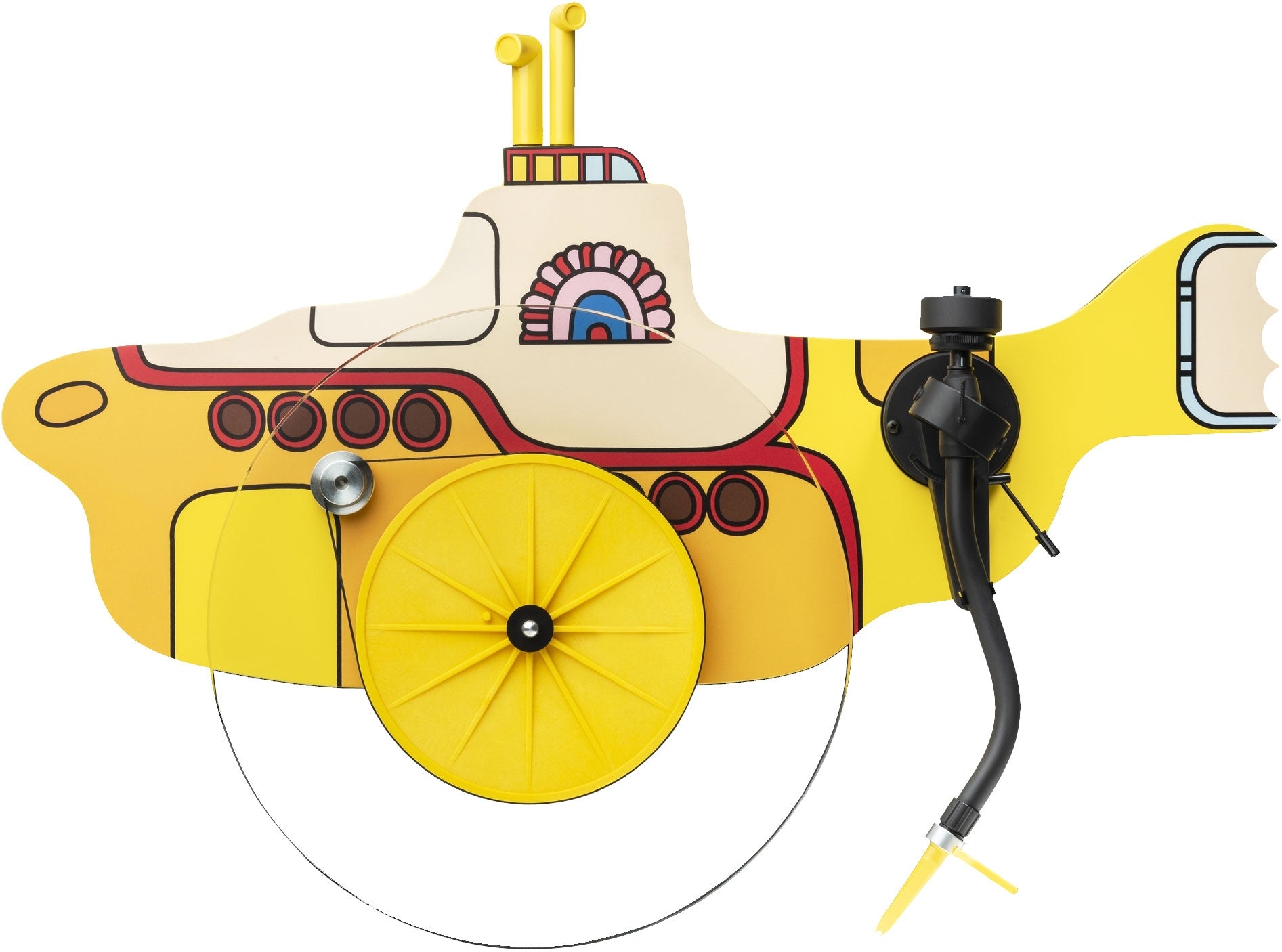

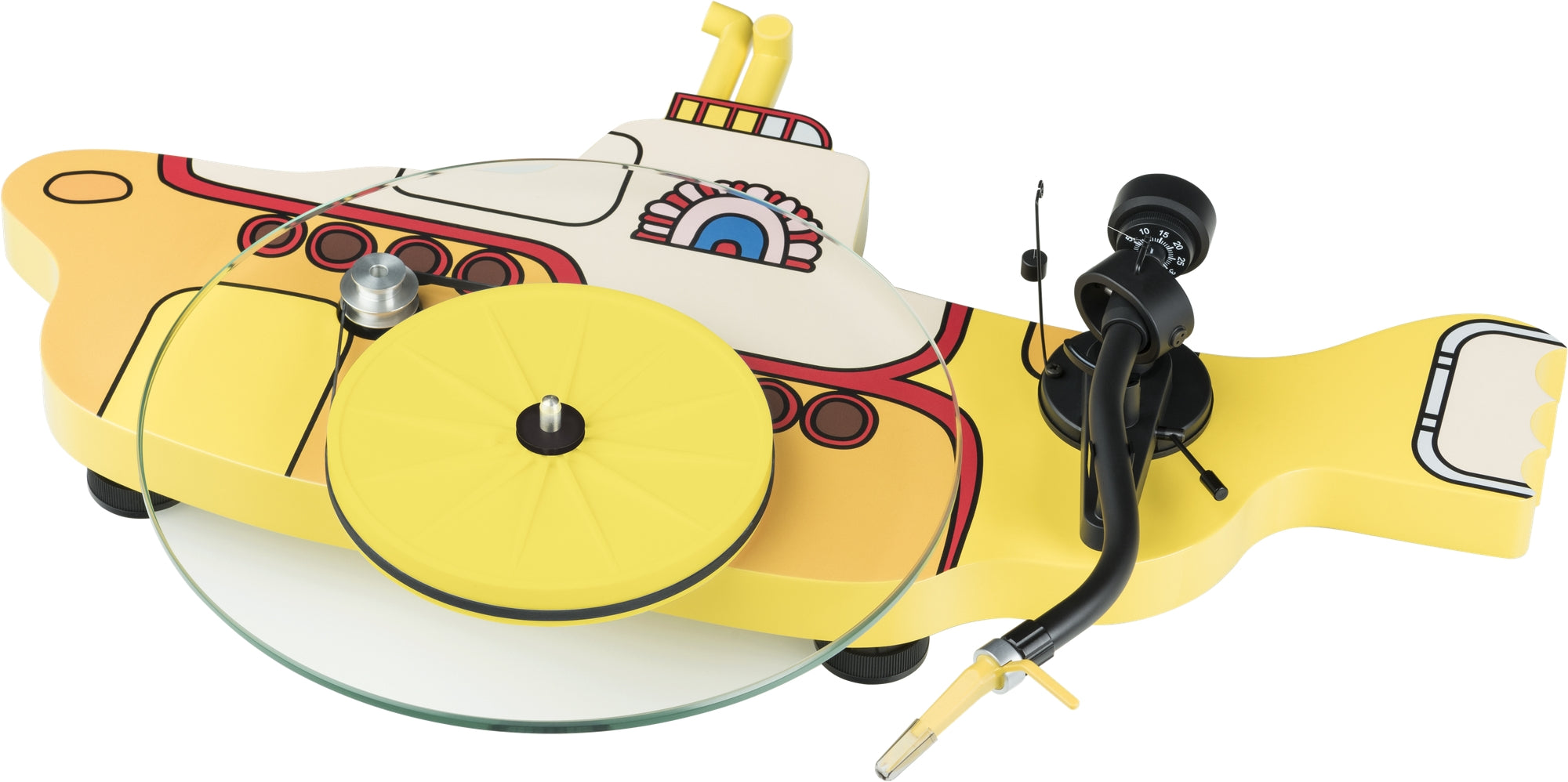

The Beatles Yellow Submarine turntable
As big fans of the work of the beatles, we are proud to introduce this collaboration and number five of our Beatles series. The Yellow Submarine turntable is the most distinctive of the five yet. With its unique shape it is sure to attract many looks and loves by Beatles fans. By adding a glass platter to the turntable we made sure that this masterpiece won‘t get covered and can be enjoyed in full glory.
The supplied cartridge comes again from our long time partner Ortofon. Especially for this edition Ortofon have created a yellow Concorde cartridge, called Sonar. The S-shaped aluminium arm is adding a touch of harmony to the sound. Special decoupling feet make sure that the turntable is safely standing on its ground without worrying about vibrations.
Features
- Unique special Yellow Submarine look
- Belt-drive with synchronous motor
- Ortofon Concorde quality pickup
- Vibration absorbing feet
- Glass platter
- Rigide MDF chassis
- Highly precise and light aluminium tonearm
- Saphire-tonearm bearing
- Gold-plated contacts
- Silicon belt with optimum dampening
- Hand-made in Europe
Technical Specifications
Speed | 33, 45 (manual speed change) |
Principle | Belt drive |
Speed variance | 33: 0.60% 45: 0.50% |
Wow & Flutter | 33: 0.19% 45: 0.17% |
Platter | 300 mm glas with felt mat |
Main bearing | Brass with teflon plate |
Tonearm | 8.6” aluminium |
Effective arm length | 218.5 mm |
Output voltage at 1000 Hz, 5cm/sec | 5 mV |
Frequency response | 20-20.000 Hz ± 1.5 dB |
Stylus type | Spherical |
Internal inductance | 450 mH |
Recommended load restistance | 47 kOhm |
Recommended load capacitance | 200-500 pF |
Cartridge weight | 19g |
Overhang | 18.5 mm |
Effective tonearm mass | 6.0 g |
Counterweight for mass | 2 - 5.0 g |
Tracking force, recommended | 1,75g (17,5mN) |
Power consumption | 4.5 Watt max |
Dimensions | 500 x 120 x 400 mm (WxHxD) |
Weight | 4.5 kg net |
