ROTEL A11MKII INTEGRATED AMPLIFIER

Vendor

ROTEL

Regular price
$1,199.00
Sale price
$1,199.00
Regular price
Sold out
Unit price
per
Tax included.


A11MKII

The A11MKII Integrated Amplifier delivers the ideal combination of power and connectivity for anyone seeking to elevate their listening experience.

Constructed around a massive Rotel-built toroidal power transformer, the A11MKII delivers 50 Watts per channel of Class A/B power into 8 ohms supporting analog, digital and Moving Magnet Phono stage inputs.

Power 2 x 50 Watts of robust Class AB power, 8 Ohms

Remote ControlIncludes remote control

TurntableMoving Magnet Phono input for turntable connection

BluetoothBluetooth with aptX™ HD and AAC

IC Texas Instruments premium 32-bit/384kHz Digital to Analog Converter



Engineered with care.


Dimensions (W × H × D)
430 x 73 x 347 mm
17” x 2 7/8” x 13 5/8”

Front Panel Height
60 mm / 2 3/8”

Power Requirements
230V, 50Hz

Power Consumption
150W

Standby Power Consumption
<0.5W

Net Weight
6.8kg (15lbs.)

BTU Rating (4Ω, 1/8th power)
450 BTU/h

Components


Power Output
50W/Ch (8Ω)
62W/Ch (4Ω)

Total Harmonic Distortion (THD)
<0.03%

Frequency Response
Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB
Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB

S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 90dB
Phono Input: 85dB




 Product Description

The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.

Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

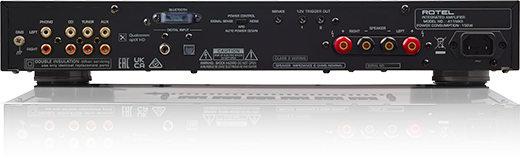

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

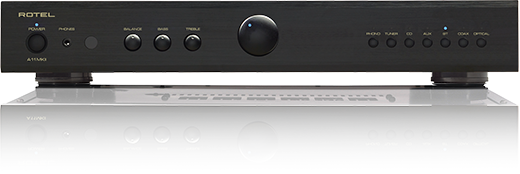

The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.

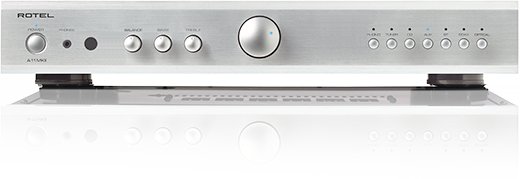

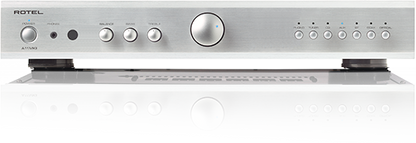

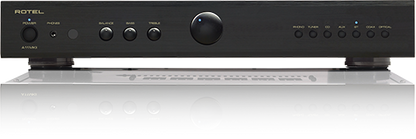

The A11MKII is available in both black and silver colors.



More Specifications
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%

Damping Factor
120

Input Sensitivity
Line Level Inputs: 130mV
Phono Input (MM): 1.6mV

Input Impedance
Line Level Inputs: 45kΩ
Phono Input (MM): 43kΩ
Input Overload
Line Level Inputs: 4V
Phono Input: 50mV


Tone Controls
±6dB at 100Hz / 10kHz
