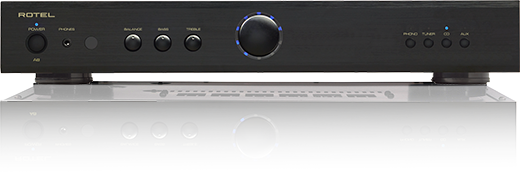

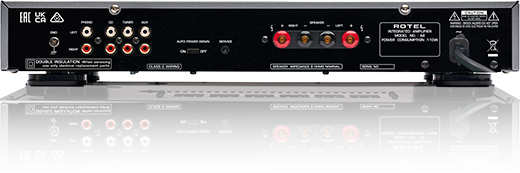

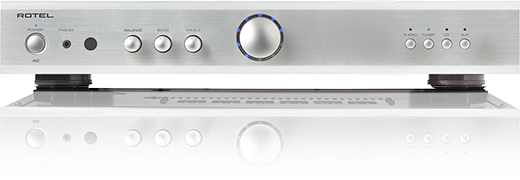

A8
The A8 Integrated Amplifier blends power, size, efficiency, and value for music lovers yearning to enhance their musical journey. Engineered with a robust Rotel-crafted toroidal transformer driving 40 Watts per channel of Class A/B potency into 4 ohms featuring three RCA analog inputs and a Moving Magnet Phono stage tailored for vinyl enthusiasts.
2 x 40 Watts of robust
power, 4 Ohms
Includes remote control
Moving Magnet Phono
input for turntable
connection
Class AB amplifier design
High current power supply
Engineered with care.
Dimensions (W × H × D)
430 × 73 × 347 mm
17” x 2 7/8” x 13 5/8”
17” x 2 7/8” x 13 5/8”
Front Panel Height
60 mm (2 3/8”)
Power Requirements
230 V, 50 Hz
Power Consumption
110 W
Standby Power Consumption
<0.5 W
Net Weight
5.8 kg, 12.8 lbs
BTU Rating (4Ω, 1/8th power)
340 BTU/ h
Power Output
30 W/ Ch (8 Ω)
40 W/ Ch (4 Ω)
Total Harmonic Distortion (THD)
<0.03%
Frequency Response
Line Level Inputs: 10 Hz - 100k Hz, -0.5 dB, +0 dB
Phono Input: 20Hz - 20k Hz, -0.5 dB, +0 dB
S/N Ratio (IHF "A" Weighted)
Line Level Inputs: 90 dB
Phono Input: 80 dB
