ROTEL DT-6000 DIAMOND SERIES STEREO DAC TRANSPORT

Vendor

ROTEL

Regular price
$1,749.00
Sale price
$1,749.00
Regular price
$3,499.00
Sold out
Unit price
per
Tax included.

The Rotel DT-6000 DAC Transport celebrates 60-Years of performance synonymous with the brands Japanese heritage.

PC-USB, Optical, Coaxial, and included tray loading CD Player provide the ultimate flexibility for your favorite sources rendering the audio with unprecedented detail and immersive sound stage.




Rotel’s Diamond Series DT-6000 DAC Transport celebrates 60-Years of performance, passion, and value synonymous with the brands Japanese heritage.

An 8-channel ESS Sabre ES9028PRO DAC dedicates 4 channels each to stereo outputs rendering unprecedented details with an ultra-low noise floor and immersive sound stage.

Dedicated power supplies feed critical circuits utilizing an in-house manufactured toroidal transformer with isolation techniques lowering residual noise and distortion.

The PC-USB input supports up to 32-bit/384kHz including MQA (24-bit/384kHz) and DSD (4X).  Optical and Coaxial inputs are also included supporting 24-bit/192kHz streams.

The tray loading CD utilizes Rotel’s 30-years of multi-award winning CD player design experience extracting every nuance and detail from CD collections both large and small.

Front panel controls, a back-lit IR remote and 2-line display ensure intuitive operation of the unit.

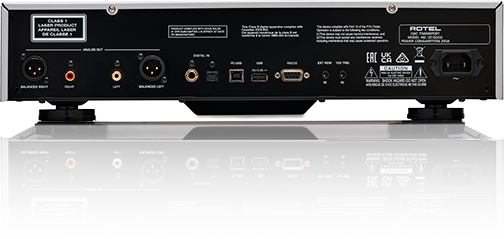

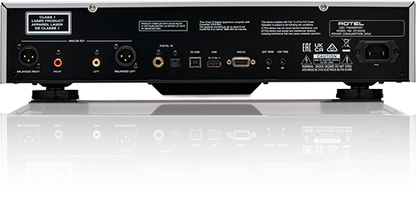

RS232, 12V trigger and external remote input ensure integration with control systems.

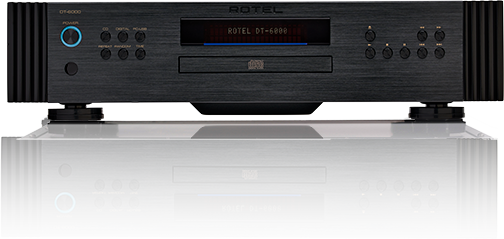

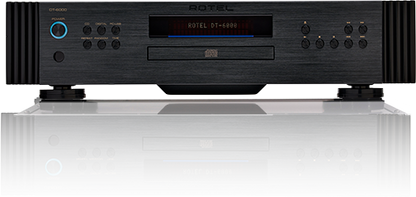

The DT-6000 is available in silver and black colors.





SPECIFICATIONS

Dimensions (W × H × D)
431 × 104 × 320mm
17" × 4" × 12.6"

Front Panel Height
2U / 88.1mm (3.5")

Power Requirements
230V, 50Hz

Power Consumption
25W

Standby Power Consumption
<0.5W

Net Weight
8.11kg (17.88lbs.)
Total Harmonic Distortion (THD)
Optical/Coaxical Input: < 0.0007%
CD/PC-USB Input: < 0.0012%

Frequency Response
20Hz - 20kHz, +0, -0.15dB
10 Hz - 70kHz, +0, -3dB

S/N Ratio ("A" Weighted)
>115dB

Dynamic Range
>99dB

Digital to Analog Converters
ESS 32-Bit/768kHz DAC

Channel Balance
± 0.5dB

Channel Separation
>115dB @ 10kHz

Intermodulation Distortion
<0.0012%

Analog Output Level
Unbalanced (RCA): 2.1V
Balanced (XLR): 4.3V

Analog Output Impedance
Unbalanced (RCA): 10Ω
Balanced (XLR): 20Ω

Input Sensitivity
0dBfs / 75 Ohms
Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 32-bit/384kHz)*
*Driver installation required
Support native DSD (up to 11.2M) and DoP
Support MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
