The RA-1592 Integrated Amplifier is exactly that component. It leverages the strengths of our award winning RC-1590 preamplifier and RB-1582 MKII power amplifier in a sleek single chassis design. With a powerful 200 watt per channel Class AB amplifier using high performance audio grade components, the RA-1592 can effortlessly drive large speaker systems. The impressive Rotel manufactured toroidal transformer is a key element in the power supply design which also includes custom slit-foil storage capacitors and a dual-monoblock topology. All of this helps to ensure the amplifier performance stands up to even the most complex music and real world playback conditions.

To complement the amplifier section, the RA-1592’s preamplifier incorporates the superb 32-bit/768kHz AKM digital-to-analogue converter (DAC) and analogue stages of the highest quality. The DAC and surrounding circuitry supports a vast array of source inputs including DSD capable PC-USB (24-bit/192kHz), 3 coaxial, 3 optical, integrated aptX® Bluetooth and front mounted USB iPod input. In recognition of the faithful analogue music lovers, there is a phono stage input (MM), XLR balanced input and 3 analogue RCA source inputs.

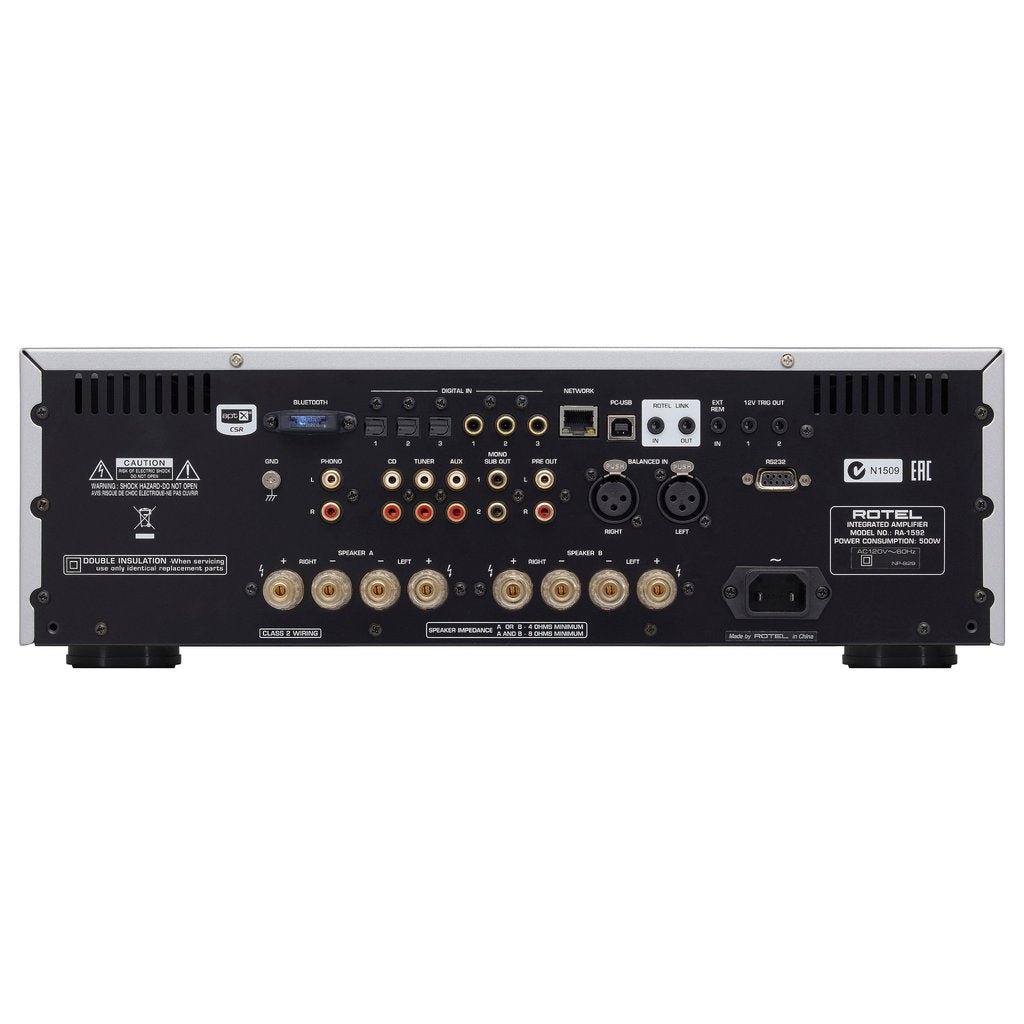

User selectable A-B speaker outputs with 5-way binding posts, RCA pre-output and dual subwoofer outputs provide the ultimate flexibility in installation. The amplifier protection circuits monitor DC offset, overcurrent, short circuit and temperature to protect both the electronics and attached speakers.

Custom integration features include RS232 and Ethernet IP control, 2 trigger outputs, remote IR input and automated digital signal sense power control for easy integration with streaming sources and control systems.

The RA-1592 is the finest integrated amplifier yet in Rotel’s 55 year history of producing high performance audio components.



CONTINUOUS POWER OUTPUT
200W/Ch (All channels driven, 8Ω)



TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) 0.03%



FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 90kHz ±2dB
Phono Input: 20Hz - 20kHz ±0.5dB



S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 102dB
Phono Input: 80dB



DAMPING FACTOR
600



SPEAKER IMPEDANCE
4Ω minimum



INPUT SENSITIVITY
Line Level Inputs (RCA): 340mV
Line Level Inputs (XLR): 540mV
Phono Input (MM): 5.2mV



INPUT IMPEDANCE
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ



INPUT OVERLOAD
Line Level Inputs (RCA): 3.5V
Line Level Inputs (XLR): 5.5V
Phono Input: 52mV



PREOUT LEVEL
1.9V



OUTPUT IMPEDANCE
100Ω



TONE CONTROLS
±12dB at 100Hz / 10kHz



COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)



PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 32/384)
DSD and DoP support



DIMENSIONS (W × H × D)
431 × 144 × 425mm
17" × 5.7" × 16"



FRONT PANEL HEIGHT
3U / 132.6mm (5.25")



POWER REQUIREMENTS
230V, 50Hz



POWER CONSUMPTION
500W



STANDBY POWER CONSUMPTION
<0.5W



NET WEIGHT
16.8kg (37lbs.)
