RAP-1580MKII is the ideal home theater solution delivering uncompromised performance that rivals many separates theater components supporting DTS:X and Dolby Atmos up to 7.1.4 processing bringing music and movies to life.  The integrated Class AB 140 Watt amplifier is driven by a massive Rotel manufactured toroidal transformer with exceptional energy and control.







The array of 6 audiophile grade Wolfson 24-bit/192kHz Digital-to-Analog converters with hand selection of all critical audio components deliver extraordinary detail and resolution with an extremely low noise floor.

Dirac Live LE and included USB measurement microphone delivers unrivaled room correction with improved staging, better clarity and deeper, tighter bass ensuring the RAP-1580MKII delivers optimal performance in any setting.

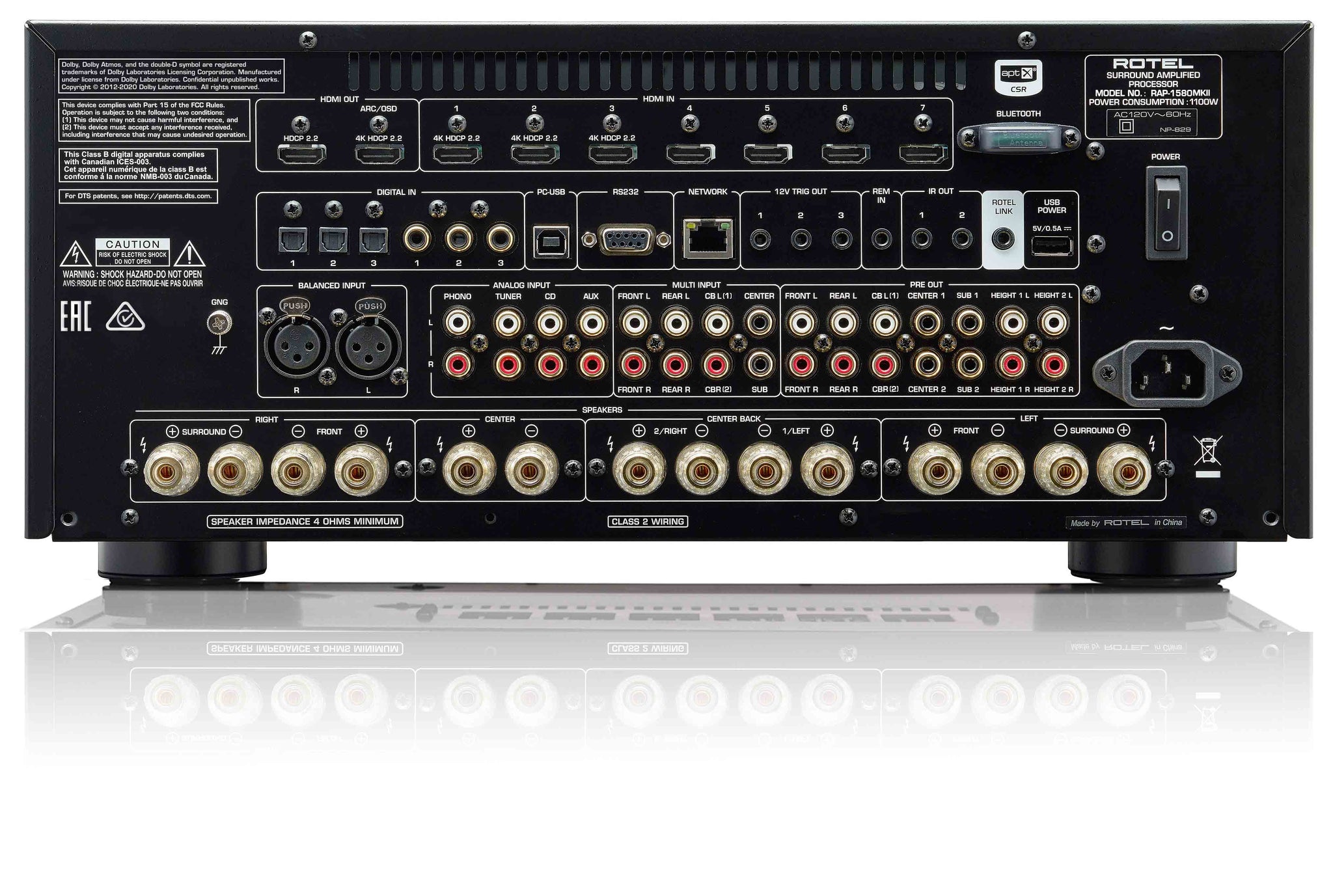

The 8 x 2 HDMI connections support 4K video with HDCP 2.2 HDR supported on 3 of these inputs and both outputs.  The RAP-1580MKII includes a vast array of audio inputs including analog, digital, PC-USB with 24b/192k, apt-X wireless Bluetooth, XLR, Moving Magnet Phono stage and front panel iOS USB.

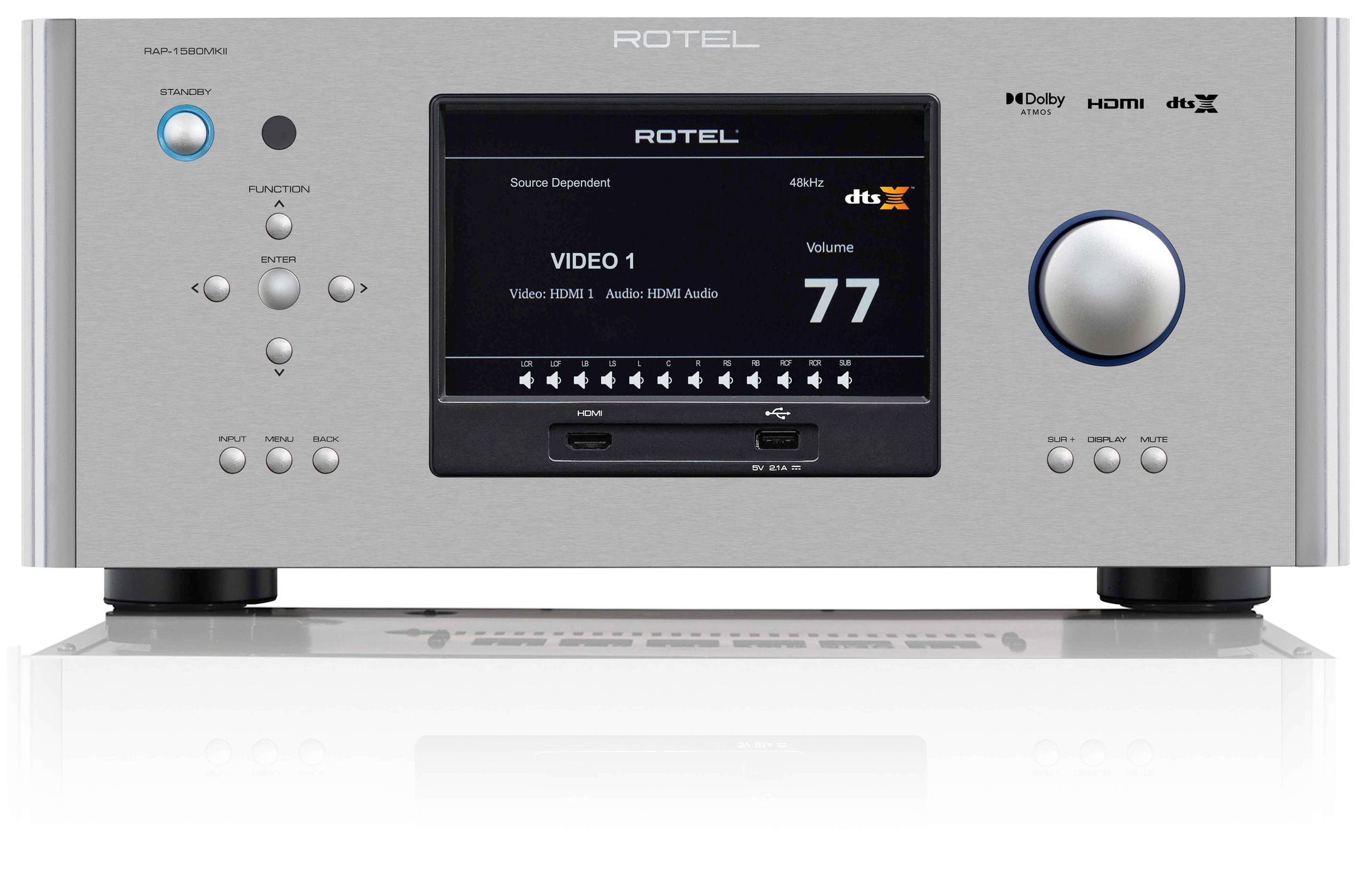

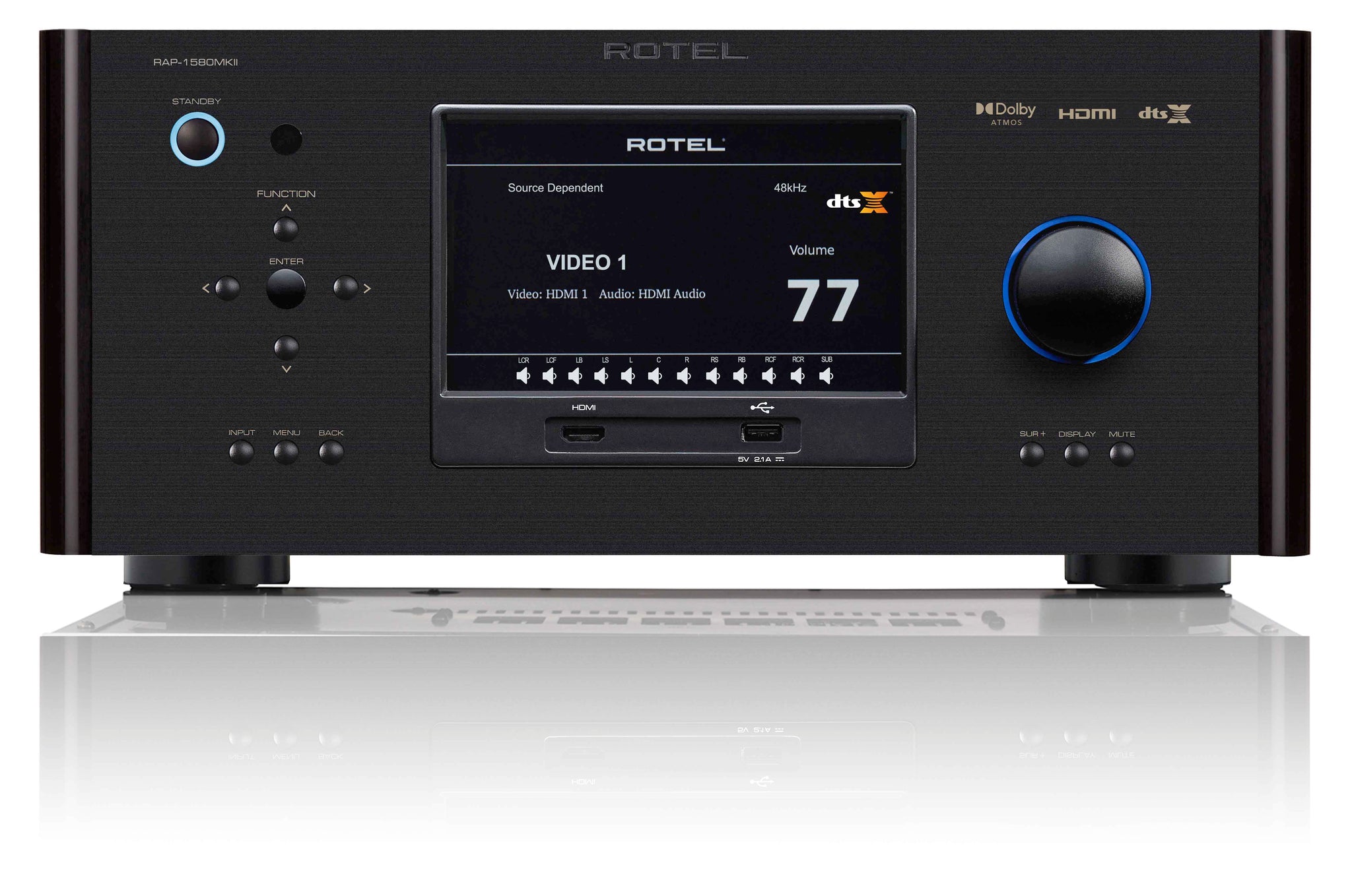

A front panel graphic display provides easy adjustments of all configuration parameters.  RS232 and Ethernet connections ensures connectivity with all popular control systems.

Rotel's RAP-1580MKII is simple to operate, powerful, flexible, and refined welcomed in any home theater setting.



SPECIFICATIONS

Dimensions (W × H × D)
431 × 192 × 470mm
17" × 7.55" × 18.5"

Front Panel Height
4U / 177mm (7")

Power Requirements
230V, 50Hz

Power Consumption
1100W

Standby Power Consumption
0.5W

Net Weight
22.8kg (50.27lbs.)

BTU Rating
2800 BTU/h
Continuous Power Output
200W/Ch (2 channels driven, 4Ω)
140W/Ch (7 channels driven, 4Ω)
135W/Ch (2 channels driven, 8Ω)
100W/Ch (7 channels driven, 8Ω)

Total Harmonic Distortion (THD)
<0.05%

Frequency Response
Phono Input: 20Hz - 20kHz, ±1dB
Analog Bypass: 10Hz - 100kHz, ±1dB
Digital Inputs: 20Hz - 20kHz, ±0.5dB

S/N Ratio (IHF "A" Weighted)
Analog Bypass: 100dB
Digital Inputs: 96dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.05%

Damping Factor (1kHz, 8 ohms)
230

Input Sensitivity
Line Level Inputs (RCA): 300mV
Line Level Inputs (XLR): 600mV
Phono Input (MM): 3.85mV

Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Phono Input (MM): 47kΩ
Preamp Output Level
1.2V

Digital Audio
LPCM (up to 192kHz, 24-bit)
Dolby® Surround, Dolby®
TrueHD, Dolby® Atmos,
DTS-HD Master Audio, DTS:X
Dirac Live LE

HDMI Inputs/Outputs
8 inputs with 3 supporting HDCP 2.2
2 outputs supporting HDCP 2.2
Audio Return Channel
Video Input Resolutions
480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p 24Hz,
3D, 4K, UHD

Video Output Resolution
480i/576i, 480p/576p, 720p
1080i, 1080p, 1080p 24Hz,
3D, 4K, UHD

Color Space Support
sRGB, YCbCr 4:2:2, YCbCr 4:4:4

Deep Color Support
24-bit, 30-bit, 36-bit
