ROTEL RC-1590MKII STEREO PRE-AMPLIFIER

Vendor

ROTEL

Regular price
$2,999.00
Sale price
$2,999.00
Regular price
Sold out
Unit price
per
Tax included.

Reference audio systems deserve reference audio equipment. Rotel’s RC-1590MKII reference preamplifier renders audio with natural expression, an open sound stage and dynamic clarity. Analog, Digital, Bluetooth and Turntable sources are supported by a bespoke acoustic tuning process inviting you to bring your favorite music allowing the RC-1590MKII to immerse you.



Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that -- a reference preamplifier rendering analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

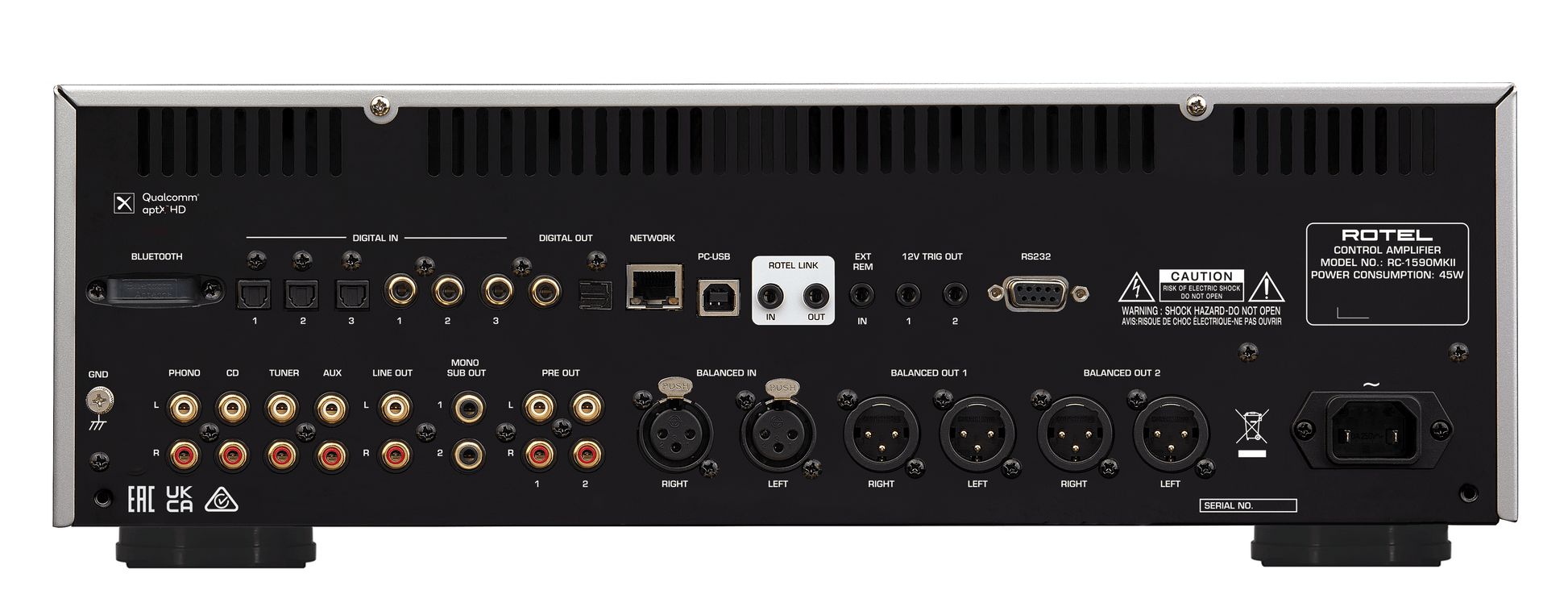

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.

Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.



 SPECIFICATIONS

Dimensions (W × H × D)
431 × 144 × 348mm
17" × 5.7" × 13.9"

Front Panel Height
3U / 132.6mm (5.25")

Power Requirements
230V, 50Hz

Power Consumption
45W

Standby Power Consumption
<0.5W

Net Weight
10.1kg (22.27bs.)

BTU Rating
78 BTU/h
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.002%

Frequency Response
Line Level Inputs: 10Hz - 100kHz (+0dB, +0.1dB)
Digital Inputs: 20Hz - 20kHz (0±0.5dB, Max)
Phono Input: 20Hz - 20kHz (+0.3dB, -0.2dB)

S/N Ratio (IHF "A" Weighted)
Line Level Inputs (RCA): 117dB
Line Level Inputs (XLR): 115dB
Digital Inputs: 108dB
Phono Input: 80dB
Intermodulation Distortion
(60Hz:7kHz, 4:1)
<0.002%

Input Sensitivity
Line Level Inputs (RCA): 150mV
Line Level Inputs (XLR): 250mV
Digital Inputs: 0dBFs
Phono Input (MM): 2.5mV

Input Impedance
Line Level Inputs (RCA): 100kΩ
Line Level Inputs (XLR): 100kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

Input Overload
Line Level Inputs (RCA): 4V
Line Level Inputs (XLR): 5.5V
Phono Input: 64mV

Output Level
Unbalanced (RCA): 1V
Balanced (XLR): 2V

Channel Separation
Line Level Inputs (RCA): >85dB
Line Level Inputs (XLR): >75dB
Phono Input: >85dB

Tone Controls
±10dB at 100Hz / 10kHz
Preout Level
1.65 V (at - 20 dB)

Coax/Optical Digital Input Signals
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24-bit/96kHz)
USB Audio Class 2 (up to 32-bit/384kHz)
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
Roon Tested
