Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music.
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

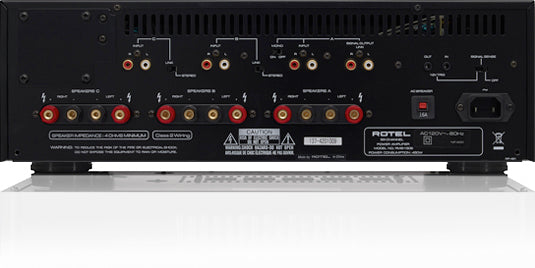

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
SPECIFICATIONS
Dimensions (W × H × D)
431 × 144 × 424mm
17" × 5.7" × 16.7"
17" × 5.7" × 16.7"
Front Panel Height
3U / 132.6mm (5.25")
Power Requirements
120V, 60Hz
Power Consumption
450W
Standby Power Consumption
2.6W
Net Weight
15.3kg (34lbs.)
BTU Rating (4Ω, 1/8th power)
1680 BTU/h
Continuous Power Output
50W/Ch (All channels driven, 8Ω)
80W/Ch (All channels driven, 4Ω)
Total Harmonic Distortion (THD)
(20Hz–20kHz) <0.03%
Frequency Response
10Hz - 100kHz ±1dB
S/N Ratio (IHF "A" Weighted)
115dB
Gain
26dB
Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%
Damping Factor
>200
Speaker Impedance
4Ω minimum
Input Sensitivity
1V
Input Impedance
20kΩ
