Dual Concentric™ high frequency     51 mm (2”) Aluminium alloy dome. Alnico magnet system with Pepperpot Waveguide™

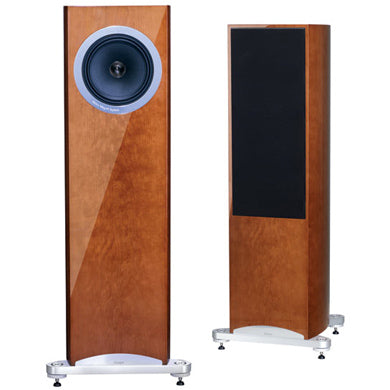

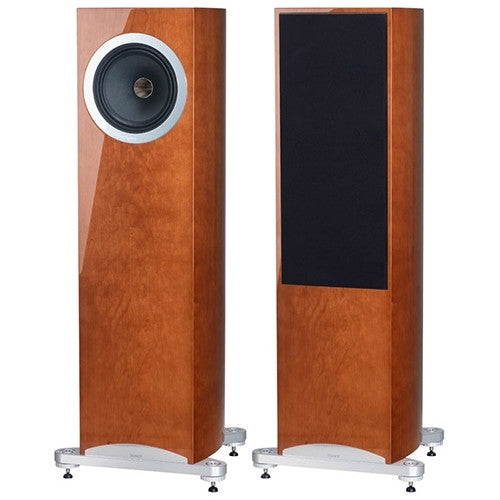

The flagship of the Definition range, the Definition DC10A is a loudspeaker of pure refinement that embodies Tannoy’s core tenets of musical reproduction: A single point source Alnico Dual Concentric™ driver, straight path fully Deep Cryogenically Treated crossover and Tannoy’s signature birch-ply cabinet construction. The DC10A delivers the engaging and articulate sound of Tannoy’s classic Prestige models with the luxurious contemporary style of the Definition series. The Definition DC10A is a thoroughly modern loudspeaker, hand built and rich with traditional values.

• Dual Concentric™ low frequency 250 mm (10”) treated paper pulp cone with twin roll impregnated fabric surround.
• 52 mm (2”) edge wound voice coil, Alnico magnet system
• Recommended amplifier power -(30–300 Watts RMS)
• Continuous power handling -(150 Watts RMS)
• Peak power handling -(600Watts)
• Sensitivity -93dB(2.83 Volts @ 1m)
• Nominal Impedance  -8 Ohms
• Frequency response -28Hz–22kHz(-6 dB)
• Dispersion -90(degrees conical)
