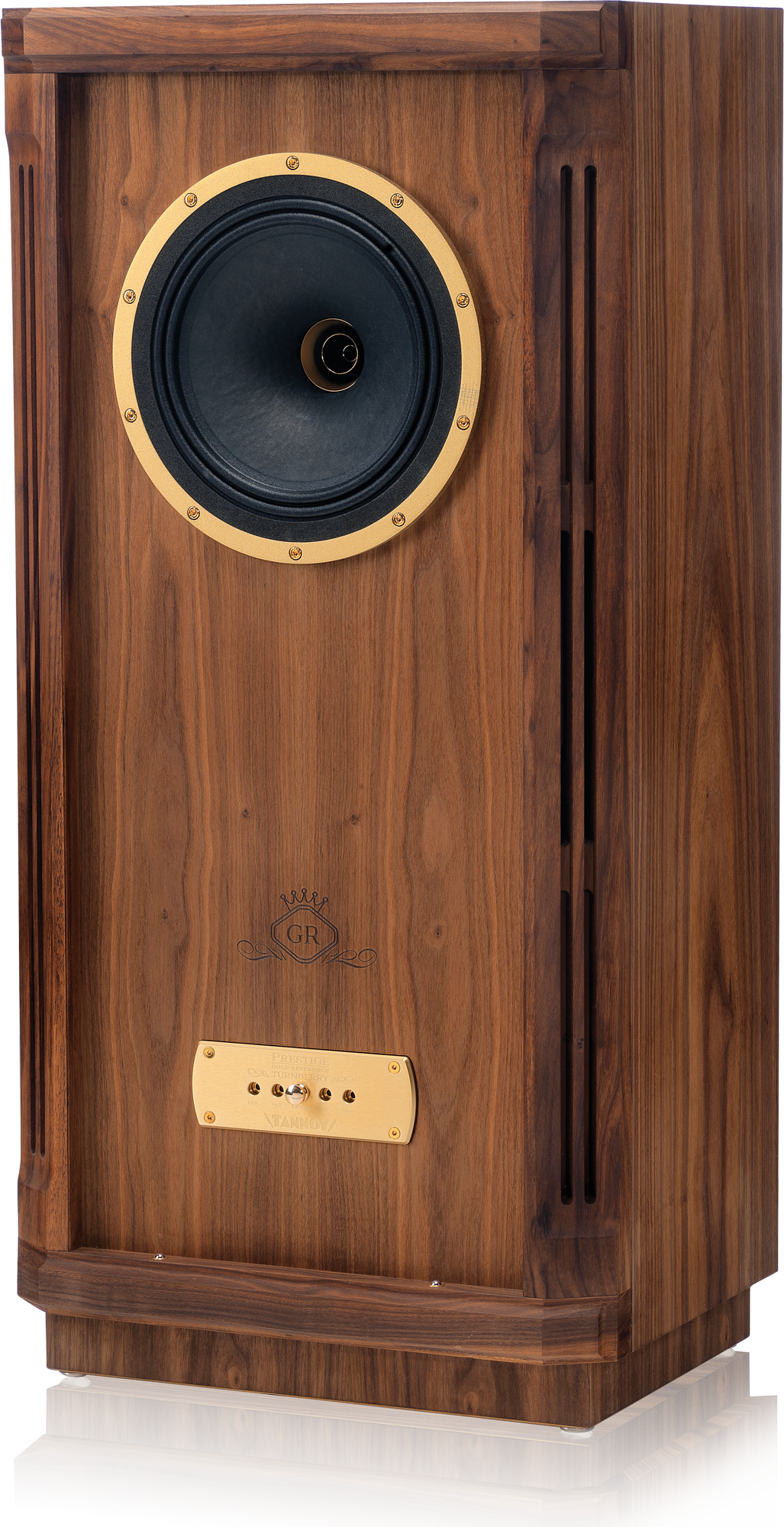

Conveying all the power and musical articulation of the new Gold Reference Dual Concentric driver yet housed in a more compact 100 litre cabinet, Turnberry GR brings Prestige performance to smaller rooms. The 10in Gold Reference Dual, unique to the Turnberry GR, uses a new paper pulp cone material with HE twin roll fabric surround and 1.3in aluminium alloy dome tweeter with Tulip WaveGuide. Distributed Port loading ensure prodigiously deep LF response and dynamic scale that belies the Turnberry GR’s dimensions.
The hand-crafted plywood cabinet, finished in oiled real wood veneers and machined trim, is extensively braced to ensure low coloration and greater control. The easy to drive load and very high efficiency afford a wide range of partnering amplification from single ended triode to high power solid state designs. Classic looks, contemporary materials and the power of the Gold Reference Dual ensure Turnberry GR is as aesthetically pleasing as it is musically engaging.
SPECIFICATIONS
| Performance |
|
|
| Recommended amplifier power |
|
30 - 180 Watts RMS |
| Frequency response |
|
34 Hz - 25 kHz (-6 dB) |
| Sensitivity |
|
93 dB @ (2.83 Volts @ 1 m) |
| Drive Units |
|
|
Dual Concentric high
frequency |
|
33 mm (1.3”) aluminium alloy dome with Tulip Waveguide |
| Dual Concentric low frequency |
|
250 mm (10”) treated paper pulp cone with HE twin roll fabric surround. 52 mm (2”) edge wound voice coil |
| Cabinet |
|
|
| Enclosure type |
|
Distributed Port |
Dimensions H x W x D
(excl grille) |
|
950 x 456 x 336 mm
(37.5 x 18 x 13.25”) |
| Volume |
|
100 Litres (3.5 cu.ft) |
| Weight |
|
30 kg (66 lbs) |
