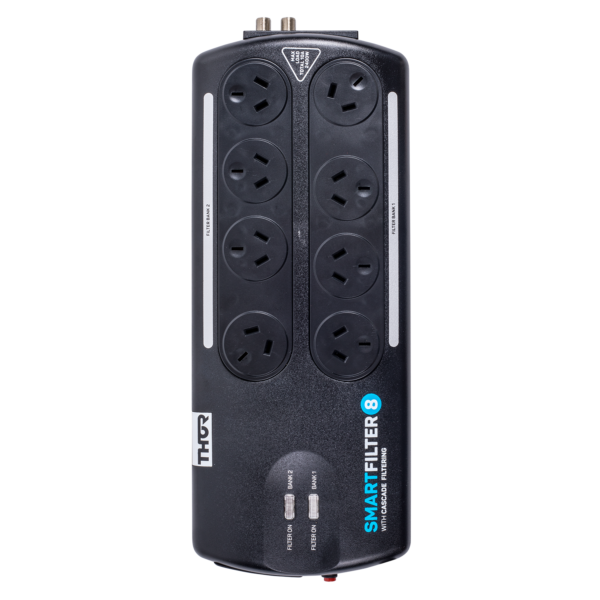

THOR A12BF 8 WAY SURGE PROTECTION BOARD

THOR A12BF 8 WAY SURGE PROTECTION BOARD

THOR

$269.95
$269.95
Sold out
Tax included.



B8+ – 8 Way Surge Protector with Advanced Filtration

SMART TECHNOLOGY POWER PROTECTION AND FILTRATION

- POWER PROTECTION


     - NOISE FILTRATION



    - REACTION TIME





    - WARRANTY



    •  8 PROTECTED OUTLETS
    •  2 ISOLATED BANKS
    •  PAY/TV PROTECTION
    •  DATA/VOICE PROTECTION
    •  LARGE PLUG ADAPTORS
    •  1.8M CABLE LENGTH
    •  FIRE RETARDANT
    • 6 YEAR REPLACEMENT WARRANTY



    TECHNICAL SMARTS

    • Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
    • Supply voltage 240/V AC 50/Hz
    • Maximum current rating 10amps/2400 W (VA)
    • Clamping voltage 300 V AC
    • Reaction time less than 1 nanosecond
    • Maximum transient spike impulse current 196,000 amps (equivalent to 49,000 amps using UL1449 standard)
    • Maximum energy dissipation 5868 Joules (equivalent to 2100 Joules using UL1449 standard)
    • Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
    • EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits
    • Number of multi-stage filter banks: 2
    • Number of isolated banks: 2
    • Number of dedicated outlets: 4+4
    • Total number of protected AC outlets: 8
    • RJ 45 data protection: 1 in and 2 out
    • AV/TV Connection: In and out
    • Cable TV ‘F’ type connection: In and out
    • Earth potential rise protection
    • Earth leakage range less than 1 milli amp
    • Operating conditions: Indoor/AC mains
    • Operating temperatures: -10C/+60C
    • Cable length: 1.8m
    • Model No: B8+



    INSIDE THE BRAIN

    • There are 4 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 2 x AC Banks (2 x 4 outlets) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.
