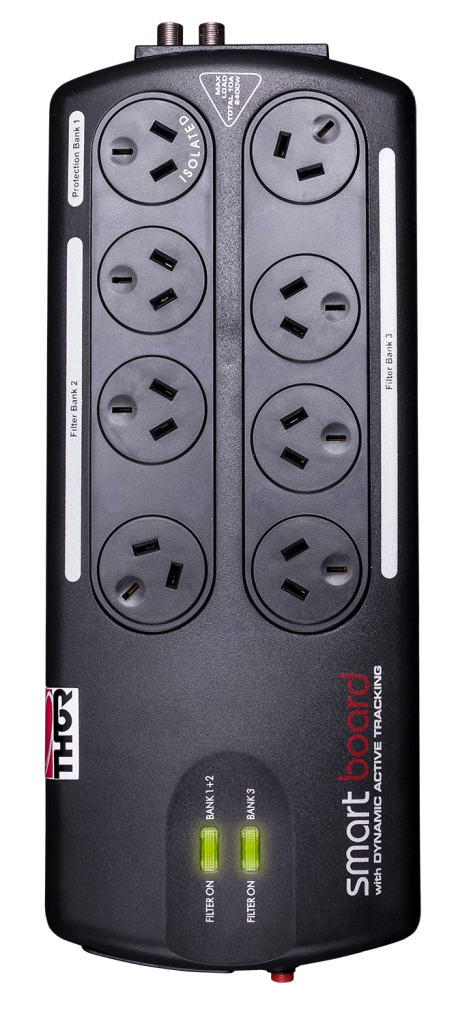

THOR A12BF 8 WAY SURGE PROTECTION BOARD

THOR A12BF 8 WAY SURGE PROTECTION BOARD

THOR

$349.95
$349.95
Sold out
Tax included.





A12BF – 8 Way Surge Protector with Elite Filtration

Ultimate Power Protection AND Filtration

- POWER PROTECTION


     - NOISE FILTRATION



    - WARRANTY





     - REACTION TIME

    • 8 PROTECTED OUTLETS 8 PROTECTED OUTLETS
    • PAY TV PROTECTION PAY TV PROTECTION
    • 1.8M CABLE LENGTH 1.8M CABLE LENGTH
    • 3 ISOLATED BANKS 3 ISOLATED BANKS
    • DATA/VOICE DATA/VOICE
    • FIRE RETARDENT FIRE RETARDENT
    • AERIAL PROTECTION AERIAL PROTECTION
    • 2 LARGE PLUG ADAPTORS 2 LARGE PLUG ADAPTORS
    • 6 YEAR REPLACEMENT WARRANTY 6 YEAR REPLACEMENT WARRANTY



    TECHNICAL SMARTS

    • Product Dimensions: 350mm(L) x 45mm(H) x 140mm(W)
    • Supply voltage 240/V AC 50/Hz
    • Maximum current rating 10amps/2400 W (VA)
    • Clamping voltage 275VAC
    • Reaction time less than 1 nanosecond
    • Maximum transient spike impulse current 208,000 amps (equivalent to 52,000 amps using UL1449 standard)
    • Maximum energy dissipation 6080 Joules (equivalent to 2050 Joules using UL1449 standard)
    • Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth)
    • EMI/RFI noise reduction filter type Dynamic Active Tracking™ incorporating 38 separate protection components in 3 cascading circuits
    • Number of multi-stage filter banks: 2
    • Number of isolated banks: 3
    • Number of dedicated outlets: 4+3+1
    • Total number of protected AC outlets: 8
    • RJ 45 data protection: 1 in and 2 out
    • AV/TV Connection: In and out
    • Cable TV ‘F’ type connection: In and out
    • Earth potential rise protection
    • Earth leakage range less than 1 milli amp
    • Operating conditions: Indoor/AC mains
    • Operating temperatures: -10C/+60C
    • Cable length: 1.8m
    • Model No: A12BF



    INSIDE THE BRAIN

    • SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other  filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.



    • There are 5 separate earth lines which is a hum/loop reducing feature. This feature stops component cross talk and ensures isolation between the 3 x AC Banks (1 x 1 outlet; 1 x 3 outlet; 1 x 4 outlet) as well as the antenna/F type and Data connections. True circuit isolation ensures best performance for all connected equipment.
