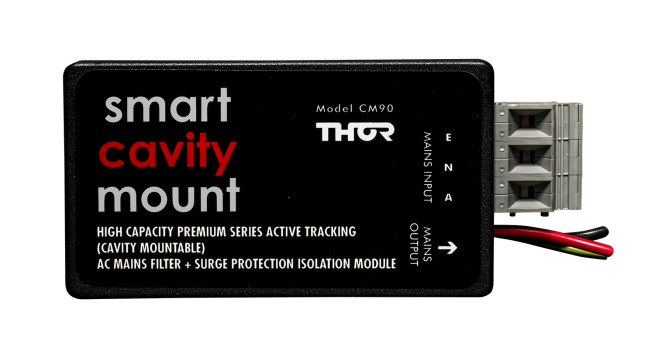

THOR CM90 SMART CAVITY MOUNT MODULE

THOR CM90 SMART CAVITY MOUNT MODULE

THOR

$399.95
$399.95
Sold out
Tax included.



CM90 – Elite Filtration & Surge Protection Cavity Mount Module



- ACTIVE FILTER


     - JOULES



    - REACTION SPEED



    •  DYNAMIC ACTIVE TRACKING FILTER
    •  SPIKE/SURGE PROTECTION
    •  AVAILABLE 16A/ELECTRICIAN TO INSTALL
    •  MANUFACTURED IN AUSTRALIA
    •  6 YEAR REPLACEMENT WARRANTY



    TECHNICAL SMARTS

    • Product Dimensions: 140mm x 65mm x 30mm
    • Supply voltage 240/V AC 50Hz
    • Maximum current rating 16amps/3840 W (VA)
    • Reaction Speed less than 1 nanosecond
    • Clamping Voltage 275V
    • EMI/RFI Noise Reduction Filter Types - Dynamic Active Tracking (SmartBrain Active Filter)
    • Maximum transient spike impulse current (Amps) 45,500 amps
    • Maximum Energy Dissipation 1330 Joules
    • Protected AC Incorporating 32 separate protection components
    • Protection Modes on all 3 conductors Active/Neutral/Earth
    • Earth Leakage Range - less than 1 millis amp
    • Model No. CM90 16A



    INSIDE THE BRAIN

    • SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other  filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
