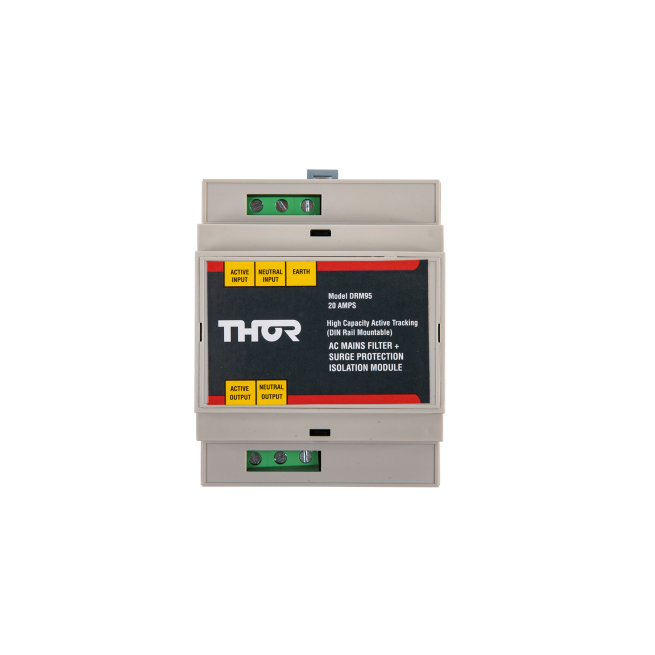

THOR DRM/20A AC MAIN FILTER PROTECTION

THOR DRM/20A AC MAIN FILTER PROTECTION

THOR

$499.95
$499.95
Sold out
Tax included.



DRM95/20A – DIN Mount Elite Filtration with High Capacity Surge Protection



- ACTIVE FILTER


     - JOULES



    - REACTION SPEED



    •  DYNAMIC ACTIVE TRACKING FILTER
    •  SPIKE/SURGE PROTECTION
    •  20A & 30A models
    •  NEEDS ELECTRICIAN TO INSTALL
    •  MANUFACTURED IN AUSTRALIA
    •  6 YEAR REPLACEMENT WARRANTY



    TECHNICAL SMARTS

    • Product Dimensions: 70mm(W) x 90mm(H) x 60mm(D)
    • Supply voltage 240/V AC 50Hz
    • Maximum current rating 20amps/4800 W (VA)
    • Clamping Voltage 275VAC
    • Maximum Transient Spike Impulse Current (AMPS) 49,000 amps
    • Maximum Energy Dissipation (Joules) 1330 Joules
    • EMI/RFI Noise Reduction Filter Type - Dynamic Active Tracking (SmartBrain Active)
    • Protected AC - Incorporating 32 separate protection components
    • Earth Leakage Range - Less than 1 milli amp
    • Operating Temperature -10C/+60C
    • Protection Modes on all 3 conductors Active/Neutral/Earth
    • Model No. DRM95 20A

    INSIDE THE BRAIN

    • SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other  filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
