THOR DRM/30A AC MAIN FILTER PROTECTION

THOR DRM/30A AC MAIN FILTER PROTECTION

THOR

$599.95
$599.95
Sold out
Tax included.

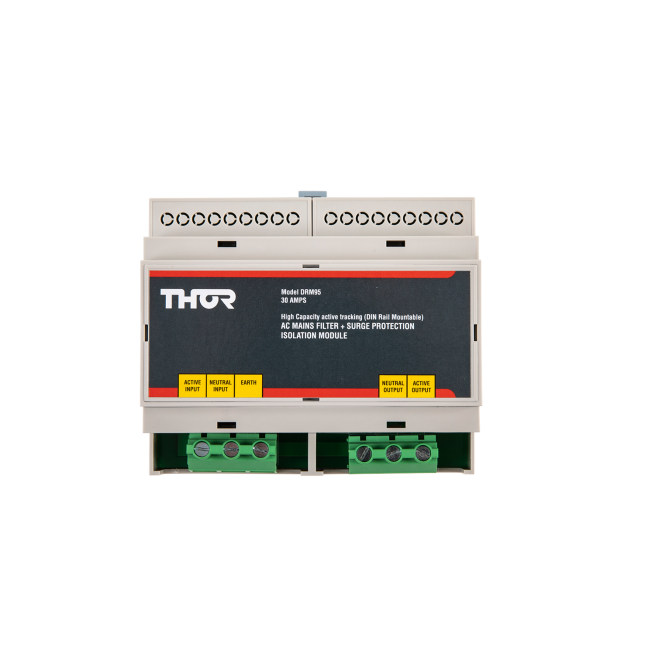

DRM95/30A – DIN Mount Elite Filtration with High Capacity Surge Protection



- ACTIVE FILTER


     - JOULES



    - REACTION SPEED



    •  DYNAMIC ACTIVE TRACKING FILTER
    •  SPIKE/SURGE PROTECTION
    •  20A & 30A models
    •  NEEDS ELECTRICIAN TO INSTALL
    •  MANUFACTURED IN AUSTRALIA
    •  6 YEAR REPLACEMENT WARRANTY



    TECHNICAL SMARTS

    • Product Dimensions: 105mm(W) x 96mm(H) x 60mm(D)
    • Supply voltage 240/V AC 50Hz
    • Maximum current rating 30amps/7200 W (VA)
    • Clamping Voltage 275VAC
    • Reaction speed less than 1 nanosecond
    • Maximum transient spike impulse current (Amps) 76,000 amps
    • Maximum Energy Dissipation (Joules) 2320 Joules
    • EMI/RFI Noise Reduction Filter Types - Dynamic Active Tracking (SmartBrain Active Filter)
    • Protected AC Incorporating 32 separate protection components
    • Earth Leakage Range Less than 1 milli amp
    • Operating Conditions Indoor/AC Mains
    • Operating Temperatures -10C/+60C
    • Protection Modes on all 3 conductors Active/Neutral/Earth
    • Enclosure - Wide din rail 105mm
    • Model No. DRM95 30A



    INSIDE THE BRAIN

    • SmartBrain has a premium filter technology called Dynamic Active Tracking. This unique filter has the best chance of "cleaning" electrical noise because it shields around 40% more frequencies when compared to other filters. It is an Active filter and can "clean" unwanted frequencies on both the upward curve and the downward curve of a sine wave (power). Most other  filters only work at the crest of the wave and therefore miss a huge section of these unwanted frequencies that can generate noise on sensitive electronic devices.
